Specification
Brand : minidodoca

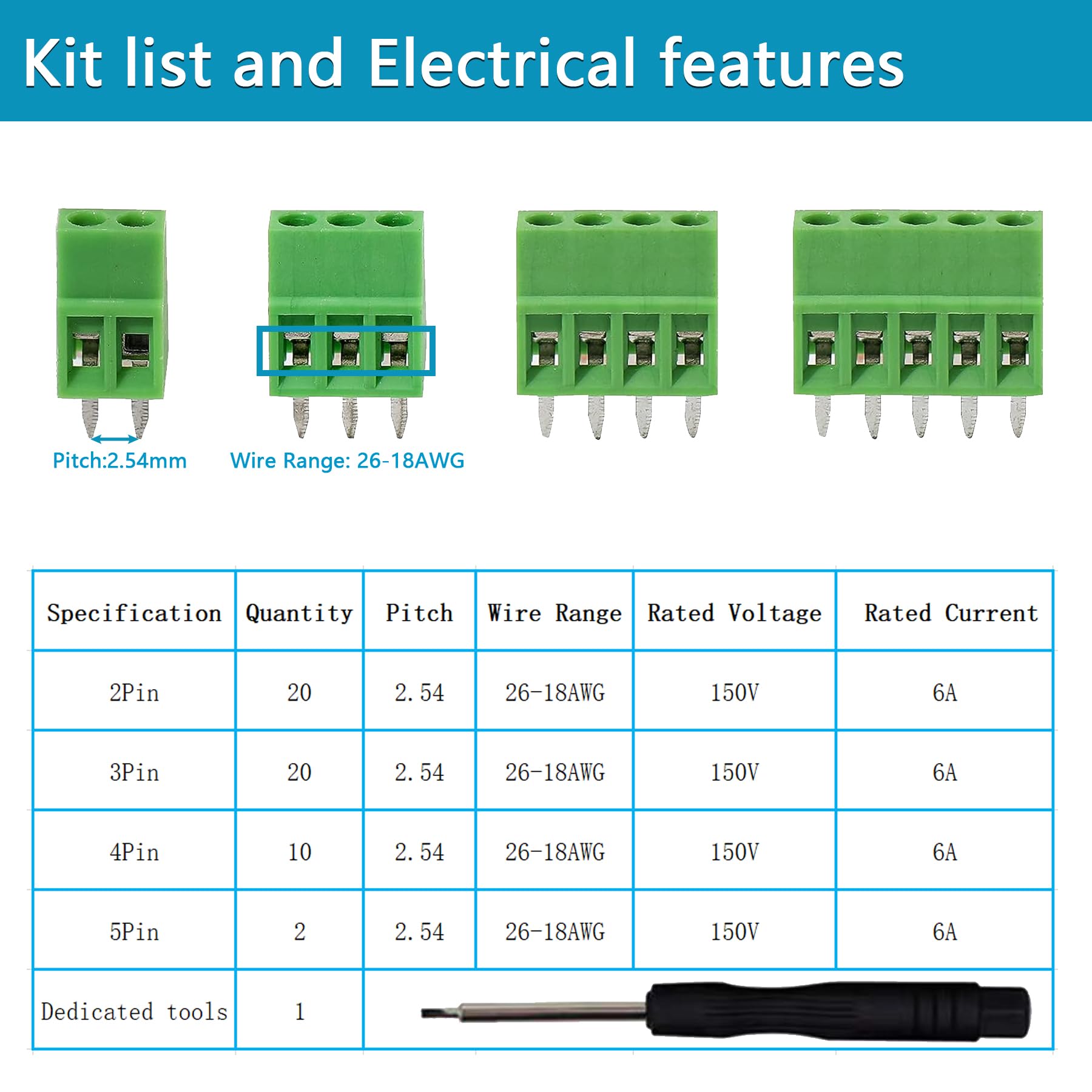

BulletPoint1 : 【Kit includes】52pcs 0.1" Pitch Screw Terminal Block Connector，2 Pins（20pcs） 3Pins（20pcs） 4Pins（10pcs） 5Pins（2pcs）+1pcs Special screwdriver.
BulletPoint2 : 【Rated Voltage】: 150V; Rated Current: 6A.
BulletPoint3 : 【Compatible wire sizes】：Screw terminals accomodate wire sizes from 18AWG to 26AWG.
BulletPoint4 : 【Quick Connection】: Screw Terminal on header provide secure connection and quick disconnection.
BulletPoint5 : 【Widely Applications】: It is well-suited for interfacing with I/O cards, data acquisition (DAQ) equipment, and any other device that uses a 2.54mm/0.1in header connector. Applications include the Raspberry Pi A+, B+, 2B, and 3B boards, Arduino, all of which use a 0.1" pitch pin header for their GPIO expansion ports.
ConnectorType : Screw
CurrentRating : 6 amps
ExternallyAssignedProductIdentifier1 : 754422509596
ExternallyAssignedProductIdentifier2 : 0754422509596
ItemName : 52PCS 2.54mm 0.1" Pitch PCB Mount Screw Terminal Block Connector, Minidodoca 2P 3P 4P 5P Terminals 150V 6A for 26-18AWG Cable，Equipped with Special Screwdriver
ItemPackageDimensions_Height : 0.5 inches
ItemPackageDimensions_Length : 3 inches
ItemPackageDimensions_Width : 2 inches
ItemPackageQuantity : 1
ItemTypeKeyword : ground-circuit-terminal-blocks
Manufacturer : Minidodoca
Material : Brass
ModelNumber : D7-X10
MountingType : PCB Mount
NumberOfContacts : 1
NumberOfItems : 52
NumberOfPoles : 12
NumberOfPositions : 12
PartNumber : 2pin 3pin 4pin 5pin
ProductDescription : Specifications: Pitch: 2.54mm/0.1” PIN: 2P, 3P, 4P, 5P Pin Header: Brass, Tin plated Screw: M1.6, steel, tin plated Clips: Stainless Steel Housing: PA66, UL94V-0 Rated Voltage: 150V Rated Current: 6A Withstanding Voltage: AC 1250V/ 1Min Wire Range: 26-18AWG(UL) Wire Range: 1mm2(IEC) Temperature Range: -40° ~ +105° Stripping length: 5-6mm Maximum tightening torque: 0.1Nm(0.88lb-in) Package List: 20PCS 2P Terminal Block 20PCS 3P Terminal Block 10PCS 4P Terminal Block 2PCS 5P Terminal Block 1pcs Special screwdriver 1PCS plastic box
ProductSiteLaunchDate : 2024-04-20T14:17:03.405Z
Style : 52pcs Terminal Block Connector
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UpperTemperatureRating : 105 degrees_celsius
Voltage : 150 volts
