Specification
Brand : Jienk
BulletPoint : 1
BulletPoint1 : IDC pin pitch 2.54mm/0.1" male header connector. Standard IDC20 pitch 0.1" header, you can use 20pin FRC(flat ribbon cable) connector cable connect all Arduino Uno pins to peripheral equipment.
BulletPoint2 : DIN Rail Mounting: Come with Din mount carrier and screws Compatible with 35mm, 32mm or 15mm DIN rail.
BulletPoint3 : Wire range: 26-16AWG. Rated voltage: 60V. Rated current: 1A / per pin. Operating temperature: -20 to 50 Celsius.
BulletPoint4 : The screw connectors make attaching and removing wires easily. Really helpful in your DIY prototyping project.
BulletPoint5 : Widely Applications: It is well-suited for interfacing with I/O cards, data acquisition (DAQ) equipment, and any other device that uses a 2x10 20-position header connector. Applications include the Raspberry Pi A+, B+, 2B, and 3B boards, all of which use a 0.1" pitch 2x10 I/O pin header for their GPIO expansion ports.
Color : Green
ConnectorType : Screw
CurrentRating : 1 amps
ExternallyAssignedProductIdentifier1 : 699838724334
ExternallyAssignedProductIdentifier2 : 0699838724334
IncludedComponents : Terminal

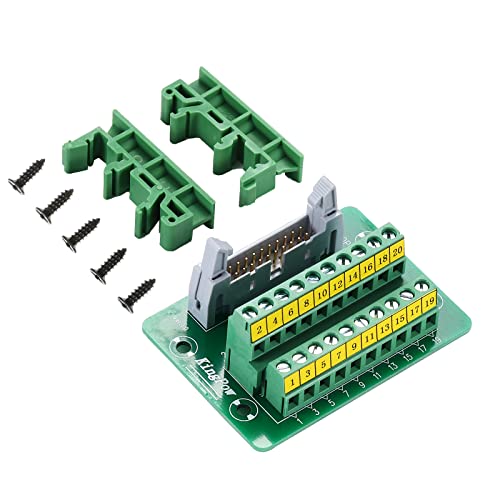

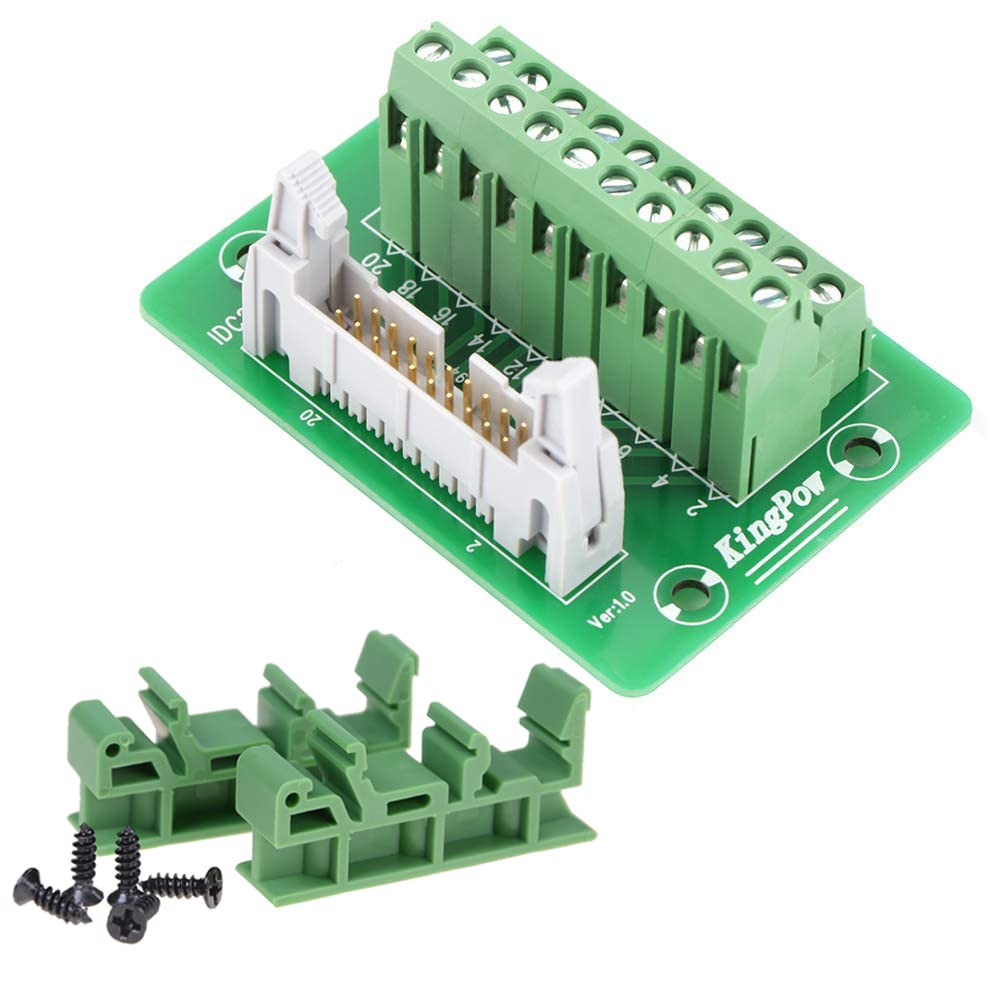

ItemName : Jienk IDC20 Breakout Board 2x10 20Pins Male Header Terminal Block Connector with C45 DIN Rail Mounting feet for PLC MCU
ItemPackageDimensions_Height : 9.2964 centimeters
ItemPackageDimensions_Length : 4.3942 centimeters
ItemPackageDimensions_Width : 7.0104 centimeters
ItemTypeKeyword : ground-circuit-terminal-blocks
Manufacturer : Jienk
Material1 : Brass
Material2 : Copper
Material3 : Alloy Steel
Material4 : Aluminum
Material5 : Zinc
ModelNumber : JT428-429
MountingType : DIN Rail Mount
NumberOfContacts : 20
NumberOfItems : 1
NumberOfLevels : 7
NumberOfPoles : 20
OperatingVoltage : 120 volts_of_alternating_current
PartNumber : JT428-429
ProductDescription : Specifications:
IDC pin pitch 2.54mm/0.1" male header connector.
Pitch 3.81mm/0.15" screw terminal block.
DIN Adapters (brackets): for width 35 / 32 / 15mm DIN rails.
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range: 26-16AWG.
Strip length: 5mm.
Screws: M2,steel,Cr3+ Zn plated.
Torque: 0.2Nm (1.7Lb-In.)
Pin header and Cage: Brass.
Package Content:
1PCS IDC20 2x10 Pins 0.1" Male Header Breakout Board
ProductSiteLaunchDate : 2022-04-11T09:12:21.595Z
Size : IDC20 2x10Pin
SpecificationMet : CE
SupplierDeclaredDgHzRegulation : waste
UnspscCode : 39121400
UpperTemperatureRating : 50 degrees_celsius
Voltage : 60 volts
