Specification
Brand : CNYST
BulletPoint1 : ◆ Double clamp grounding resistance tester can measure grounding resistance (range: 0.01Ω～30.00kΩ), soil resistivity (range: 0.01Ωm～9000kΩm), grounding voltage (range: 0.1V～100.0V) through various methods, Earth line leakage current, AC current (range: 0.01mA～600A), tester using precision 4-wire method, 3-wire method and simple 2-wire method, selection method, double clamp method to measure the grounding resistance
BulletPoint2 : ◆ The large-caliber current clamp design can measure the grounding system using a large grounding conductor; it can measure the arbitrary grounding resistance value of various complicated grounding conditions, and measure the ground connection without disconnecting any connecting ground. Electrodes to maximize the convenience of measurement. Automatically identify the interference signal, the "NOISE" symbol indicates when the interference voltage is higher than 5V
BulletPoint3 : ◆ Fouble clamp grounding resistance tester consists of host, current clamp, monitoring software, test line, auxiliary grounding bar, and communication line. Host large LCD display, white screen backlight, bar graph indication at a glance. automatic shutdown, with historical data read, view, save, report, print and other functions.Data retention: "HOLD" symbol display; Data Review: "READ" Symbol Display; Overflow display: "OL" symbol display; Interference judgment:
BulletPoint4 : ◆ Data Storage: 2000 Group; Data upload function: With RS232 interface, software monitoring, storage data can be uploaded to the computer, save the print; Automatic shutdown: 15 minutes automatic shutdown; Low battery: When the battery voltage drops to about 7.5V, the battery voltage is low and the symbol is displayed to remind you to replace the battery;Alarm function: When the measured value exceeds the alarm setting value, the "beep - beep - beep - -" alarm prompt
BulletPoint5 : ◆ Overload protection:Grounding resistance: AC 280V/3 seconds between E-P and E-C ports; Insulation resistance: 20MΩ or more (500V between circuit and case); Pressure resistance: AC 3700V/rms (between circuit and housing); Electromagnetic characteristics: IEC61010-4-3, radio frequency electromagnetic field ≤ 1V/m; Suitable for safety regulations: IEC61010-1 (CAT III 300V, CAT IV 150V, pollution level 2); IEC61010-031; IEC61557-1 (grounding resistance); IEC61557-5 (soil resistivity); JJG 366-2004
Color : Grey
IncludedComponents : see details

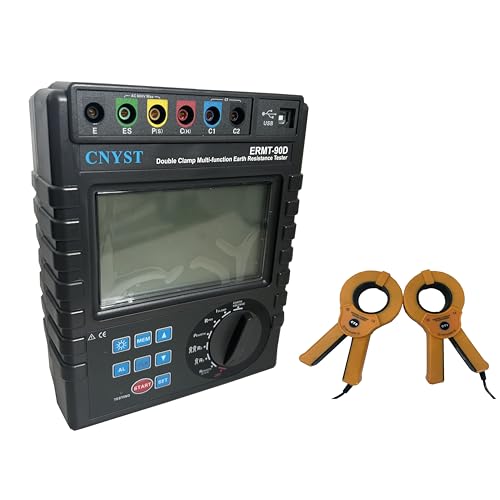

ItemName : CNYST Double Clamp Earth Resistance Tester Ground Resistance Tester with Soil Resistivity 0.01Ωm～9000kΩm DC Resistance 0.01Ω~30.00kΩ Grounding Voltage 0.1V to 100.0V Data Storage 2000 Group
ItemPackageDimensions_Height : 25 centimeters
ItemPackageDimensions_Length : 45 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ground-resistance-meters
Manufacturer : CNYST
Material : plastic
MeasurementAccuracy : see details
ModelName : Genericeox7acdrbw
ModelNumber : 02025011701
NumberOfItems : 1
PartNumber : 02025011701
PowerSourceType : Battery Powered
ProductDescription : Shipping Policy : Battery Not Included During the Shipping
LCD size: 124mm x 67mm (with backlight)
Current clamp diameter: Φ68mm
Range: Selection method measurement: 0.01Ω to 3000Ω
Double forceps measurement: 0.01Ω-100Ω
Two three four-wire method measurement: 0.01Ω ~ 30.00kΩ
Soil resistivity: 0.01Ωm～9000kΩm
DC resistance: 0.01Ω~30.00kΩ
Grounding voltage: 0.1V to 100.0V
AC current: 0.01mA～600A
Resolution:Resistance: 0.01Ω; Soil resistivity: 0.01 Ωm; Current: 0.01mA; Voltage: 0.1V
Highest accuracy: ±2%rdg±3dgt
Measurement methods: Two three four-wire method measurement: pole-changing method, measuring current 20mA Max
Selectivity Measurement: Polarization Method, Measuring Current 20mA Max
Double forceps measurement: non-contact mutual inductance measurement method, test current 1mA Max
Soil Resistivity: Quadrupole Method (Winner Method)
Ground-to-ground voltage: average rectification (between P(S)-ES interfaces)
AC current: clamp-type current transformer measurement
Test frequency: 128Hz/111Hz/105Hz/94Hz (AFC)
Data Mode: Average, Maximum, Minimum
Line resistance check: automatic verification
Measurement time: Voltage to ground: about 0.5 seconds/time
AC current: about 0.5 seconds/time
Grounding resistance, soil resistivity: about 5 seconds/time
Number of measurements: 5000 or more (short-circuit test, test 1, stop 30 seconds and then test)
Short circuit test current: AC 20mA max; Open circuit test voltage: AC 40V max
Test voltage waveform: Sine wave
Electrode spacing range: Can be set from 1m to 100m
Line voltage: Measurement to ground voltage: AC 600V or less
Auxiliary grounding test: Auxiliary grounding resistance test function, 0.00KΩ to 30kΩ (100R+rC<50kΩ, 100R+rP<50kΩ)
Power Supply: Battery No. 2 1.5V (LR14) x6 section（Battery not included in the package)
ProductSiteLaunchDate : 2025-01-15T08:00:00.000Z
Size : M
Style : Double Clamp ground Earth resistance tester
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41113600
