Specification
Brand : WnewTools
BulletPoint1 : Current range: 0-20A
BulletPoint2 : Resistance range: 0-1200u03a9
BulletPoint3 : New black screen design, high-end luxury
BulletPoint4 : u03a9 + A same screen display
BulletPoint5 : Quick self-check function, no need to wait
ExternallyAssignedProductIdentifier1 : 0769903007430
ExternallyAssignedProductIdentifier2 : 769903007430
IncludedComponents : No

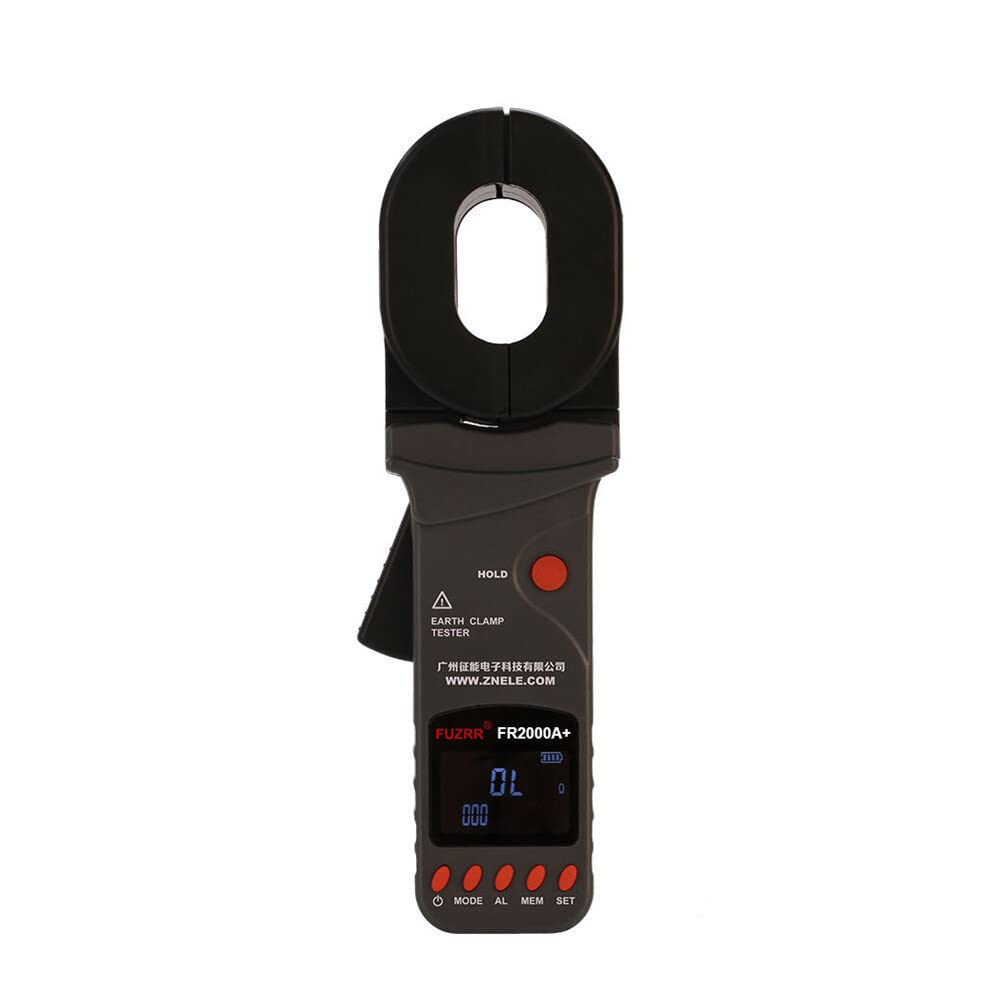

ItemName : FR2000A+ Clamp Ground Resistance Tester 0.01Ω-200Ω Loop Resistance Tester 300 Sets of Data Storage
ItemPackageDimensions_Height : 11 centimeters
ItemPackageDimensions_Length : 35 centimeters
ItemPackageDimensions_Width : 22 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ground-resistance-meters
Manufacturer : Wnew
MeasurementAccuracy : 0.1mm
ModelName : Practical
ModelNumber : ATOOL1796131
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : ATOOL1796131
PowerSourceType : hand_powered
ProductDescription :

Specification:

Model: FR2000A+

Resistance range: 0.01Ω-200Ω

Type: Practical

Resistance resolution: 0.001Ω

Current range: none

Current resolution: none

Function: ground resistance test, loop resistance test, leakage current test

Accuracy: Ground resistance accuracy: ±1%±0.01Ω, current accuracy: ±2%±1mA

Ambient temperature and humidity: 23°C±5°C, below 75%rh

Power supply: DC6V (4 AA alkaline dry batteries)

Measurement method: mutual inductance method

Jaw size: 55mm x 32mm

Ω + A simultaneous display: Ω + A simultaneous display

Display mode: 4-digit LCD display, black screen design

LCD size: 46mm x 29mm

Instrument size: length, width and height: 285mm x 85mm x 58mm

Measuring time: 2 times/sec

Data storage: 300 groups, "MEM" storage indication, display "FUL" symbol to indicate storage is full

Data access: "MR" symbol indicates when accessing data

Overflow display: “OL” symbol indicates when over-range overflow

Interference test: automatic identification of interference signals, "NOISE" symbol indicates when the interference current is large

Alarm function: when the measured value exceeds the alarm set value, an alarm will be issued

Power consumption: 50mA Max

Quality: Meter: 1180g (including battery)

Working temperature and humidity: -10°C~40C; below 80%rh

Storage temperature and humidity: -20°C~60C; below 70%rh

Insulation resistance: above 20MΩ (500V between circuit and case)

Withstand voltage: AC 3700V/rms (between circuit and case)

External magnetic field: <40A/m

External electric field: <1V/m

Suitable for safety regulations: IEC61010-1 (CAT ll 300V, CAT IV 150V, pollution degree 2); IEC61010-031; IEC61557-1 (ground resistance).

Package includes:

1 x Meter

1 x Calibration ring

1 x Instrument package

1 x User Manual

ProductSiteLaunchDate : 2024-10-20T14:08:32.464Z
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 1
UnspscCode : 53000000
