Specification
Brand : LJIA
BulletPoint1 : ETCR 100FNo exposed metal conductor, non-contact measurement, safe and reliable;
BulletPoint2 : Small size, light weight, soft and flexible, suitable for cramped environment and cable-intensive sites, And measure the size of a large or irregularly shaped conductor current; Wide measurement range, high accuracy, reliability, response, bandwidth (0.1Hz-1MHz);
BulletPoint3 : Coil length can be customized according to user requirements, Particularly suitable for relay protection, silicon controlled rectifier, frequency control , semiconductor switches, Power electronics conversion equipment, arc welding and other industrial environments serious signal distortion.
BulletPoint4 : Precision clamp head design: using precision iron core and winding, stable, precise and strong anti-interference.
BulletPoint5 : Easy to use: When measuring a grounded system with a loop, there is no need to disconnect the ground lead and no auxiliary electrode.
Color : One Color
ExternallyAssignedProductIdentifier : 9454352904003
IncludedComponents : ABS

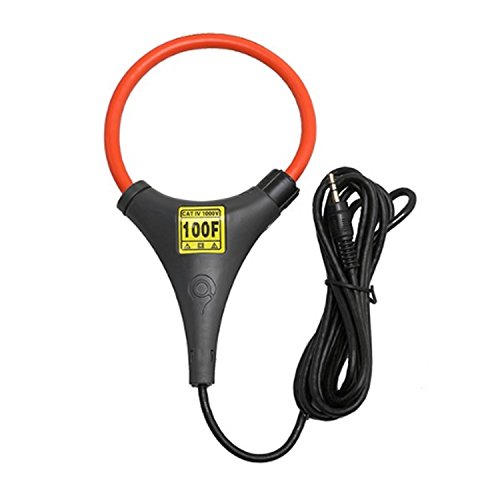

ItemName : Ground Tester, Flexible Coil AC leakage current sensor of high harmonic currents tester complex Waveforms current measurement ETCR100F,Safer and Faster
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ground-resistance-meters
Manufacturer : LJIA
Material : plastic
ModelName : ETCR100F
ModelNumber : ETCR100F
NumberOfItems : 1
PartNumber : ETCR100F
ProductDescription : Function
AC leakage current, large current, high harmonic current, complex waveform current, transient impulse current, phase, power, power, power factor and other detection
Detection method
Flexible CT: the output signal is the current to the time of differentiation, through the output voltage signal integration, you can really restore the input current
Coil length
315mm
Coil diameter
100mm
Coil diameter
7.5mm (very suitable for narrow environment and intensive cable etc.)
Coil quality
115g
Measuring range
0A ~ 10000A ~ higher
Resolution
10mA
Precision grade
1.0%FS (50Hz/60Hz; 23 C + 2 C, 70%RH below, the wire is in the center of the coil)
phase error
Less than or equal to 0.1 degrees (50Hz/60Hz; 23 - 2 Deg. C)
Output interface
3.5mm audio frequency
Output line
2m
Electric field interference
No hysteresis effect is not affected by external electric field.
Wire position
Is located at the center of the test wire coil, position error influence less than 0.3%FS
Current frequency
45Hz ~ 70Hz (measured current frequency)
Response frequency
0.1Hz ~ 1MHz
Line voltage
1000V AC following line test
Working temperature and humidity
-20 degrees Celsius to 50 degrees C; 80%rh below
Storage temperature and humidity
-10 degrees Celsius to 60 degrees C; 70%rh below
Insulation strength
2000V/rms AC (both ends of the coil)
Suitable for safety
IEC1010-1, IEC1010-2-032, pollution level 2, IV 1000V CAT
ProductSiteLaunchDate : 2025-03-25T03:42:03.906Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41113600
