Specification
BatteriesRequired : 1
Brand : RaeSung
BulletPoint1 : The ETCR2100+ Clamp Ground Resistance Meter measures ground faults that cannot be measured with conventional methods, can be used in applications where traditional methods cannot be measured, and is widely used for measuring ground resistance of various devices.
BulletPoint2 : When measuring the looped grounding system, it is not necessary to disconnect the ground deflector and no auxiliary electrode is needed. Just clamp the meter and clamp it directly on the ground lead. The value displayed by the clamp meter is the grounding body resistance and The integrated value of the ground lead resistance, this measurement method can quickly and safely obtain the measurement results.
BulletPoint3 : Alarm Threshold Setting Range:Resistance: 1-199Ω; Alarm Sound and Light: "Beep-beep-beep" alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.
BulletPoint4 : Protection Level: Dual Insulation; Clamp Size: Φ32mm; Resistance Resolution:0.001Ω; LCD Screen: 4 Digits LCD display; Highest Resistance Accuracy:±1%±0.01Ω.
BulletPoint5 : Structural Feature: Clamp CT; ETCR2100 + clamp ground resistance tester, ground resistance and loop resistance measurement (range: 0.010Ω ~ 1200Ω).
Color : Red&Black
ExternallyAssignedProductIdentifier : 7421389146708
ExternallyAssignedProductIdentifier1 : 0738628192714
ExternallyAssignedProductIdentifier2 : 738628192714

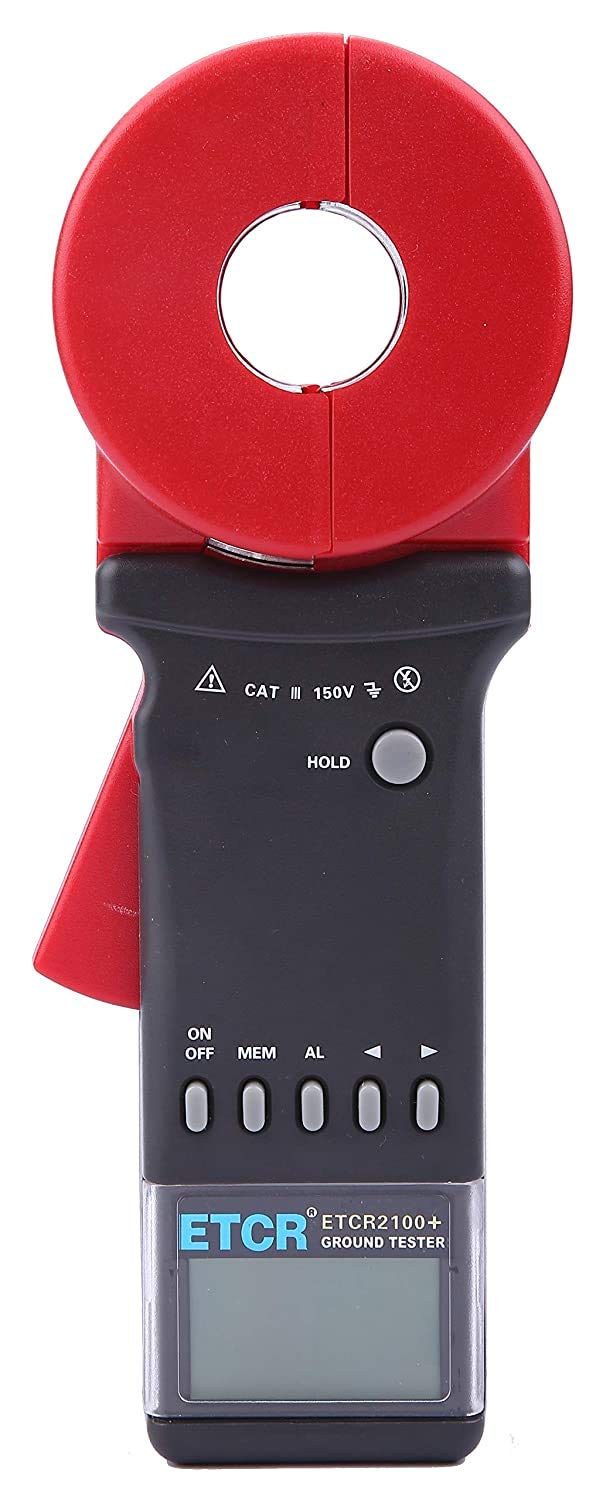

ItemName : RaeSung Digital Ground Resistance Tester ETCR2100+ Earth Resistance Tester 0.01-1200ohm with RS232 Interface 99 Sets Data Memory
ItemPackageDimensions_Height : 13 centimeters
ItemPackageDimensions_Length : 35 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemTypeKeyword : ground-resistance-meters
Manufacturer : RaeSung
Material : Plastic
PartNumber : ETCR2100+
PowerSourceType : Battery Powered
ProductDescription :

Technical Specifications

* Function: Ground resistance test, Loop resistance test

* Clamp Size: Φ32mm

* LCD Screen: 4 Digits LCD display, Screen L×W: 47mm×28.5mm

* Resistance Range:0.01-1200Ω

* Resistance Resolution:0.001Ω

* Highest Resistance Accuracy:±1%±0.01Ω

* Data memory:99 Sets

* Auto Power-off: 5 minutes after Boot up

* Power Consumption: Max 50mA either in booting up or normally working, Continuously working for 30 hours

* Working Temperature and Humidity: -20℃-55℃;20%RH-80%RH

* Storage Temperature and Humidity: -20℃~60℃;90%RH

* Alarm Threshold Setting Range:Resistance: 1-199Ω

* Alarm Sound and Light: “Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold. * Interference Signal Recognition:”Beep-beep-beep” tone, NOISE symbol blinking

* Protection Level: Dual Insulation

* Structural Feature: Clamp CT

* Shifting: Automatic shifting

* External magnetic field: <40A/m

* External electrical field: <1V/m

* Single measurement time: 0.5 second

* Resistance measurement frequency: >1KHz

* Measured current frequency: 50/60Hz Automatic measurement

* Low Battery Indication: Low battery symbol displays when battery is lower then 5.3V

* Memory Full Indication: MEM symbol blinks when all 99 sets memory is full

* Over Range Indication: Out of range indication “OLΩ”, “L0.01” or “OL A”

* Weight: 1120g

* Clamp Dimension: L×W×T: 260mm×90mm×66mm

* Power Supply: 4 PCS of AA alkaline batteries（Battery not included in the package）

* Standard Accessories: Meter: 1; test loop: 1; meter box: 1

* Optional Accessories: RS232 interface



ProductSiteLaunchDate : 2020-03-21T07:00:00.000Z
Size : 280mm×260mm×160mm
Style : Digital
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 27110000
