Specification
Brand : LJIA

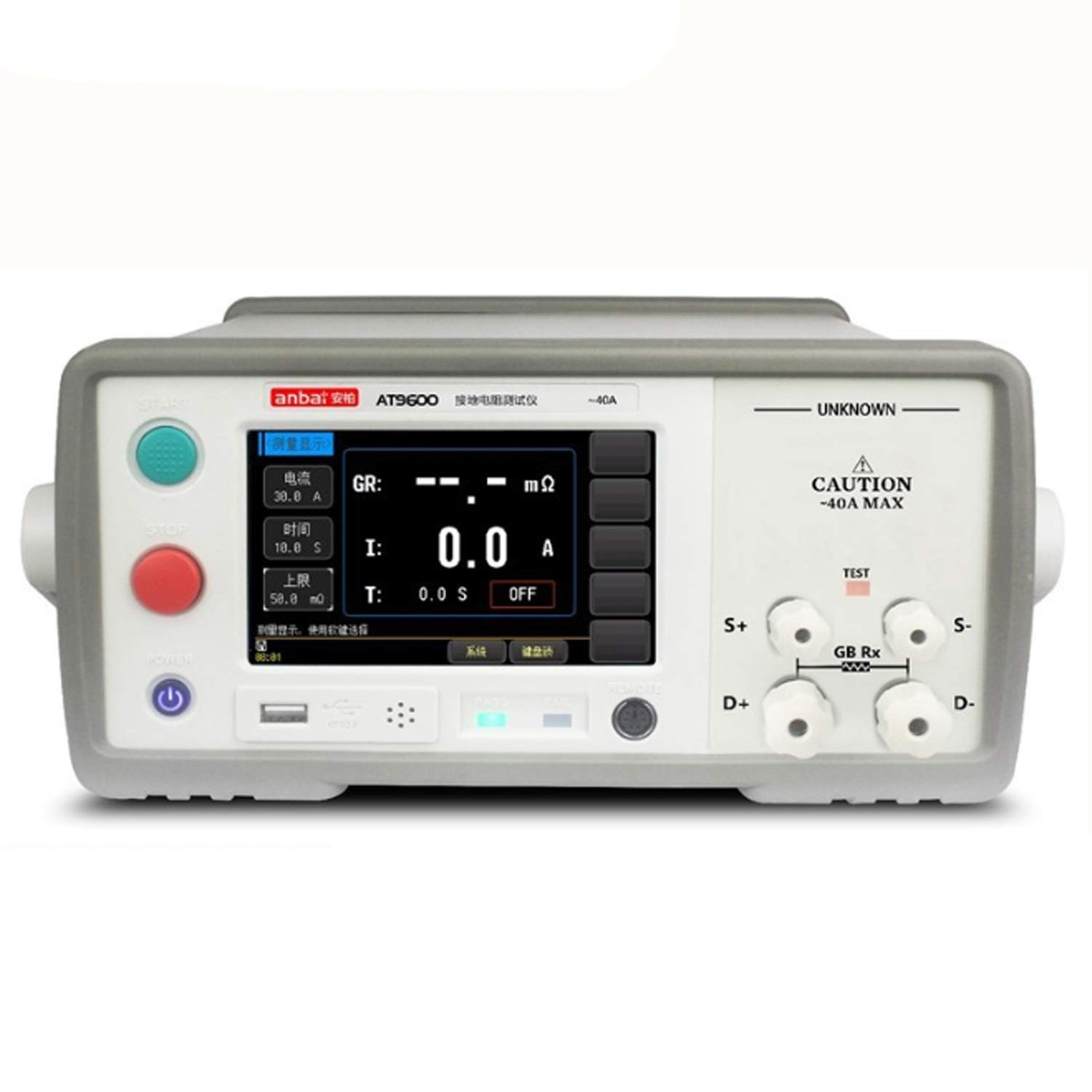

BulletPoint1 : The AT9600 AC Ground Resistance Tester is an instrument used to measure the ground impedance of an electrical device or the ground impedance between an electrical device and a grounded grid.
BulletPoint2 : The AC grounding resistance tester AT9600 is a high current (maximum 40A) flowing through the measured object, and an AC 4-terminal measurement method to measure low resistance. Support modbus, (Modbus has become the national standard GB/T19582-2008)
BulletPoint3 : It is applied to the automatic sorting system to complete the automatic assembly line test to improve the production automation test capability! The AT9600 is designed according to international and domestic safety standards such as GB, IEC, ISO, BS, etc., and can be applied to the following occasions:
BulletPoint4 : ● Measurement of protective earthing resistance of equipment and equipment ●Evaluation of large current flow ● Grounding connection inspection of electrical working equipment and power distribution cabinet ● Protective earthing of medical equipment and inspection of equipotential grounding engineering
BulletPoint5 : The AT682 High Resistance Meter is designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components.
Color : One Color
ExternallyAssignedProductIdentifier : 9454352983152
ItemName : Resistance Tester, AT9600 AC Ground Resistance Tester,Accurately Measures
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ground-resistance-meters
Manufacturer : LJIA
Material : plastic
ModelName : AT9600
ModelNumber : AT9600
NumberOfItems : 1
PartNumber : AT9600
ProductDescription : Measurement function AC 4-terminal grounding resistance
Display 5-inch TFT color screen, ground impedance, output current test time synchronization display
Set current range AC5A ~ 40A, resolution 0.1A
Frequency of occurrence 50Hz or 60Hz sine wave (can be set)
Maximum output power 160VA
Open circuit port voltage AC 6V or less
Resistance measurement range 0～600mΩ
Voltage measurement range 0~6V
Measurement time display After the measurement starts, the countdown display starts from the set time, or the measurement duration is displayed.
Timer setting 0~999.9S countdown or turn off the timer function
Comparator upper limit alarm, super upper limit buzzer alarm
Storage function Built-in storage, USB storage
Standard interface RS-232 communication interface Handler interface
Other Chinese and English menu switching
Power Requirements AC 220V 50Hz 160VA
Dimensions Weight Outer dimensions (mm): 300 × 250 × 100 Weight: 10kg
Accessories power cord communication line

Performance characteristics
● 5-inch TFT color screen, grounding impedance
● Output current test time synchronization display
● High limit alarm, super upper limit buzzer alarm
application
● Protection grounding resistance measurement of equipment
● Evaluation of large current flows
● Grounding connection inspection of electrical working equipment and power distribution cabinet
● Inspection of protective earthing and equipotential grounding of medical equipment
ProductSiteLaunchDate : 2025-03-25T05:45:54.999Z
Size : One Size
UnitCount : 1
UnspscCode : 41113600
