Specification
BatteriesIncluded : 1
BatteriesRequired : 1
BatteryInstallationDeviceType : installed_in_vehicle
Brand : VTSYIQI
BulletPoint1 : High Voltage Insulation Testers Suitable for insulation resistance testing of cable, motor, generator, transformer, mutual inductor, high voltage switch, arrester and other large equipment.
BulletPoint2 : Insulation Resistance Range：0.5MΩ～10TΩ Max Short Circuit Current 5mA Polarization Index Test（PI）Dielectric Absorption Ratio Test（DAR）
BulletPoint3 : High voltage insulation resistance tester Rated Voltage：250v~10Kv（6 gears） Step Test Mode(STEP) Ramp Test Mode (RAMP) Custom Setting Output Voltage Custom Setting Test Time 10s~60min
BulletPoint4 : HV Insulation Testers Output Shout Circuit Current：≥5mA Voltage monitor function, Test timer function , Automatic discharge function Large Capacity Rechargeable Lithium Battery USB Communication Bluetooth Communication
BulletPoint5 : High-voltage insulation tester Insulation resistance measurement (IR); polarization index measurement (PI); absorption ratio (DAR);Ramp Test Mode (RAMP); filtered resistance test (FR); Voltage measurement(V); capacity measurement（uF）; current measurement（nA）
Color : Grey
ContainsBatteryOrCell : cell
ExternallyAssignedProductIdentifier : 1098464648769
IncludedComponents : 1

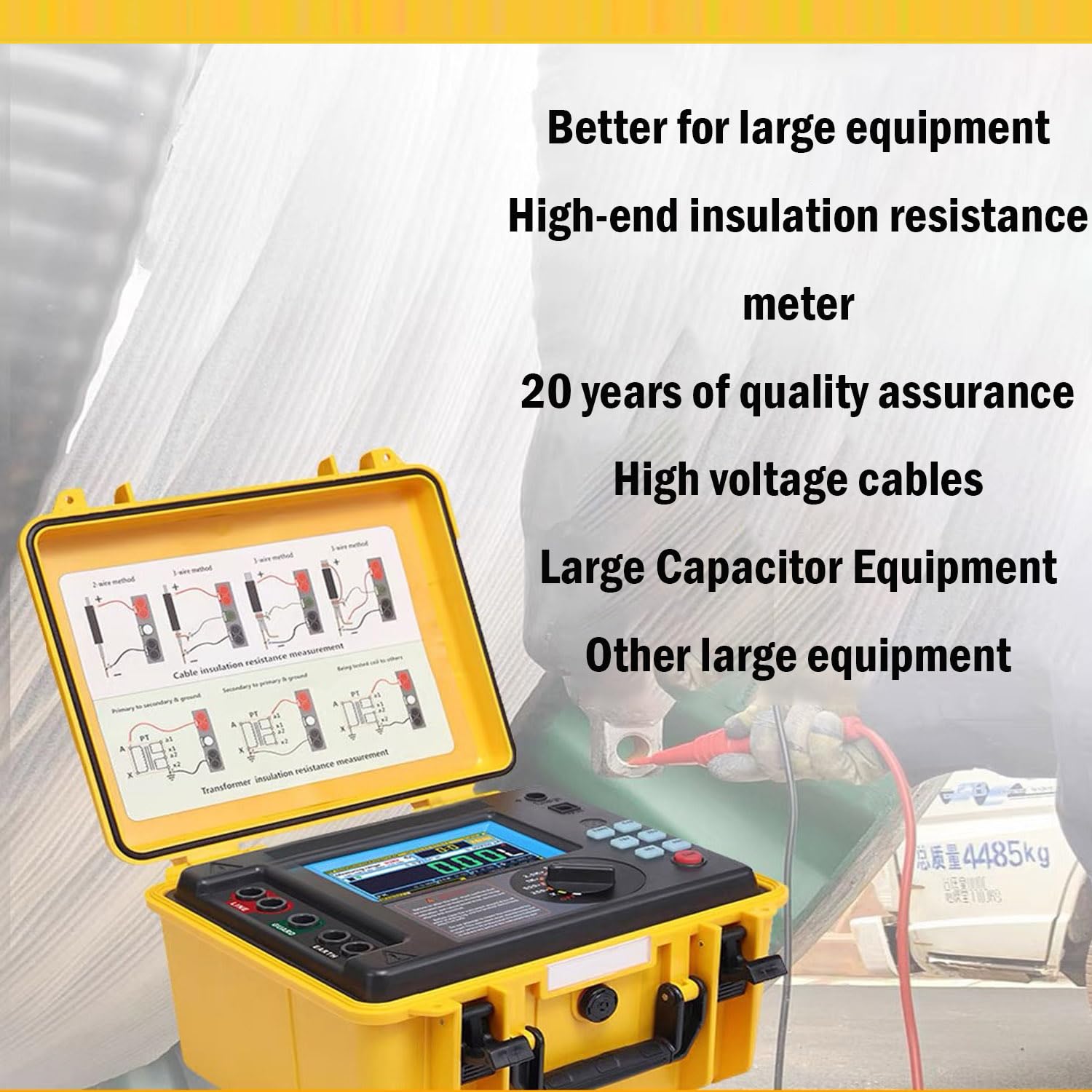

ItemName : VTSYIQI 10kv High Voltage Insulation Resistance Tester 10Kv Insulation Resistance Tester Kit for High-Capacity High-Voltage Strongly Induced Electrical with 10 Teraohms Resistance 10kv Voltage
ItemPackageDimensions_Height : 25 centimeters
ItemPackageDimensions_Length : 45 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ground-resistance-meters
Manufacturer : VTSYIQI20250303145187654567VTSYIQI
Material : plastic
MeasurementAccuracy : （5%～10%）±10V
ModelName : MING5
ModelNumber : VTSYIQI20250303145187654567VTSYIQI
NumberOfItems : 1
NumberOfLithiumIonCells : 2
PartNumber : VTSYIQI20250303145187654567VTSYIQI
PowerSourceType : Battery Powered
ProductDescription : Specification
Function: Insulation resistance measurement (IR); polarization index measurement (PI) ;Dielectric Absorption Ratio Test（DAR)；Ramp Test Mode（RAMP）；filtered resistance test（10S、20S、30S、40S 4 options)；Voltage measurement(V); capacity measurement（uF); current measurement（nA）
Power Supply: Rechargeable lithium battery pack 5.2Ah
Rated Voltage: 250V，500V，1KV，2.5KV，,5KV, 10KV
Output Voltage Accuracy:（5%～10%）±10V
Insulation Resistance Range: 0.5MΩ～5TΩ
Output Short Circuit Current: >5mA
Polarization Index Test: Yes
Dielectric Absorption Ratio Test: Yes
Ramp Test Mode: Test at 10% of the preset voltage until the peset voltage
Filtered Resistance Test Mode: 10S、20S、30S、40S
Voltage Measurement: Range: AC/DC 0V～1000V；Accuracy: ± 5%rdg ± 3V ；
Capacitance Measurement: Range: 10nF～25uF；Accuracy: ± 10%rdg ± 10 nF ；
Leackage Current Measurement: Range：0.01nA～7.00mA；Accuracy: ± 5%± 0.5 nA ;
Voltage Monitor: Monitor the voltage of the measured object, and monitor discharge status after test, Forbidden to test when voltage is larger than 36V, protect instrument and operator.
Test Time: Automatic record test time, time range: 0s~9999s
Storage Function: Automatically store the test data with test date and time, total of 1000 groups
Upload Function: Upload the stored data to computer with USB communication cable.
Battery Power Display: With battery power display, when battery voltage low will remind to replace the battery
Automatic Shutdown: After 15 minutes start up will shut down automatically without any operation
Meter Dimension: 280mm×260mm×160mm
Weight: 4400g
Test Wire: Red color high voltage test wire 1 pcs (with alligator clip 1PCS and hook 1PCS), green color test wire 1PCS, black color test wire 1PCS
Protection Level: Close the case IP65, open the case IP40

ProductSiteLaunchDate : 2017-03-27T07:00:00.000Z
Size : Large
Style : VTSYIQI20250303145187654567VTSYIQI
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 46191500
