Brand : NF
BulletPoint1 : Resistor tuning HPF(High-Pass filter), 4-pole
BulletPoint2 : Frequency setting : 4 externally connected resistors
BulletPoint3 : Cut-off frequency range: 400Hz to 5kHz
BulletPoint4 : Butterworth
BulletPoint5 : Roll off : 24dB/oct

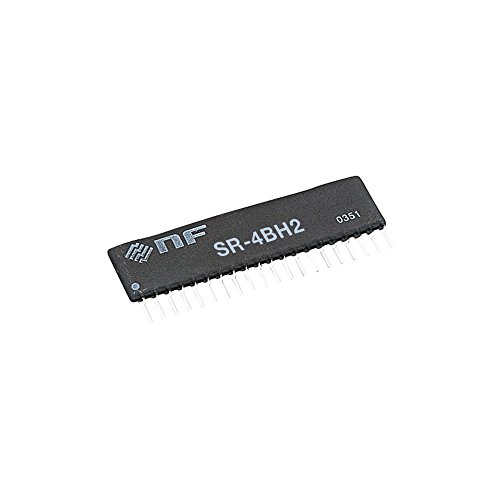

ItemName : NF Corp. Resistor Tunable Filter SR-4BH2, 400Hz to 5kHz
ItemPackageQuantity : 1
ItemTypeKeyword : high-pass-filters
Manufacturer : NF Corporation
Material : Copper
NumberOfItems : 1
PartNumber : SR-4BH2
ProductDescription : SR series are ultrasmall resistor tunable filters in single-inline package(sip). An easy setting of cutoff (center) frequency is assured with the external resistors. The abundance of filter types extends the range of choices.

[Specifications]

Absolute maximum ratings: Supply voltage: ± 18V , Input voltage: ± Vs

Cut-off / Center frequency characteristics: Accuracy: Max. ± 3%

Pass-band characteristic: Gain: 0dB ± 1dB , Upper limit frequency: 50kHz(± 1dB)

Attenuation Chracteristics: Attenuation Characteristics: 24dB(typ)

Input Characteristics: Input impedance: Min. 50KΩ , Max. input voltage(linear): ± 10V (10ｋHz or less),± 5V(50ｋHz or less)

Output Characteristics: Output impedance: Max.100Ω , Max. output voltage: ± 10V(Max.10kHz) , Load resistance: Min.10kΩ ,　Voltage noise: Max.140μVrms (10Hz to 500kHz) , DC offset: Max.±30mV , Distortion(typ): 0.1% , Slew Rate: 2V/μs

Others: Supply voltage: ± 15V( ± 5V to ± 18V) , Quiescent current(typ.): ± 8mA typ. Dimensions: 51.5x 14 mm, S20 type, 4 mm in thickness

* This device is compatible with Datel Product model FLJ-UR4HA2
* Based on this product, NF will respond customers requirement flexibly
