Specification
Brand : Xuthusman
BulletPoint : Flexco P1P punch for lacing installation.
BulletPoint1 : 【Build to Last】It is made of high-quality Cr 40 by blackening and heat treatment, featuring high strength, heat resistance and durability, which can be reused.
BulletPoint2 : 【High Efficiency】This product adopts high-precision dimensions that can drill holes in steel plates(within 1.5mm) and iron plates(within 3mm), and using it with cylinders and hydraulic pumps (not included) ensures efficient drilling and improves processing efficiency.
BulletPoint3 : 【Dual Compatibility】It can be operated manually or electrically with the machine(not included), which greatly facilitates machine selection for the operator.
BulletPoint4 : 【Easy to Use】After receiving the product, it does not need to be installed, all you just need to do is follow the operating procedures to operate it, which is convenient and fast. In addition, it can be molded by opening the hole and does not require secondary processing.
BulletPoint5 : 【Easy to Carry & Store】Thanks to its small size(1.77*1.77 inches) and 6.17 lbs lightweight, you can carry and store this product easily and conveniently.
Color : Black
ExternallyAssignedProductIdentifier : 4962819013472
ExternallyAssignedProductIdentifier1 : 0743557790009
ExternallyAssignedProductIdentifier2 : 743557790009
IncludedComponents : 1*Hydraulic Punching Die

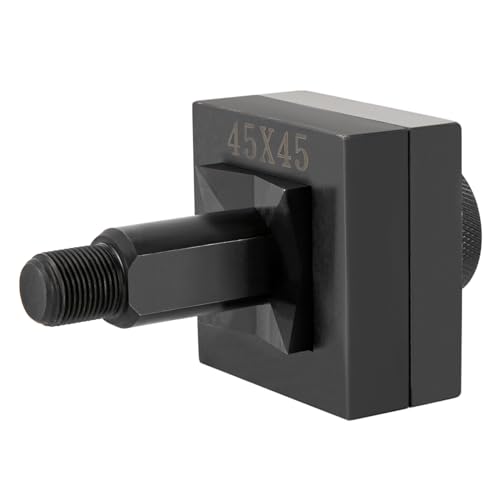

ItemName : Xuthusman Hydraulic Punching Die, 45 mm × 45 mm Manual Square Hydraulic Hole Punch Knockout Die
ItemPackageDimensions_Height : 41.5 centimeters
ItemPackageDimensions_Length : 2.4 centimeters
ItemPackageDimensions_Width : 23.4 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hand-tool-hole-punches
Manufacturer : GodivaSky_US
Material : Stainless Steel
Material1 : Aluminum
Material2 : Alloy Steel
ModelNumber : Die
NumberOfItems : 1
OperationMode : Hydraulic
PartNumber : FE5WG898
ProductDescription :

Description

The hydraulic punching die is made of high-quality Cr 40, blackened and heat treated for high strength, heat resistance and durability. High dimensional accuracy and easy operation can greatly enhance the efficiency of work. It is especially suitable for drillers of steel and iron plates and is a good helper for them.

Specifications

Material: Cr 40

Surface Treatment: Blackening Treatment, Heat Treatment

Color: Black

Shape: Square

Type: Die

Applicable Material: Stainless Steel Plate, Iron Plate

Operation Mode: Manual/Electric

Max. Plate Thickness(Steel): 1.5mm/0.06in

Max. Plate Thickness(Iron): 3mm/0.12in

Die Clearance: 0.6-0.7mm/0.024-0.028in

Gross Weight: 3kg/6.61lbs

Net Weight: 2.8kg/6.17lbs

Product Size: 45*45mm/1.77*1.77in

Package Size: 10*10*4cm/4*4*1.5in

Package Included

1*Hydraulic Punching Die

Details

2-head Bolt: A 2-head bolt is spiraled to securely connect to other fittings and the tighter the connection, the better the drilling.

Burr-free Edges: This design can effectively care for your skin when using this product.

Application

It is mainly suitable for drilling in the manufacturing industry, especially for drilling operations in thin plates such as steel and iron sheets. In addition, it can be used with cylinders and hydraulic pumps.

How to Use

1.First, open a 1.08-in round hole on the board.

2.Then put the plate on the lower mold of the product, and the upper mold on the plate.

3.The nut on the tie rod is to turn tight to fix the mold.

4.Then with the manual pump press up and down, the mold will slowly together. The middle plate will fall.

5.Finally, open the mold and take out the plate from the middle.

Notes

1.Please check the product size and dimensions carefully before placing an order.

2.If you will inevitably get wet during use, we suggest that the surface of this product can be coated with a little oil to prevent rust.

3.As the hydraulic pressure is very strong, please pay attention to safety when operating.

ProductSiteLaunchDate : 2024-01-16T08:05:41.808Z
SheetCount : 1
Size : 6mm
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 27112845
