Specification
Brand : TOPAZ
BulletPoint : Spool: 4 Ways, 3 Positions, Tandem, 3 Position Detent
BulletPoint1 : Hydraulic spool valve equipped with 6 spools and #10 SAE O-Ring (3/4”-16) thread inlet/outlet ports.
BulletPoint2 : Adjustable relief valve range 1500 to 3625 PSI, maximum flow rating 11 GPM.
BulletPoint3 : These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.
BulletPoint4 : Hydraulic directional control valves should be selected based upon both the size of the circuits and the components, both upstream and downstream to the valve.
BulletPoint5 : 6 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service.
BulletPoint6 : Loader Tractor Hydraulic Control Valves are manufactured in a variety of styles to function in different applications. Valves are used to manipulate the flow of hydraulic fluid within a hydraulic circuit and are activated either mechanically or electronically.
BulletPoint7 : Flow ratings should be based upon the highest possible flow the valve will need to achieve.
BulletPoint8 : We offer 12-month warranty. If you have any questions about choosing hydraulic directional control valves, please feel free to contact us.
Color : Black
ConnectorType : Threaded
ControlMethod : touch
CustomerPackageType : Standard Packaging
ExteriorFinish : Aluminum
ExternallyAssignedProductIdentifier : 6926508124212
ExternallyAssignedProductIdentifier1 : 0615986030073
ExternallyAssignedProductIdentifier2 : 615986030073
IncludedComponents : Stainless Steel

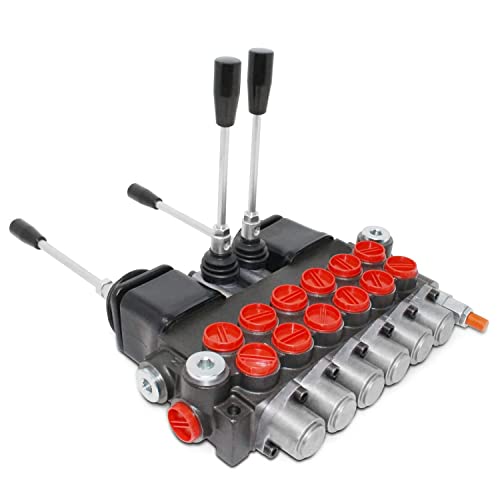

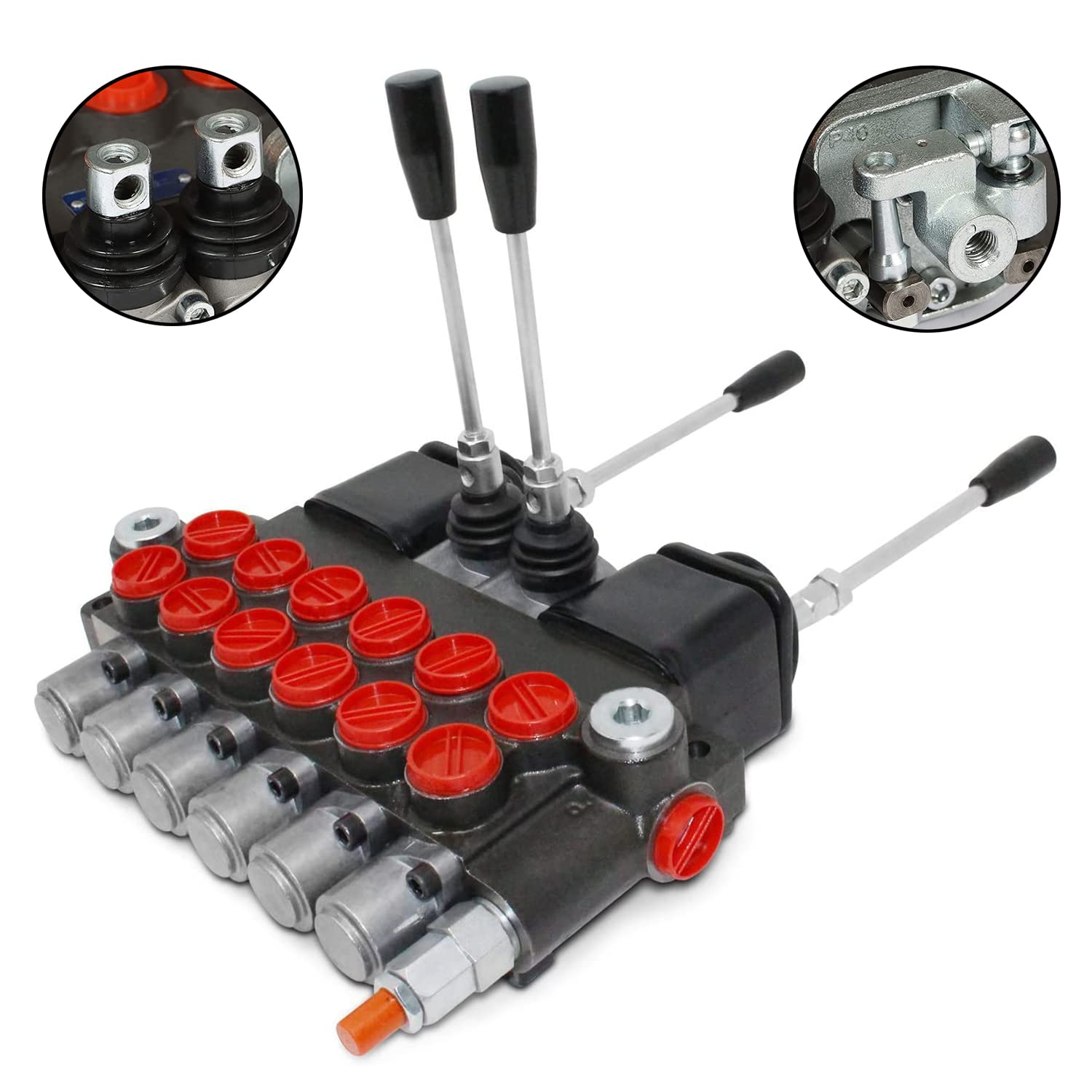

ItemName : Hydraulic Control Valve 6 Hydraulic Spool 11GPM 3625PSI Hydraulic Directional Control Valve Loader Tractor Control Valve
ItemPackageDimensions_Height : 9.652 centimeters
ItemPackageDimensions_Length : 28.194 centimeters
ItemPackageDimensions_Width : 21.844 centimeters
ItemPackageQuantity : 1
ItemShape : Monoblock
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : TOPAZ
Material : Cast Iron
Material1 : Iron
Material2 : Aluminum
MaximumOperatingPressure : 3625 pounds_per_square_inch
ModelName : Hydraulic Directional Control Valve
ModelNumber : A0216A0072
NumberOfItems : 1
NumberOfPorts : 2
PartNumber : A0216A0072
ProductDescription : TOPAZ Hydraulic Directional Control Valve, 6 Hydraulic Spool Backhoe Valve Control 11 GPM 3625 PSI 5/16” Mounting Holes SAE Ports Hydrolic Valves for Tractors Loaders Features: These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors. 6 Spool valve with compact design allows for installations in tight areas High-tensile strength cast iron monoblock construction SAE O-Ring ports ensure solid seal and prevent blockages Vertical or horizontal handle mount Used as motor or single-acting spool possible (#8 SAE port plug required) Max Operating Pressure: 3625 PSI Preset Pressure Relief: 2610 PSI Flow Rating: 11 GPM (40 l/min) 2 – 5/16” Mounting Holes A & B Work Ports: #8 SAE O-Ring (3/4”-16) Thread Inlet Port: #10 SAE O-Ring (7/8”-14) Thread Outlet Port: #10 SAE O-Ring (7/8”-14) Thread
ProductSiteLaunchDate : 2021-09-27T09:27:29.050Z
Size : 6 Spool 11GPM
SpecificationMet : sae
Style : Hydraulic Valve
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40141600
