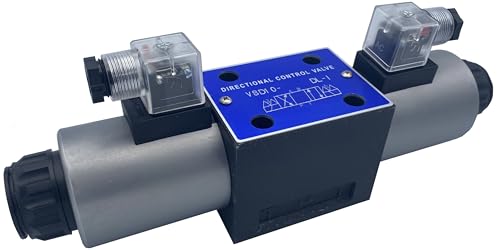

Hydraulic Directional Control Valve D05 (NG10) 31 GPM 4560 psi AC or DC (M-Motor-Center A&B Blocked and Pressure to Tank, 12VDC)

Customer rating 4.3 stars

Imported from USA | Ships in 10 working days

5% additional discount on UPI | Cash On Delivery available

1

₹64000 -35% ₹41600/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart.
EMI and GST Invoice available.

Product Information


Specification
Brand : Fluidhaus
BulletPoint1 : Robust industrial grade used in many high volume original equipment manufacturers.
BulletPoint2 : Multiple spool and voltage options.
BulletPoint3 : Standard D03 NG10 Cetop 5 mounting pattern
BulletPoint4 : Lighted when energized DIN electrical connectors and mounting bolts included.
BulletPoint5 : IP 65 dust and water resistance rated
Color : Black
IncludedComponents : Mounting Bolts
ItemDisplayWeight : 10 pounds
ItemName : Hydraulic Directional Control Valve D05 (NG10) 31 GPM 4560 psi AC or DC (M-Motor-Center A&B Blocked and Pressure to Tank, 12VDC)
ItemPackageDimensions_Height : 3 inches
ItemPackageDimensions_Length : 13.5 inches
ItemPackageDimensions_Width : 5 inches
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : Fluidhaus
Material : nbr
MaximumOperatingPressure : 4560 pounds_per_square_inch
ModelName : Hydraulic Valve D05 NG10
ModelNumber : VSD10
NumberOfItems : 1
NumberOfPorts : 4
PartNumber : VSD10
ProductDescription : Hydraulic Directional Control Valve. Proven high quality robust valve design successfully designed into many high volume applications. D05 (NG10) Cetop mounting. Can be mounted to standard available sub plates and bar manifolds. Maximum flow of 31 gpm Maximum working pressure = 4560psi (315 Bar) 3-position, 4-way, Spring centered, energize to shift Double solenoid operated Solenoid Power: DC= 35 watts, AC = 90VA (550VA inrush) Operating temperature = -22֯F to 174֯F Removable Coil Valve can be mounted in any direction Coil can be rotated to optimal connector position Uses DIN 46350 Form A electrical connection type Includes lighted DIN connector for each coil. LED illuminate’s clear connector housing when power is supplied to the connector/coil. IP65 water and dust rating. NBR Buna seals Use with mineral based hydraulic fluid. Four fastening screws included, M6x40mm long White label with no logo for OEM manufacturers. Weight = 10.8 lbs (4.9 kg) Options: Solenoid Voltage: 12VDC, 24VDC, 110VAC (50 or 60 hz), 220VAC (50 or 60 hz) Spool Configurations: M: Motor spool, A and B ports to tank and P port blocked when centered. Actuators will move freely from external forces when the valve is in the center position. Motors and cylinders will coast to a stop when centering. Adding an A&B port P.O. check valve under this valve will ensure a positive stop and hold the position of a motor and cylinder for longer durations. T: Tandem Spool, A and B ports closed and P to T in center position: Actuators will stop in center position and the supply pressure will be directed to tank. Commonly used with fixed displacement gear pumps so pressure can flow direct to tank and not build up heat by blowing across a relieve valve as would be needed with the M and C spool.
ProductSiteLaunchDate : 2021-03-06T19:25:58.832Z
Size : M-Motor-Center A&B Blocked and Pressure to Tank
SpecificationMet : IP, NBR
Style : 12VDC
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40141600
ValveType : spool valve
