Specification
Brand : Jauarta
BulletPoint1 : Easy Control: The switch makes it easy for drivers to control power transmit, especially in environments where frequent start stop operations are needed.
BulletPoint2 : Quick Response: The control valve runs smoothly and responds quickly to the driver's commands, ensuring the power system adjusts state rapidly and improves work efficiency.
BulletPoint3 : High Efficiency: The proportional control valve switch significantly enhances the operational efficiency of dump trucks, reducing equipment wear and energy consumption.
BulletPoint4 : Convenient Use: Control valve Installed in the cab, working with the cylinder to control the dump body's lowering movement through the handle's proportional motion.
BulletPoint5 : Precise and : The switch has 4 working positions to facilitate automatic lifting, lowering, stopping, and slow lowering, providing precise and convenient operations for users.
ExteriorFinish : Machined

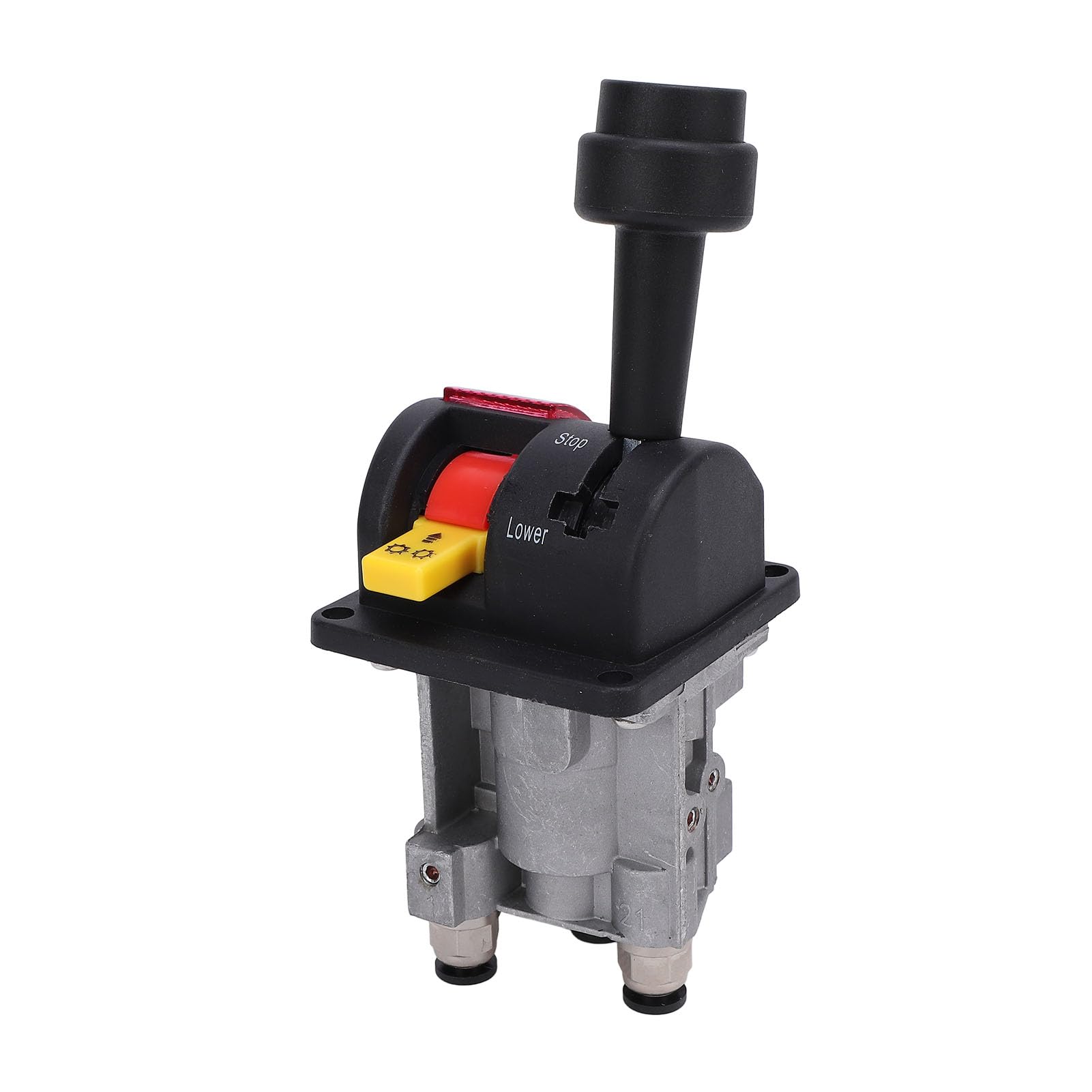

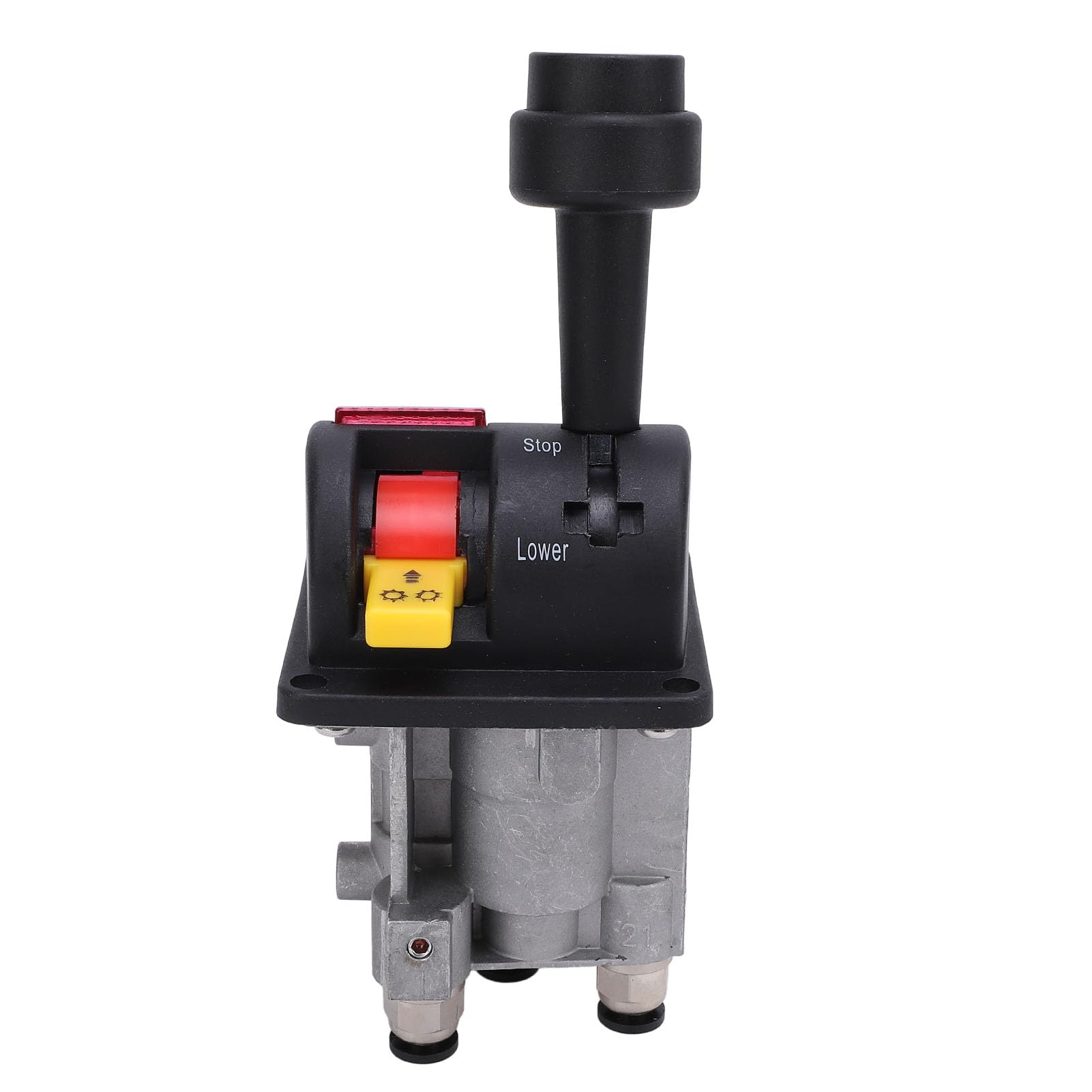

ItemName : Proportional Control Valves 4 Hole Hand Control Slow Down Function Dump Truck Valve Tipper Hydraulic System with 4 Connectors
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 19 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : hydraulic-directional-control-valves
Manufacturer : Jauarta
ModelName : Jauarta2km0u5sota
ModelNumber : Jauarta2km0u5sota
NumberOfItems : 1
PartNumber : Jauarta2km0u5sota
ProductDescription : Specification:
Item Type: Proportional Control Valves
Material: Aluminum + Plastic
Maximum Pressure: 0.12MPA
Minimal Pressure: 0.06MPA
Minimal Temperature: -40°C
Maximum Temperature: 80°C
Features:
1. Installed in the cab for remote control.
2. Valve has 4 working positions: automatic lift, automatic descent, automatic stop, automatic slow descent.
3. The valve is aesthetically pleasing, self locking in the center position, clear switching, easy operations.
4. Working together with the slow descent pneumatic directional valve, achieve fast and slow control of the descent action.
5. Air outlet at the bottom, comes with 4 quick connect air fittings.
Application: Widely used in hydraulic systems of dump trucks, semi trailers, and mining trucks

packing list:
1 x Switch
ProductSiteLaunchDate : 2025-02-26T02:31:03.635Z
UnitCount : 1
UnspscCode : 40141600
