Specification
Brand : Hyuduo
BulletPoint1 : Used in the hydraulic system to test the pressure of each point in the hydraulic system and the pipe as the conductive fluid medium. The hose assembly can be used in conjunction with the pressure measuring point connector
BulletPoint10 : Nozzle Flow: 1.5 GPM (5.68 L/min)
BulletPoint11 : Nozzle Outlet Type: Flow Regulator
BulletPoint12 : Nozzle Outlet Type: Plain End
BulletPoint13 : Pressure Max: Pressure Max: 125 psi (8.62 bar)
BulletPoint14 : Pressure Min: Pressure Min: 20 psi (1.38 bar)
BulletPoint15 : Temperature Max: Temperature Max: 140 F (60℃)
BulletPoint16 : Temperature Min: Temperature Min: 40 F (4.44℃)
BulletPoint17 : 1.5 GPM laminar flow disc
BulletPoint18 : 7 11/16" swivel gooseneck with plain end outlet
BulletPoint19 : Fits all T&S swivel outlet faucets
BulletPoint2 : SCOPE OF APPLICATION: Suitable for pressure measuring tubes of various equipment. In the hydraulic system, it is used to test the pressure of each point in the hydraulic system and as a pipeline for conducting fluid medium. The hose assembly can be used with the pressure measuring point connector.
BulletPoint20 : Material: Chrome plated brass tubular spout
BulletPoint21 : ASME A112.18.1 / CSA B125.1
BulletPoint22 : Country of Origin: USA
BulletPoint23 : Low Lead Content (0.25% Max)
BulletPoint24 : NSF/ANSI 372 (Lead Content)
BulletPoint25 : NSF/ANSI/CAN 61 Q≤1
BulletPoint26 : Box Dimensions: 16.75 x 11.50 x 1.00
BulletPoint27 : Weight: 0.98 lbs (0.44 kg)
BulletPoint28 : UPC: 671262839136
BulletPoint29 : California Prop #65 Warning
BulletPoint3 : [High practicality] The hydraulic system replacement hose has four different lengths to choose from: 1/2/5/10 meters, which can meet your needs.
BulletPoint4 : [Principle of use] The test pressure hose is used in the hydraulic system to test the pressure of each point in the hydraulic system and the pipeline as a conductive fluid medium. The hose assembly can be used with the pressure measuring point connector.
BulletPoint5 : Our test pressure hoses have four different options: 1/2/5/10 meters, you can meet your needs.
BulletPoint6 : Material: Brass Construction
BulletPoint7 : Nozzle: 8 in
BulletPoint8 : Nozzle: Gooseneck
BulletPoint9 : Nozzle: Swivel
Color : defult
ExternallyAssignedProductIdentifier : 8713422001273
ExternallyAssignedProductIdentifier1 : 0671262839136
ExternallyAssignedProductIdentifier2 : 00671262839136
ExternallyAssignedProductIdentifier3 : 671262839136

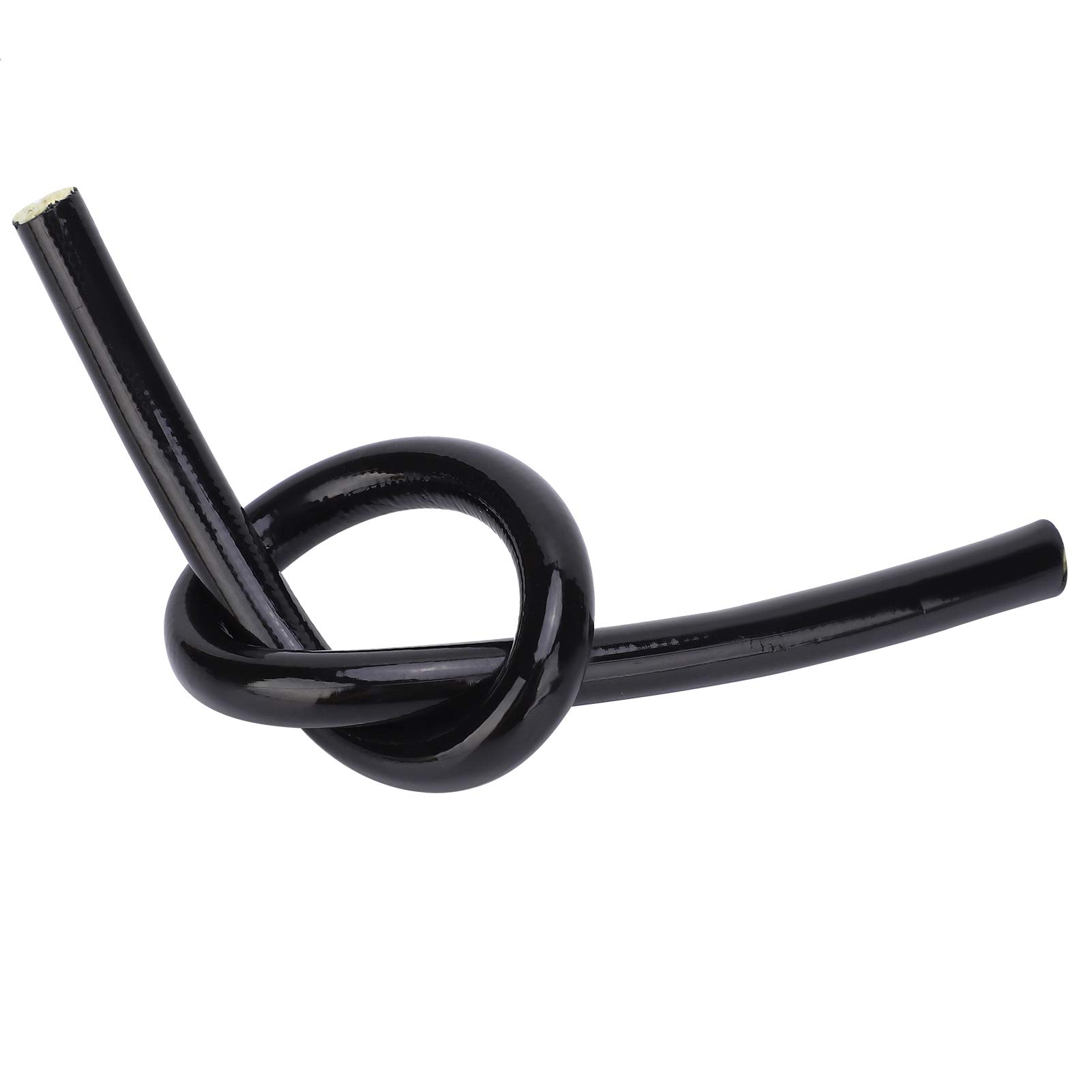

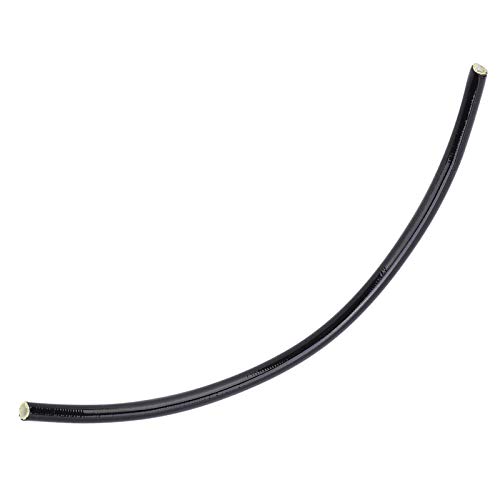

ItemName : Hydraulic Test Hose Test Pressure Hose HighPressure Replacement Kit Hydraulic Test Hose Nylon + Polyurethane + Industrial Fiber Hydraulic Hoses (2m)
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-hoses
Manufacturer : Hyuduo
Material : default
ModelName : Hyuduo2681crbze5-12
ModelNumber : Hyuduo2681crbze5-12
NumberOfItems : 1
PartNumber : Hyuduo2681crbze5-12
ProductDescription : 1. Used in the hydraulic system to test the pressure of each point in the hydraulic system and the pipe as the conductive fluid medium. The hose assembly can be used in conjunction with the pressure measuring point connector
2. Using high‑quality materials, it has the characteristics of oil resistance, acid and alkali resistance, and high pressure resistance
3. The working pressure can reach 630bar and the burst pressure can reach 1600bar
4. The hose adopts the connection form of the crimping joint, which can be easily installed and replaced
5. There are four different lengths for choices: 1/2/5/10 meters, which can meet your needs

Spec:
Item Type: Test Pressure Hose
Material: Nylon, polyurethane, industrial fiber
Lining: Nylon
Reinforcement: Industrial fiber
Cover: Polyurethane
Tube Inner Diameter (I.D.): Approx. 3mm / 0.1in
Tube Outer Diameter (O.D.): Approx. 6mm / 0.2in
Maximum Working Pressure: 63.0MPa (630bar, 9135psi)
Minimum Burst Pressure: 160MPa (1600bar, 23200psi)
Test Pressure: 1000bar
Safety Factor: 2.5: 1
Elongation Under Working Pressure: ±1.5%
Minimum Bending Radius: 20mm
Operating Temperature Range: -40℃～120℃
Product Features: Oil resistance, acid and alkali resistance, high pressure resistance
Scope Of Application: Pressure measuring tubes for a variety of equipment
Joint Form: Crimping joint

packing list:
1 x Hydraulic Test Hose

ProductSiteLaunchDate : 2023-08-23T13:02:31.779Z
Size : 2m
UnitCount : 1
UnspscCode : 40142000
