Specification
Brand : GXMRHWY
BulletPoint1 : RJ45 Jack,8P8C,single Port,1*1,Anglede,Gold, Offset Mount ,DIP Type,UnShielded,with LED,without Filtered
BulletPoint2 : Comprehensive range for all application needs;
BulletPoint3 : Stackable side by side design;
BulletPoint4 : Supports wide variety of low-speed networking applications;
BulletPoint5 : Supports high-speed Gigabit Ethernet applications;

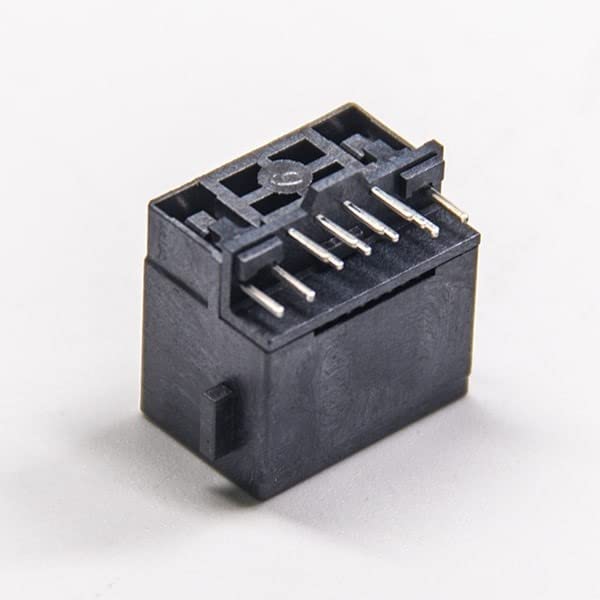

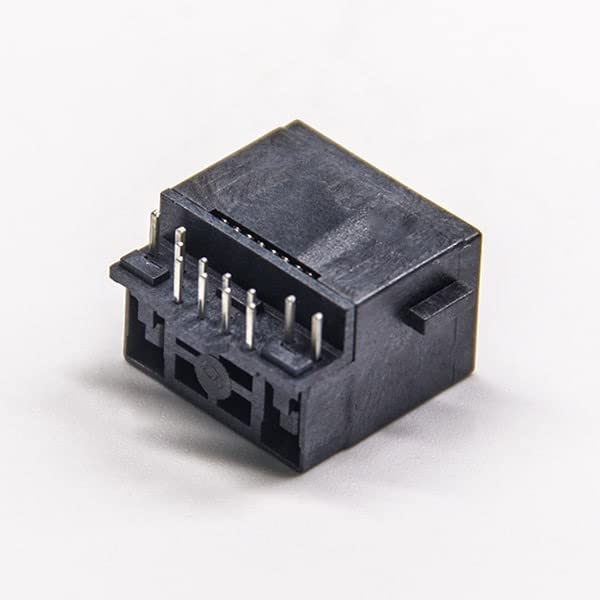

ItemName : GXMRHWY 30PCS Modular RJ45 Socket Unshielded with LED 90 Degree DIP Type
ItemPackageQuantity : 1
ItemTypeKeyword : idc-electrical-terminals
Manufacturer : GXMRHWY
Material : gold
ProductDescription : Applications:
Routers
Ethernet switches
ATMs
Point of sales terminals
Vending machines
Set-top boxes
Technology analysis equipment
Laptops
Phone line security systems
Technical Parameters:
Electrical Characteristics
Current rating: 3A continuous
Insulation resistance: 500MΩ min.
Dielectric withstanding voltage: 1500V min.
Voltage rating 1000V rms
Mechanical Characteristics
Mating force: 5N to 20N
Unmating force: 8N to 20N
Durability:10,000 mating cycles
Environmental Characteristics
Operating Temperature: -40°C~ + 120°C
Material:
Part
Material
Finish
Housing
Nylon 46 glass filled
UL94V-0
Shield
Copper Alloy
Nickel Plating
Contact
Copper Alloy
Au over nickel

ProductSiteLaunchDate : 2022-11-23T14:19:35.932Z
UnspscCode : 39121400
