Specification
Brand : LanMaiXun
BulletPoint1 : Material: 304 stainless steel, grade 4.8, right-hand
BulletPoint2 : Metric thread, pitch： M3-0.5mm
BulletPoint3 : Thread length after installation:3mm
BulletPoint4 : Packing Quantity:200pcs
BulletPoint5 : Compatible with Helicoil Save-A-Thread
Color : M3
ExteriorFinish : Stainless Steel
ExternallyAssignedProductIdentifier : 5056133365344
ExternallyAssignedProductIdentifier1 : 0790694281105
ExternallyAssignedProductIdentifier2 : 790694281105
FinishType : Unfinished
FitType : Universal
GpsrSafetyAttestation : 1
GradeRating : Class 4.8
ItemName : 200pcs M3-0.5×1D Wire Thread Insert Assortment Metric,Stainless Steel Helicoil Type Thread Repair Insert
ItemPackageDimensions_Height : 1 inches
ItemPackageDimensions_Length : 1 inches
ItemPackageDimensions_Width : 1 inches
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-thread-repair-inch-inserts
Manufacturer : LanMaiXun
Material : Stainless Steel
Material1 : Stainless Steel
Material2 : Aluminum
Material3 : Steel
MeasurementSystem : Inch
MetalType : Stainless Steel
MetalType1 : Stainless Steel
MetalType2 : Aluminum
MetalType3 : Alloy Steel
MetalType4 : Magnesium
ModelNumber : ワイヤースレッドインサート
NumberOfItems : 200
NumberOfPieces : 8
OemEquivalentPartNumber : 71111113291
PartNumber : YT3x1D200
ProductDescription :

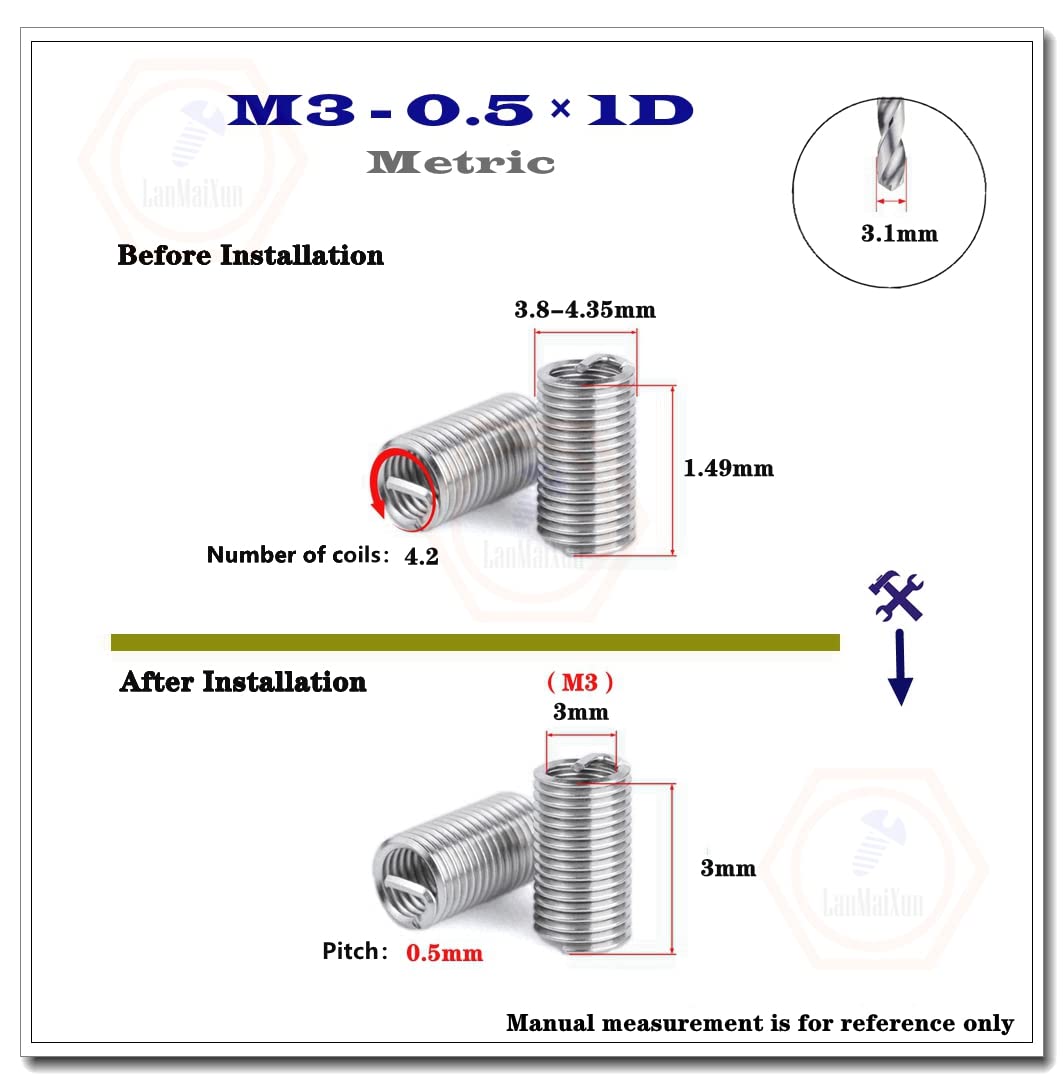

★ Dimension description: for example: M3×2D(0.5)
M3 means the thread diameter is 3mm, thread pitch is 0.5mm,
★ 2D indicates that the maximum length of the Helical Insert after installation is 2 times of the diameter。

★ Strengthen the connection strength and improve the connection conditions. Low strength materials such as aluminum and magnesium shall be used for the steel wire screw sleeve. Thread slipping can be avoided. Tooth dislocation. Excellent connection performance is obtained.
★ Wear resistance. Frequently disassembled parts can greatly improve the service life of the thread.
★ Increase the bearing surface. It is used for parts that require strong coupling force but cannot increase the diameter of screw hole.
★ Anti loosening. Especially for products requiring high safety factors such as spacecraft.
★ Easy to maintain. Install the damaged screw hole into the steel wire screw sleeve and use it again after repair to avoid the possibility of workpiece damage.

★ Installation method of steel wire screw sleeve
1. Use standard drill through to drill holes first.
2. Use a special tap for tapping. Note that the tapping length should be longer than the length of the steel wire thread sleeve.
3. Clean the holes with compressed air gun.
4. Use a wrench to insert the mounting handle into the core groove, and rotate the wrench to apply pressure on the screw sleeve and rotate the thread into the bottom hole of the thread.
5. Use a punch to break the mounting handle.

★★★ The schematic diagram is manual measurement for reference only. Need larger diameter, please contact me if you need!
ProductSiteLaunchDate : 2023-11-09T11:36:20.910Z
Size : M3-0.5×1D-200pcs
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 200
UnspscCode : 31161500
