Specification
BatteriesRequired : 1
Brand : RuoShui
BulletPoint1 : Max voltage 30V Power consumption About 360mA/5V Storage humidity 90%RH loop calibrator
BulletPoint2 : 709H with HART communication, Support HART general instructions
BulletPoint3 : Electrical safety EN61010-1:2001 EMC EN61326-1:2006
BulletPoint4 : Perform diagnostic testing and calibration to fine tune the most HART transmitter
BulletPoint5 : Protection level : IP65(Dust,Water spray) Display :3.2 inch TFT color display
Color : Orange
IncludedComponents : RUOSHUI 709H
ItemLength : 15 centimeters
ItemName : RUOSHUI Multi-function Calibration 709H Max voltage 30V Power consumption About 360mA/5V Storage humidity 90% RH loop calibrator(RUOSHUI 709H)
ItemPackageDimensions_Height : 18 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : infrared-thermometers
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : Xi'an Beicheng Electronics Co.Ltd(RUOSHUI)
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : 0.1%
ModelNumber : EO-RUOSHUI 709H
NumberOfItems : 1
PackageLevel : unit
PartNumber : EO-RUOSHUI 709H
PowerSourceType : Battery Powered
ProductDescription : RUOSHUI 709H Max voltage 30V Power consumption About 360mA/5V Storage humidity 90%RH loop calibrator

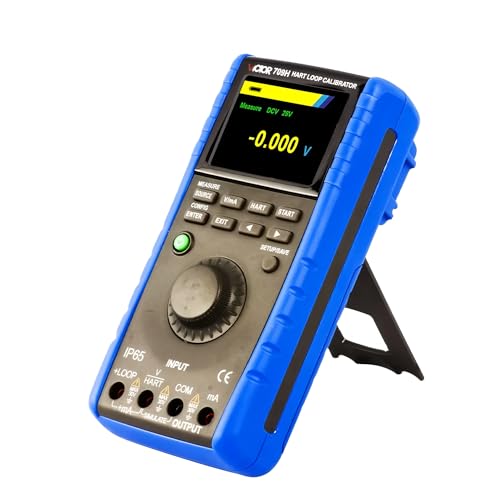

709H with HART communication, Support HART general instructions and general application instructions. Able to read the device basic information, perform diagnostic testing and calibration to fine tune the most HART transmitter, can store up to 20 HART device configuration file.
General Specifications

Power supply : four 1.5V alkaline batteries(LR6)
Battery life : about 360mA /5V under the condition of 20mA with 1kΩ load
Max. permitted voltage : 30V(between any two terminals or between any terminal and earth ground)
Operating temperature : 0°C～50°C
Operating relative humidity : ≤ 80%RH
Storage temperature : ≤ - 20°C～60°C
Relative humidity for storage : ≤ 90%RH
Temperature co-efficiency : 0.1×Basic accuracy/ ℃(Temperature<18℃ or >28℃)
Protection level : IP65(Dust,Water spray)
Display :3.2 inch TFT color display
Size : 206(L)×97(W)×60(D)mm
Weight : 600g
Safety : EN61010-1:2001
Accessories : The test pen(H000000-00)
Industrial test lead(H000002-00)
Crocodile clip(H010000-00)
VC709H Quick guide_English(E100073-00)
VC709H Product qualification certificate_ English(E300018-00)
VC709H Product user manual _ English(E400022-00)
Insurance tube(D610000-00)
5alkaline battery(D620002-00)
Option PC infrared communications accessories package(Z070102-0000-00)
Linear power adapter(DC5V)(P070003-00)
Hook type tester(H000004-00)
ProductSiteLaunchDate : 2025-03-30T07:03:37.054Z
ResponseTime : 1 seconds
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SpecificationMet3 : UL
Style : Process Calibrator
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41112224
UpperTemperatureRating : 60 degrees_celsius
Wattage : 5 watts
