Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : KYOHRITSU
BulletPoint1 : ■HIGH VOLTAGE INSULATION TESTER KEW 3128, Test Voltage 12kV (max), Resistance 35TΩ (max)
BulletPoint2 : ■Insulation Tester 3128 Short-Circuit Current 5mA (max), Internal Memory store up to 43,000 data
BulletPoint3 : ■The insulation resistance and leakage current versus time on large display, backlight
BulletPoint4 : ■Print Screen Function enables to record up to 32 display screens
BulletPoint5 : ■Can be operated from internal rechargeable battery or from AC line, IP64
Color : Blue
Hazmat1 : un1993
IncludedComponents : EC-KEW-3128

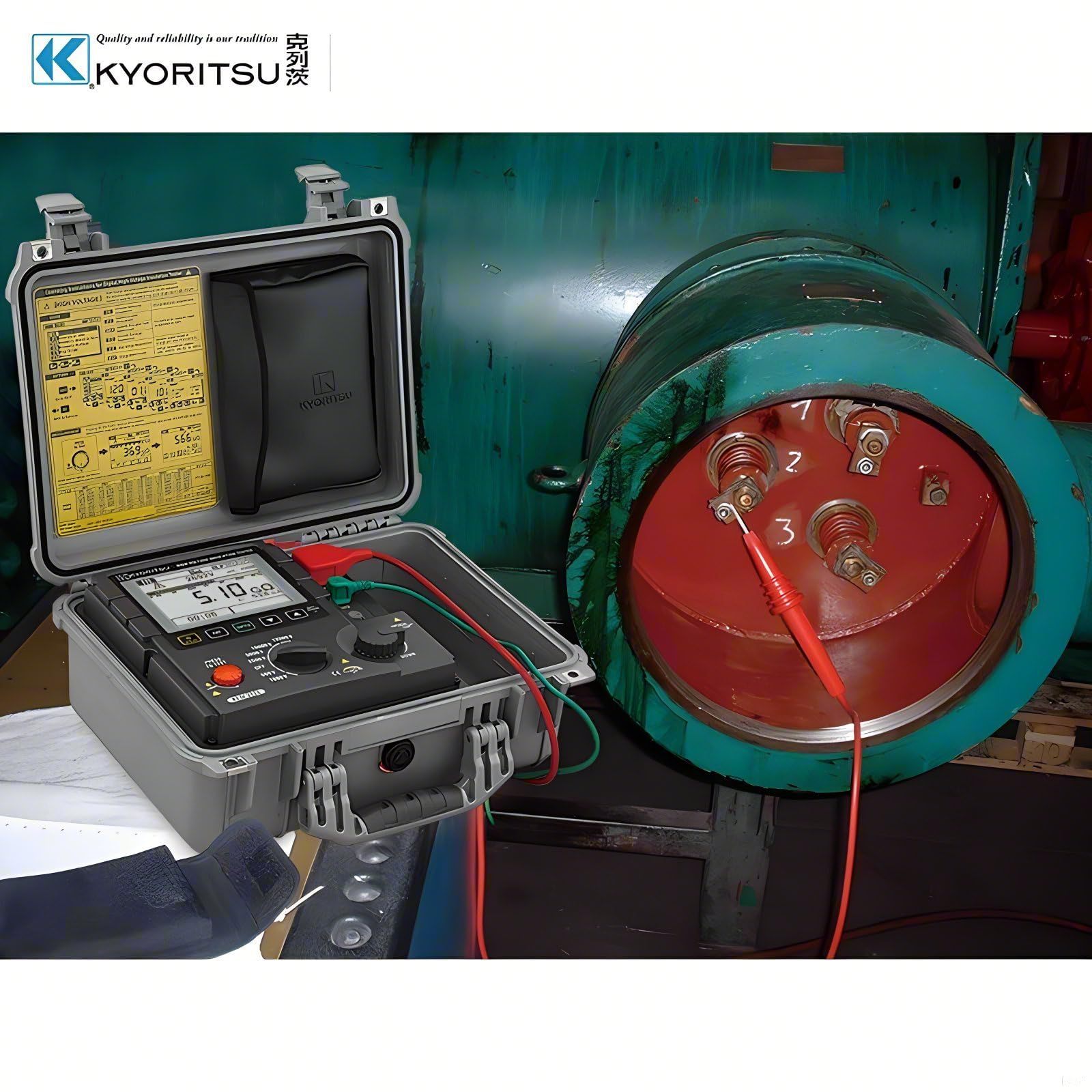

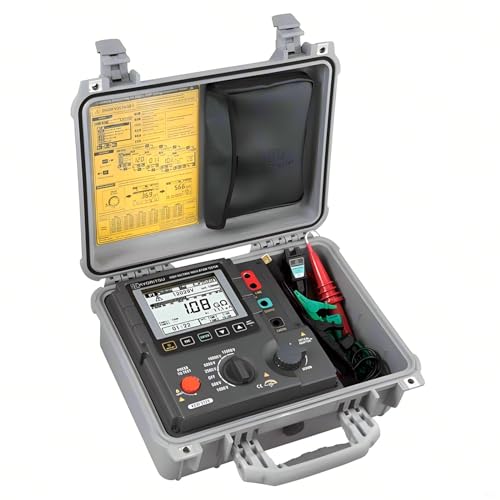

ItemName : Japan Quality KYORITSU Digital Analog Insulation Continuity Tester KEW 3128 12000V 35TΩ HIGH Voltage Insulation Tester Insulation Tester Ohm Tester Resistance Meter Tester Megohmmeter
ItemPackageDimensions_Height : 120 millimeters
ItemPackageDimensions_Length : 160 millimeters
ItemPackageDimensions_Width : 200 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : insulation-resistance-meters
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : KYORITSU Japan
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : +-0.1%
ModelName : Akozonmh61od4sez
ModelNumber : EC-KEW-3128
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : EC-KEW-3128
PowerSourceType : Battery Powered
ProductDescription : Japan Quality KYORITSU DIGITAL ANALOG INSULATION CONTINUITY TESTER KEW 3128 12000V 35TΩ HIGH VOLTAGE INSULATION TESTER INSULATION TESTER Ohm Tester Resistance Meter Tester Megohmmeter(3128)
Test Voltage 12kV (max), Resistance 35TΩ (max)
Short-Circuit Current 5mA (max)
Graphic representation of the insulation resistance and leakage current versus time on large display with bar graph and backlight
Print Screen Function enables to record up to 32 display screens
Internal Memory can store about 43,000 data (max)
Can be operated from internal rechargeable battery or from AC line
Robust design for field use with IP64 rating (with lid closed)
Voltage measurement
Measuring range DCV：±30 ～ ±600V、ACV：30 ～ 600V （50/60Hz）
Accuracy ±2%rdg±3dgt
Current measurement
Measuring range 5.00nA - 2.40mA (Depending on the insulation resistance)
Capacitance measurement
Measuring range 5.0nF ～ 50.0μF
(500V/1000V/2500V/5000V) 40.0nF - 1.00μF (Display range : 5.0nF - 60.0μF) (10000V/12000V) Accuracy ±5%rdg±5dgt
General
Storage temperature and humidity range -20ºC - 60ºC / Relative humidity 75% or less (no condensation)
Power source Rechargeable Lead storage battery (12V)*
Charging time: approx. 8 hours / AC Power supply (100V - 240V, 50/60Hz)
* Continuous measuring time:
Approx. 4 hours
(a load of 100MΩ at the Insulation resistance 12000V Range.)
Approx. 2 hours
(Max current consumption in range while rated currents are maintained.)
Dimension 330 (L) × 410 (W) × 180 (D) mm *Instrument and Hard case
Weight Approx. 9kg (including battery) *Instrument and Hard case
Accessories 7170(Power cord[EU]) or 7240(Power cord[UK])
7224A (Earth cord)
7225A (Guard cord)
7226A (Line probe) 7227A (Line probe with alligator clip)
8029 (Extension prod)
8212-USB (USB adapter)
Instruction manual
ProductSiteLaunchDate : 2024-06-23T05:23:20.801Z
Size : KEW-3166
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SpecificationMet3 : UL
Style : High Voltage Insulation Tester
SupplierDeclaredDgHzRegulation : transportation
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43222600
UpperTemperatureRating : 60 degrees_celsius
Wattage : 5 watts
