Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : KYOHRITSU
BulletPoint1 : ■PV INSULATION EARTH TESTER KEW 6024PV, Accurate measuring of Insulation resistance
BulletPoint2 : ■No need to short circuit the PV arrays or test at night to measure the Insulation resistance
BulletPoint3 : ■Earth resistance measurements with Voltamperometric method at 3 and 2 pole
BulletPoint4 : ■Waterproof design, ideally suited to work in bad weather condition, Memory function up to 1000 data
BulletPoint5 : ■Luminescence buttons and Backlight display, Compact and light weight, Auto-discharge, USB interface
Color : Blue
Hazmat1 : un1993
IncludedComponents : EC-KEW-6024PV

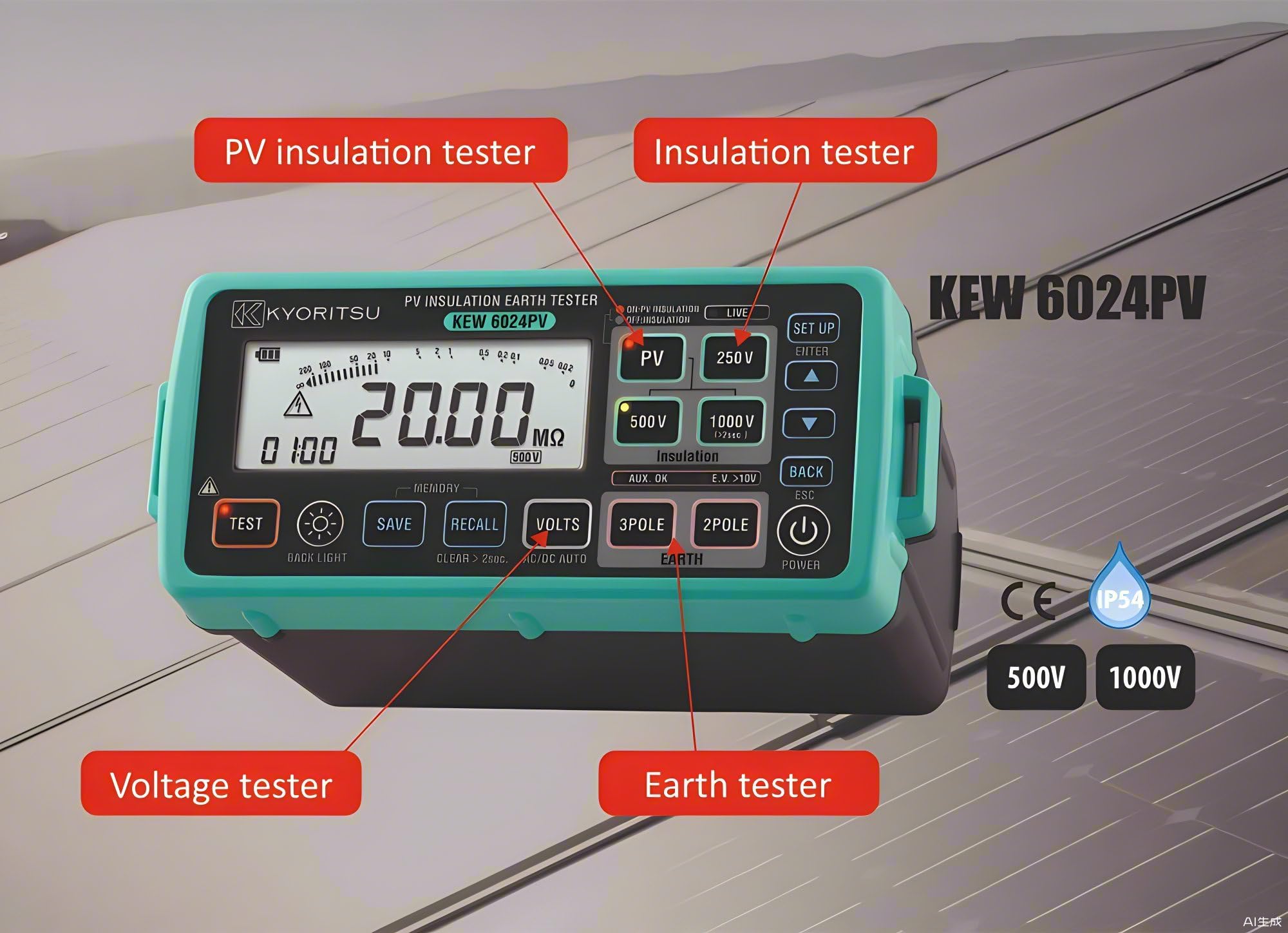

ItemName : Japan Quality KYORITSU Multi Function Tester KEW 6024PV 4 in one PV Insulation Tester Insulation Earth Resistance Tester Earth Voltage Tester
ItemPackageDimensions_Height : 120 millimeters
ItemPackageDimensions_Length : 160 millimeters
ItemPackageDimensions_Width : 200 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : insulation-resistance-meters
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : KYORITSU Japan
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : +-0.1%
ModelName : Akozonmh61od4sez
ModelNumber : EC-KEW-6024PV
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : EC-KEW-6024PV
PowerSourceType : Battery Powered
ProductDescription : Japan Quality KYORITSU MULTI FUNCTION TESTER KEW 6024PV 4 in one PV Insulation Tester Insulation Earth Resistance Tester Earth Voltage Tester(6024PV)
Accurate measuring of Insulation resistance even if the PhotoVoltaic (PV) arrays are generating power
No need to short circuit the PV arrays or test at night to measure the Insulation resistance
Earth resistance measurements with Voltamperometric method at 3 and 2 pole
Waterproof design, ideally suited to work in bad weather condition
Memory function up to 1000 data
Luminescence buttons and large Backlight display
Elapsed time, after starting a measurement, is displayed with the measured values
Compact and light weight
Test probe with a remote control switch is supplied as standard accessory
Auto-discharge with voltage display
USB adapter for data transfer to pc and software for analysis are supplied
Earth resistance
Measuring range(Auto-ranging) 20.00/200.0/2000Ω
Accuracy ±3.0%rdg±0.1Ω (20Ω range)
±3.0%rdg±3dgt (200/2000Ω range)
Voltage measurement
Measuring range AC 5 - 600V (45 - 65Hz) DC ±5 - 1000V
Accuracy ±1.0%rdg±4dgt
General
Applicable Standards IEC 61010-1 CAT Ⅳ 300V / CATⅢ 600V Pollution degree 2
IEC 61010-2-030, IEC 61010-2-034, IEC 61010-031, IEC 60529(IP54)
IEC 61557-1,2,5,10, IEC 61326-1,2-2
Power source LR6(AA)(1.5V) × 6
Dimension 84(L) × 184(W) × 133(D)mm
Weight Approx. 900g (including batteries)
Accessories 7196B(Test leads with remote control switch)
7244A(Test lead with alligator clip)
8017(Extension prod long)
8072(CATⅡStandard prod)
8212-USB(USB adapter)
9155(Shoulder strap)
9156A(Soft case)
LR6(AA) × 6,
Instruction manual
Optional Accessories 7243A(L-shaped probe)
7245A(Precision measurement cord set)
8016(Hook type prod)
*6024PV supports PV systems up to 1000V.

ProductSiteLaunchDate : 2024-06-23T12:09:00.536Z
Size : M
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SpecificationMet3 : UL
Style : High Voltage Insulation Tester
SupplierDeclaredDgHzRegulation : transportation
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 46150000
UpperTemperatureRating : 60 degrees_celsius
Wattage : 5 watts
