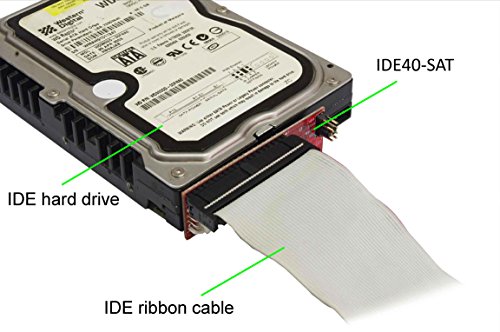

The Ableconn IDE40-SAT allows you to install a SATA drive to the motherboard with IDE/ATA connector. It's the easiest and cost effective solution to replace existing IDE drives with newer cost-effective SATA drives to your systems that are only equipped with IDE interfaces. Features * Connector: - 1 x IDE (40-pin, PATA) Male (to be connected with a standard 40-pin IDE cable) - 1 x SATA Data & Power (7 + 15 pins) (direct attach to SATA drive) - 1 x SP4 (4-pin; floppy style small drive power) Male * Chipset: Marvell 88SA8052 * Data transfer rate: - Up to 150 MBps * Jumper Selection: - 1 x jumper for selection of Master/Slave/Cable Select modes * Software: - OS independent; No driver installation required - Support Windows, Macs, and Linux * SATA II 3Gbps controller Mini vertical Adapter Board * Supports any type of SATA III, SATA II and SATA I Device (Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk) * Convert a SATA Drive like a standard IDE/ATAPI Drive * 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB * Compliant with Serial ATA 2.6 * Bootable * Jumper setting support IDE Master, Slave and Cable Select Modes * Tag Command Queuing (Max 32 entries) * ATA/ATAPI PIO mode data transfer * ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s * ATA/ATAPI-7 Streaming feature set * Fully RoHS compliant * Made in Taiwan Package Contents * Ableconn IDE40-SAT IDE to SATA Hard Drive or Optical Drive Mini Adapter * 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
Features
1) Convert any SATA drive into 40-pin IDE interface just like a standard IDE/ATAPI drive. Ideal for computers or embedded systems that are not equipped with SATA controllers.
2) Supports any type of SATA III, SATA II and SATA I Devices such as Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk, etc.
3) Complete hardware solution; no driver installation is required. Compatible with any OS such as: Windows, DOS, Mac, Linux, etc. that support IDE/ATAPI storage devices

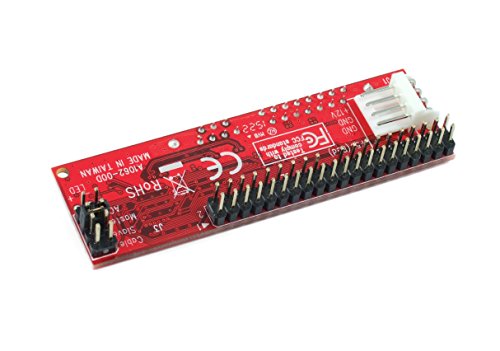

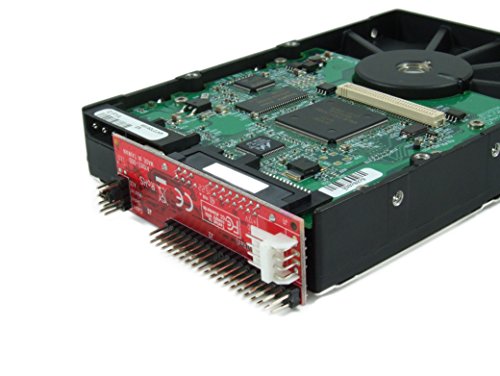

4) Mini vertical board with size only 3" (L) x 0.9" (W) and mount directly to the back of SATA drive.
5) Fully RoHS compliant. Made in Taiwan.
Specification
Binding : Electronics
Brand : Ableconn
HardwarePlatform : mac
Label : Ableconn
Manufacturer : Ableconn
Model : IDE40-SAT
PackageDimensions_Weight : 0.05 pounds
PackageDimensions : L:5.51 X W:4.02 X H:1.42
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : Ableconn
Studio : Ableconn
Title : Ableconn IDE40-SAT SATA Hard Drive or Optical Drive to IDE 40-Pin Mini Vertical Adapter - SATA HDD / SSD / ODD to 40Pin IDE PATA Motherboard Converter
The Ableconn IDE40-SAT allows you to install a SATA drive to the motherboard with IDE/ATA connector. It's the easiest and cost effective solution to replace existing IDE drives with newer cost-effective SATA drives to your systems that are only equipped with IDE interfaces. Features * Connector: - 1 x IDE (40-pin, PATA) Male (to be connected with a standard 40-pin IDE cable) - 1 x SATA Data & Power (7 + 15 pins) (direct attach to SATA drive) - 1 x SP4 (4-pin; floppy style small drive power) Male * Chipset: Marvell 88SA8052 * Data transfer rate: - Up to 150 MBps * Jumper Selection: - 1 x jumper for selection of Master/Slave/Cable Select modes * Software: - OS independent; No driver installation required - Support Windows, Macs, and Linux * SATA II 3Gbps controller Mini vertical Adapter Board * Supports any type of SATA III, SATA II and SATA I Device (Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk) * Convert a SATA Drive like a standard IDE/ATAPI Drive * 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB * Compliant with Serial ATA 2.6 * Bootable * Jumper setting support IDE Master, Slave and Cable Select Modes * Tag Command Queuing (Max 32 entries) * ATA/ATAPI PIO mode data transfer * ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s * ATA/ATAPI-7 Streaming feature set * Fully RoHS compliant * Made in Taiwan Package Contents * Ableconn IDE40-SAT IDE to SATA Hard Drive or Optical Drive Mini Adapter * 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
