Product Information
Editorial Review
The Ableconn IDE44-SAT allows you to install a SATA HDD or SSD to the motherboard with IDE/ATA connector. It's the easiest and cost effective solution to replace existing IDE drives with newer cost-effective SATA drives to your systems that are only equipped with IDE interfaces. Specification * Connector: - 1 x IDE (44-pin, PATA) Male (to be connected with a standard 44-pin IDE cable) - 1 x SATA Data & Power (7+15 pins) (direct attach to SATA drive) * Chipset: Marvell 88SA8052 * Data transfer rate: - Up to 150 MBps * Jumper Selection: - 1 x jumper for selection of Master/Slave/Cable Select modes * Software: - OS independent; No driver installation required - Support Windows, Macs, and Linux * Support 5V SATA III, SATA II and SATA I Drive and SSD * SATA II 3Gbps controller Mini vertical Adapter Board * 44Pin 2.0mm IDE male connector for 5V DC and ATA signals * PCBA and SATA drive powered by Pin 41& 42 of IDE connector 5V input * 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB * Compliant with Serial ATA 2.6 * Bootable * ATA/ATAPI PIO mode data transfer * ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s * Tag Command Queuing (Max 32 entries) * ATA/ATAPI-7 Streaming feature set * Fully RoHS Compliant * Made in Taiwan Package Contents * Ableconn IDE44-SAT IDE 44-Pin to SATA Drive Mini Adapter
Features

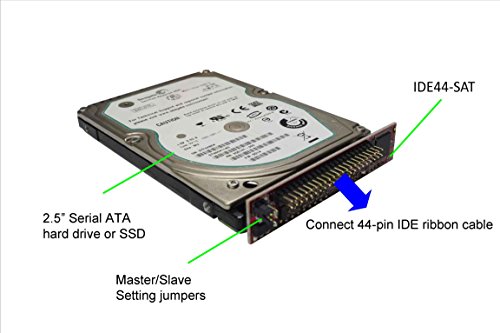

1) Convert any 2.5" SATA drive into 44-pin IDE interface just like a standard 2.5" IDE drive. Ideal for computers or embedded systems that are not equipped with SATA controllers.
2) Support 5V SATA III, SATA II and SATA I Drive and SSD
3) Complete hardware solution; no driver installation is required. Compatible with any OS such as: Windows, DOS, Mac, Linux, etc. that support IDE/ATAPI storage devices
4) Mini vertical board with size only 2.7" (L) x 0.6" (W) and mount directly to the back of SATA drive.
5) Fully RoHS compliant. Made in Taiwan.
Specification
Binding : Electronics
Brand : Ableconn
HardwarePlatform : mac
Label : Ableconn
Manufacturer : Ableconn
Model : IDE44-SAT
PackageDimensions_Weight : 0.04 pounds
PackageDimensions : L:5.59 X W:4.09 X H:1.69
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : Ableconn
Studio : Ableconn
Title : Ableconn IDE44-SAT SATA Drive to IDE 44-Pin Mini Vertical Adapter - SATA Drive to 44Pin IDE PATA Motherboard Converter
