Specification
Amperage : 150 amps
Brand : eletechsup
BulletPoint : Module 6ES7 972-0CB35-0XA0
BulletPoint1 : Input level : 3-8V/9-24V two versions Output level: 3-8V/9-24V two versions
BulletPoint2 : Working current: 3-8V out version 4-20MA; 9-24V out version 6-25MA
BulletPoint3 : Input signal type: NPN/PNP Output signal type: NPN/PNP
BulletPoint4 : Input signal current: 3-8V version 4-15MA; 9-24V version 3-9MA Output signal current: 3-8V version 1-3MA; 9-24V version 2-5MA
BulletPoint5 : This is a 8-channel photoelectric isolation module, which can realize NPN to NPN(PNP to PNP) conversion, and can realize any level conversion of 3-24V. It is a reliable MCU PLC input and output port isolation module.
Color : In 3-8V Out 9-24V 100V(with Box) PNP to PNP
ExternallyAssignedProductIdentifier1 : 0765057026617
ExternallyAssignedProductIdentifier2 : 765057026617
IncludedComponents : only Board with Box
ItemName : eletechsup 3.3V 5V 12V 24V Logic Level Converter NPN PNP Wet Contact 8ch PLC Digital Switch IO Isolation Protection Board (in 3-8V Out 9-24V 100V(with Box) PNP to PNP)
ItemPackageQuantity : 1
ItemTypeKeyword : io-modules
Manufacturer : eletechsup
Material : Copper
ModelNumber : 6MBP75RSA-120-03
NumberOfItems : 1
PartNumber : OP31C08
PhaseType : three phase,three-phase
ProductDescription :

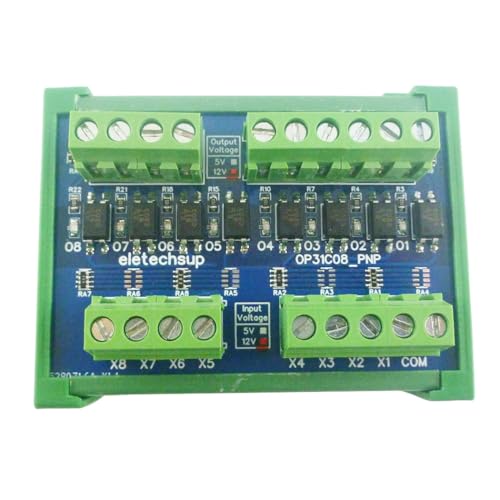

Product Name:3.3V 5V 12V 24V Logic Level Converter NPN PNP Wet Contact 8ch PLC Digital Switch IO Isolation Protection Board

Packing list:

1 PCS 8CH DC 3.3V/5V/12V/24V NPN

PNP Opto-isolated level conversion Board

Description:

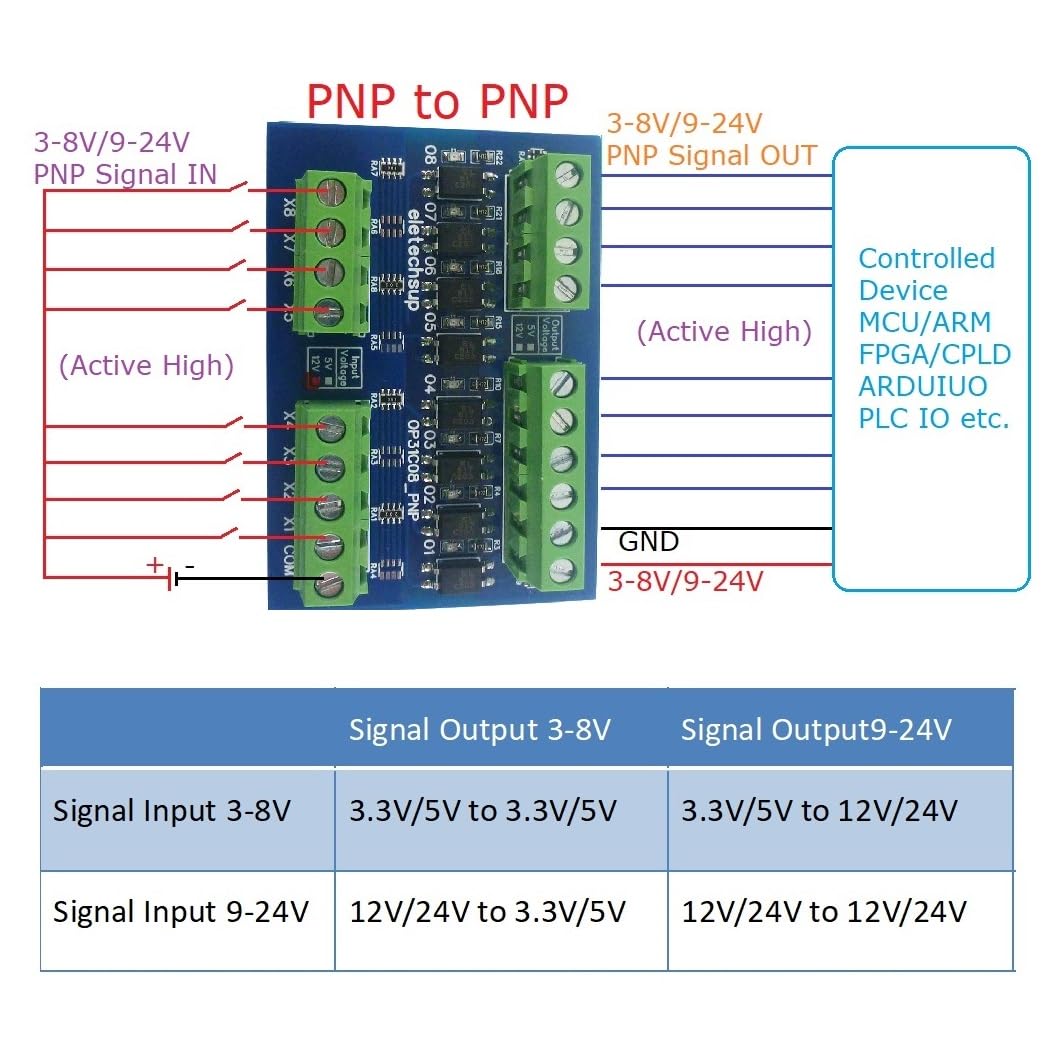

This is a 8-channel photoelectric isolation module, which can realize NPN to NPN(PNP to PNP) conversion, and can realize any level conversion of 3-24V. It is a reliable MCU PLC input and output port isolation module.

Input level : 3-8V/9-24V two versions

Output level: 3-8V/9-24V two versions

Working current: 3-8V out version 4-20MA; 9-24V out version 6-25MA

Input signal type: NPN/PNP

Output signal type: NPN/PNP

Input signal current: 3-8V version 4-15MA; 9-24V version 3-9MA

Output signal current: 3-8V version 1-3MA; 9-24V version 2-5MA

Isolation voltage: 3000V

Signal frequency: <10KHz

Working temperature: -40-110 degrees Celsius

Conversion type: NPN to NPN; PNP to PNP

Size: 72*50*18MM(only Board);76*63*44MM(with Box)

Weight: 37 grams(only Board);75 grams(with Box)

In 3-8V,Out 3-8V Version ,Suitable for the following level conversions

3.3V to 3.3V

3.3V to 5V

5V to 3.3V

5V to 5V

In 3-8V,Out 9-24V Version ,Suitable for the following level conversions

3.3V to 12V

3.3V to 24V

5V to 12V

5V to 24V

In 9-24V,Out 3-8V Version ,Suitable for the following level conversions

12V to 3.3V

12V to 5V

24V to 3.3V

24V to 5V

In 9-24V,Out 9-24V Version ,Suitable for the following level conversions

12V to 12V

12V to 24V

24V to 12V

24V to 24V

ProductSiteLaunchDate : 2024-06-28T03:14:31.369Z
Size : 50 hp 37 kw
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 32000000
Voltage : 220 volts
Wattage : 37 kilowatts
