Specification
Brand : EMCONRTOL
BulletPoint : ETH-MODBUS-I05R Ethernet Module MODBUS TCP Communication Acquisition Digital Analog Ethernet Port IO Expansion Module 5 into 5 Output Relay Type
BulletPoint1 : Standby current (DC 12V) 4MA, 1 relay open 20MA, ...,32 relay open 432MA
BulletPoint2 : ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all'' 8 Commands
BulletPoint3 : Standard MODBUS RTU command, Write 05/06/15/16, Read 01/03
BulletPoint4 : Under the ''Delay'' command ,the maximum delay is 255 seconds;
BulletPoint5 : MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
BulletPoint6 : Under the MODBUS command mode, it can support up to 64 devices in parallel
CircuitType : 1-way
Color : One Color
ConnectivityProtocol : Z-Wave
ConnectorType : Screw
ControllerType1 : Amazon Alexa
ControllerType2 : Google Assistant
ControllerType3 : SmartThings
ControlMethod1 : application
ControlMethod2 : remote
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 7438203545197
ExternallyAssignedProductIdentifier1 : 0606227969979
ExternallyAssignedProductIdentifier2 : 606227969979
Hazmat : 9
IncludedComponents : 1 x Shelly Wave Shutter US, User Manual
InternationalProtectionRating : IP00

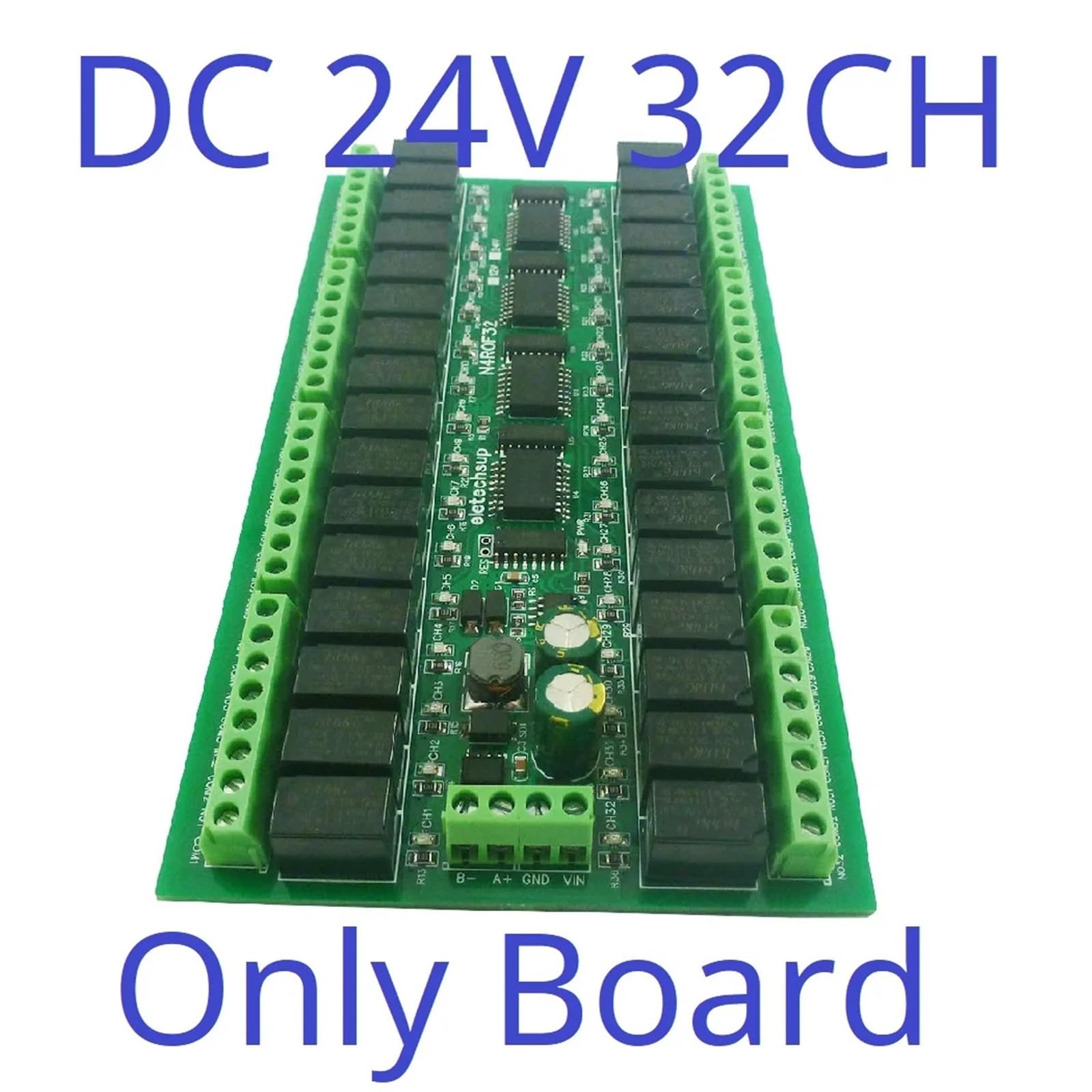

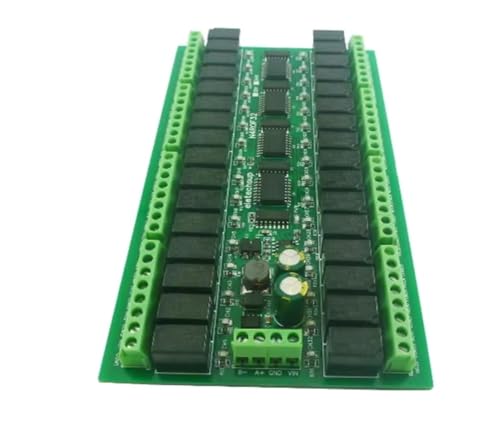

ItemName : Mini Size 32CH RS485 Relay Modbus Rtu PLC IO Expansion Module 2A Low Power Intermediate Relay Output Board DIN Rail DC 12V 24V(DC 24V Only Board)
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 17 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : io-modules
LightType : Non-Illuminated
LowerTemperatureRating : -5 degrees_fahrenheit
Manufacturer : EMCONRTOL
Material : Plastic
ModelName : N4ROF32
ModelNumber : N4ROF32
MountingType : Flush Mount
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPositions : 1
OperatingVoltage : 120 volts_of_alternating_current
OperationMode : ON-OFF
PackageLevel : unit
PartNumber : N4ROF32
ProductDescription : Packing list: 1PCS (select the version you need)

Description:
Working voltage DC 12V/24V;
Standby current (DC 12V) 4MA, 1 relay open 20MA, ...,32 relay open 432MA
''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all'' 8 Commands
Standard MODBUS RTU command, Write 05/06/15/16, Read 01/03
Under the ''Delay'' command ,the maximum delay is 255 seconds;
MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
Under the MODBUS command mode, it can support up to 64 devices in parallel
Baud_rate : 1200/2400/4800/9600(Default)/19200/38400/57600/115200BPS
Parity :None(Default)/Even/Odd
Terminal specification: 3.96MM pitch, 2.5MM slotted screw
Size : 142*80*12MM(Only Board);145*88*36MM(With DIN Box);
Weight : 138g(Only Board),238g(With DIN Box)
Maximum load: 2A/120VAC ,2A /24VDC(Resistive load within 2A or inductive load within 1A)

For more information, please contact me

Application
PLC Output expansion board
HMI Configuration Software
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Mini Motor FW & BW
Automatic curtain control
LED Control
ProductSiteLaunchDate : 2024-12-14T04:03:51.395Z
Size : DC 24V Only Board
SpecificationMet1 : UL
SpecificationMet2 : RoHS
Style : Compact
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Ignition Switch
TerminalType : Screw
UnitCount : 1
UnspscCode : 39122300
UpperTemperatureRating : 105 degrees_fahrenheit
Voltage : 9 volts
Wattage : 0.3 watts
