Brand : Respicefinem
BulletPoint1 : Wide Voltage Range and Low Power Consumption: The expansion board operates from DC 6.5-30V (7.5V, 9V, 12V, 15V, 24V) and has an operating current as low as 8-50mA, which makes it suitable for a variety of power supply schemes.
BulletPoint2 : Isolated Inputs and Darlington Outputs: The expansion board features 16 isolated input ports (NPN active at low level) and 16 Darlington outputs (ULN2803 NPN outputs) to ensure stable signal transmission and control.
BulletPoint3 : Advanced Control Commands: The expansion board supports 6 commands: open, close, momentary, self-lock, interlock and delay. The maximum delay time is 255 seconds, providing flexible control options for a variety of applications.
BulletPoint4 : RS485 Remote Control and Modbus RTU Support: This expansion board allows remote control of another board's 16-channel output via the RS485 bus. Supports Modbus RTU function codes 03 and 06, and some registers support function code 16.
BulletPoint5 : High connectivity: The expansion board can connect up to 64 devices in parallel. The default baud rate is 9600 BPS, adjustable to 2400, 4800, and 19200 BPS. The DIN rail box (model UM72, green) is designed for easy mounting on DIN35 and C45 rails, and is approximately 72 mm (2.8 inches) wide

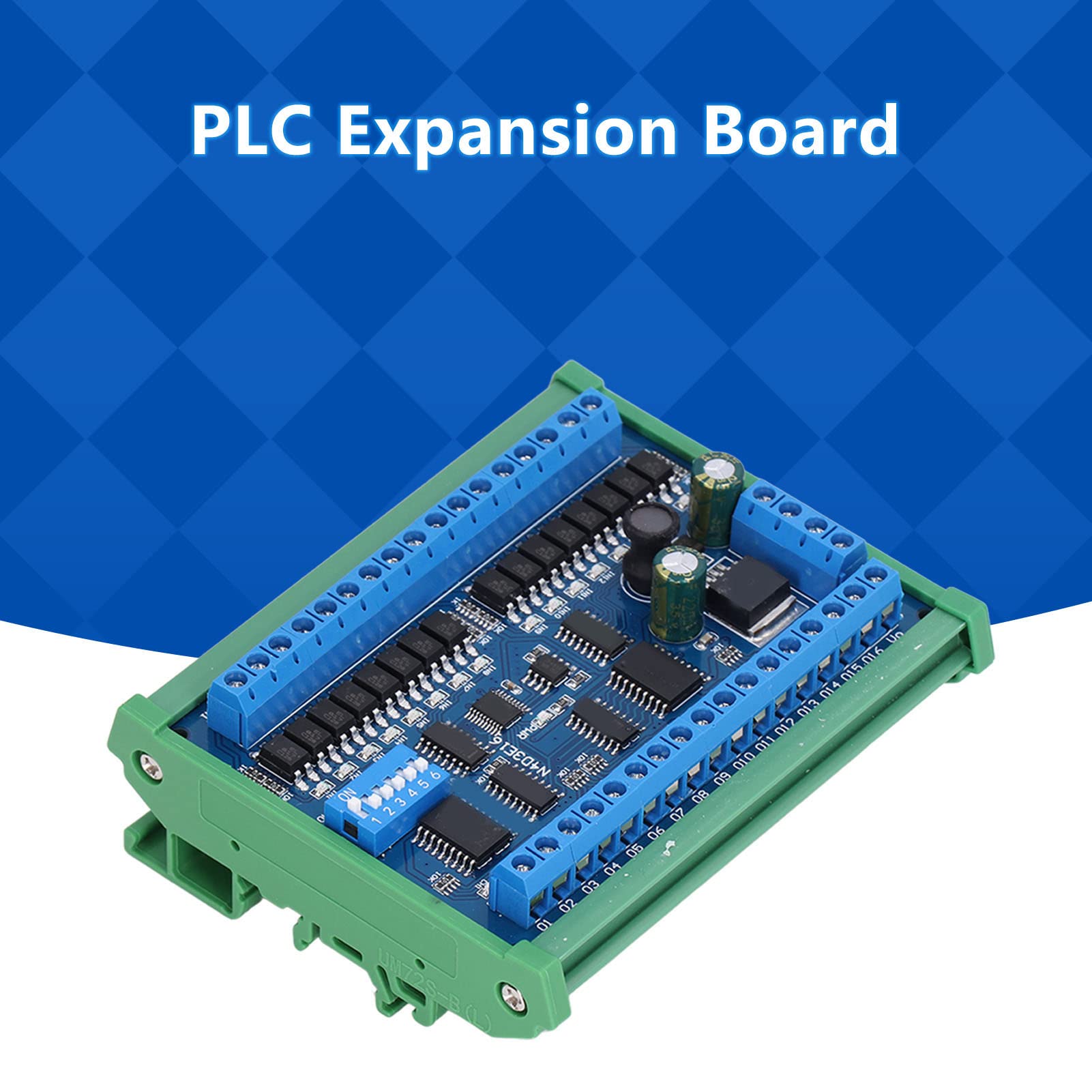

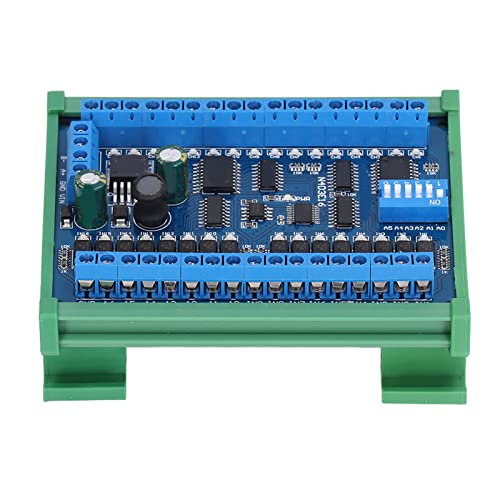

ItemName : Respicefinem 16 Input 16 Output Expansion Board RS485 Remote Control Switch PLC IO Module DC 6.5‑30V Easy Control Smart Home Security Surveillance Green (with Casing)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemTypeKeyword : io-modules
Manufacturer : Respicefinem
ModelNumber : Respicefinem10pv9wdkgx-12
PartNumber : Respicefinem10pv9wdkgx-12
ProductDescription : Spec:
Item Type: Expansion Board
Material: PCB
Model: N4D3E16
1. Working Voltage: DC 6.5-30V (7.5V 9V 12V 15V 24V)
2. Working Current: 8-50MA
3. 16 channel isolated input ports (NPN is active at low level)
4. 16 channel Darlington outputs (ULN2803 NPN output)
5. 6 commands of open, close, instantaneous, self locking, interlocking and delay
6. 16 channel input can remotely control the 16 channel output of another board through the RS485 bus (relevant registers need to be set)
7. For RTU instruction, support 03 06 function codes (some registers support 16 function codes)
8. Under the Delay command, the maximum delay is 255 seconds
9. You can press Enter in the serial port super terminal (serial port assistant)
10. Up to 64 devices can be connected in parallel
11. The default baud rate is 9600BPS, and the baud rate can be selected by jumpers: 2400 4800 9600 19200BPS
Maximum Load: The maximum load current of each channel is 300MA
DIN Rail Box Parameters:
Model: UM72
Color: Green
Width: Suitable for PCB board width UM72 (Approx. 72mm / 2.8in)
Insulation Grade: Flame retardant VO grade
Backplane Length: Suitable for approx. 100mm / 3.9in PCB board
Installation Method: DIN35 and C45 rails
Application: PLC IO expansion board, smart home, home automation, security surveillance, identification system, network camera, LED light driver, automatic curtain control

Package List：
1 x Expansion Board

Note：
Please use it within the specified voltage and current range.
