Specification
Brand : Sonew
BulletPoint1 : Monitor the working voltage (true RMS measurement).
BulletPoint2 : The working status of the relay is indicated by the LED indicator, which is simple and convenient.
BulletPoint3 : Compact size, only 18mm width, 35mm rail mounting.
BulletPoint4 : High accuracy, voltage measurement accuracy is ≤ 1%.
BulletPoint5 : The operating mode can be selected via the knob.

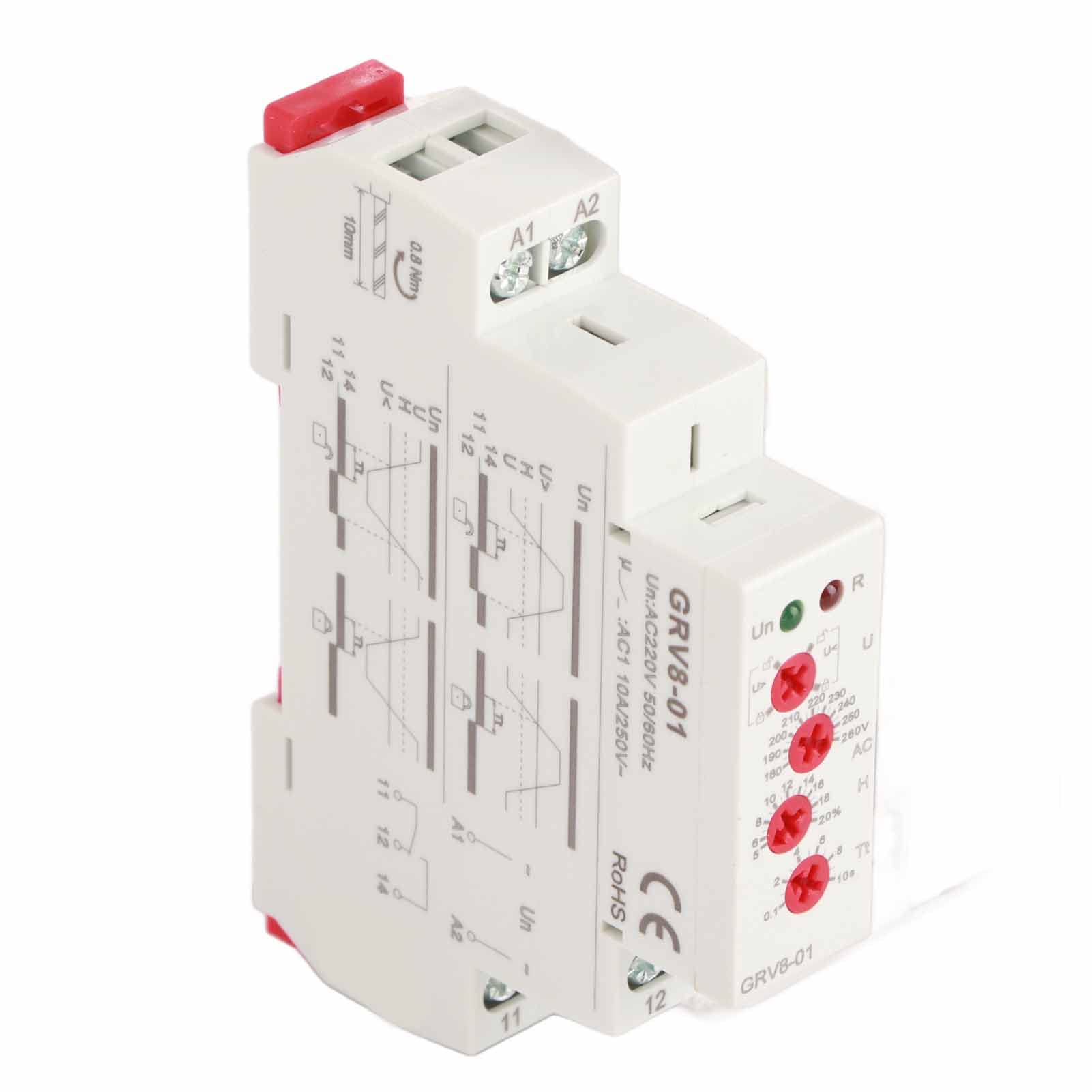

ItemName : Voltage Relay, High Accuracy Voltage Control Relay for Controlling Device (#1)
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : io-modules
Manufacturer : Sonew
ModelName : Sonewvd7q0cx3pg-01
ModelNumber : Sonewvd7q0cx3pg-01
PartNumber : Sonewvd7q0cx3pg-01
ProductDescription : 1. Monitor the working voltage (true RMS measurement).
2. The operating mode can be selected via the knob.
3. High accuracy, voltage measurement accuracy is ≤ 1%.
4. The working status of the relay is indicated by the LED indicator, which is simple and convenient.
5. Compact size, only 18mm width, 35mm rail mounting.

Spec:
Features:
1. Monitor the working voltage (true RMS measurement).
2. The operating mode can be selected via the knob.
3. High accuracy, voltage measurement accuracy is ≤ 1%.
4. The working status of the relay is indicated by the LED indicator, which is simple and convenient.
5. Compact size, only 18mm width, 35mm rail mounting.
6. Apply to over voltage for electrical equipment or compressors, emergency/backup power switching control.
Specification:
FunctionVoltage monitoring
Power terminal (monitoring terminal)A1(+)-(-)
Rated power supply voltage (Optional)#1: AC220V
#2: DC12V
#3: AC/DC24V-48V
#4: AC/DC110V-240V
Rated power frequency45Hz-65Hz
Rated insulation voltage460V
Hysteresis value5%-20%
Power indicatorGreen LED
Output relay indicationRed LED
Action delay time0.1s-10s, 10%
Voltage measurement error≤1%
Power-on delay time0.5s
Knob setting accuracy1%
Reset time1s
Temperature fluctuation error0.05%/°C, at=20°C
Output1 * SPDT
10A/AC1
250VAC / 24VDC
Minimum switching power500mW
Mechanical life1 * 10000000
Electrical life (resistive load)1 * 1000000
Working environment temperature-20°C- +55°C
Storage and transportation ambient temperature-35°C- +75°C
Installation method35mm rail installation
levelIP20
Installation locationAny
Installation altitude≤2000m
Pollution degree2
Wiring ability1 * 2.5mm2 or 2 * 1.5mm2
Dimensions90mm * 18mm * 64mm / 3.5 * 0.7 * 2.5in
ProductSiteLaunchDate : 2024-10-08T12:48:31.341Z
Size : #1
