Specification
Brand : OUKENS
BulletPoint1 : Main Function: The rain and snow sensor is a qualitative measuring device for measuring whether it rains or snows outdoors or in nature. The measurement of rain and snow, the response time is less than or equal to 0.5S.The reception range of the device has been improved, which greatly enhanced the accuracy and stability of data transmission
BulletPoint2 : High Sensitivity: The unique AC measurement technology prevents oxidation reacting of the induction plate and ensures longterm sensitivity. The sensitivity of the sensor is adjustable, making it more flexible to use.Experience the convenience of your personal home weather station

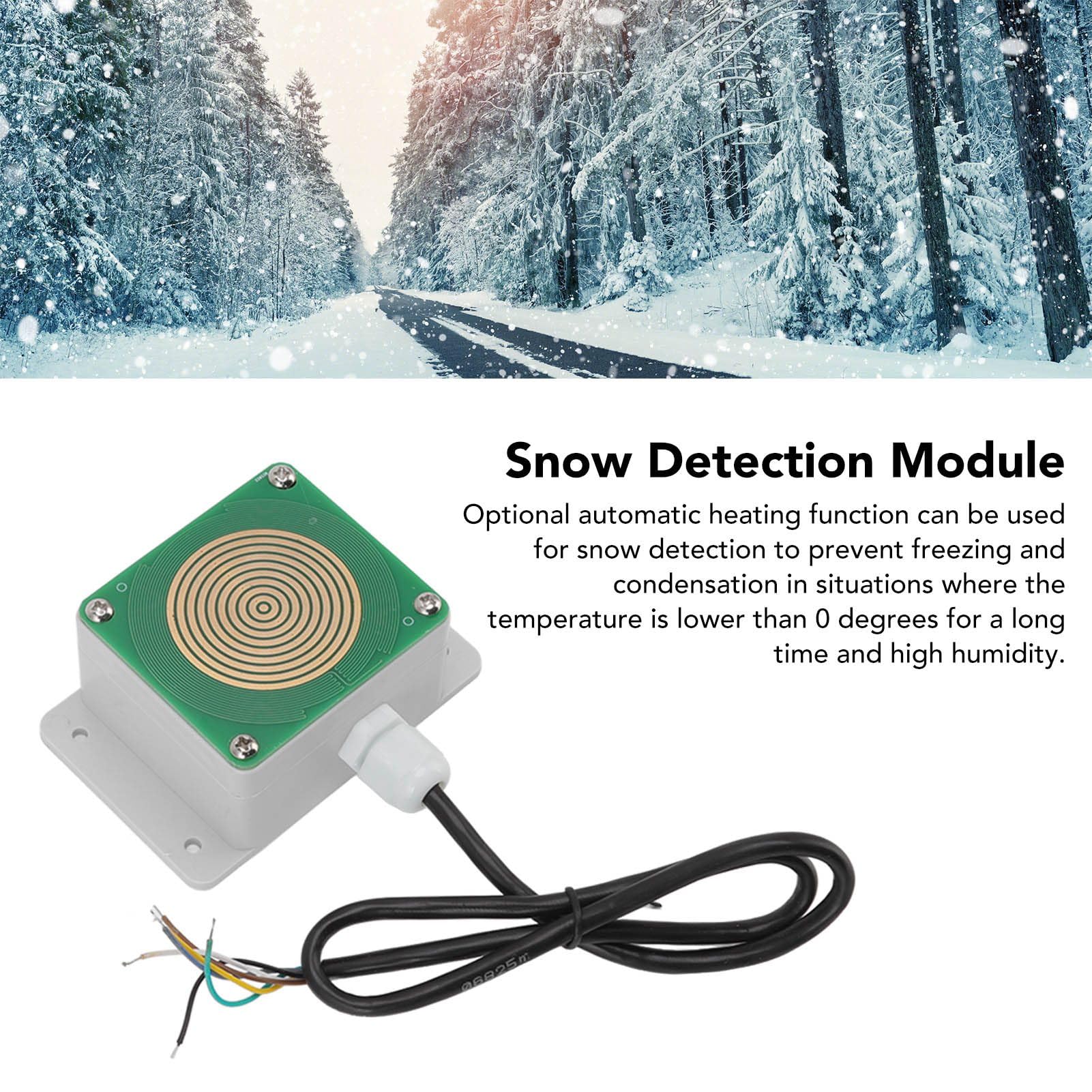

BulletPoint3 : Automatic Heating: Optional automatic heating function can be used for snow detection to prevent freezing and condensation in situations where the temperature is lower than 0 degrees for a long time and high humidity.Assembly is easy, please use the instructions provided
BulletPoint4 : Protection Function: IP68 protection grade design, can work outdoors for a long time. Alarm and reset delay can be set to avoid frequent on site alarms. It is safe and reliable, beautiful in appearance and easy to install.Product Type: 485 mode, automatic heating
BulletPoint5 : Strict Temperature Control: The temperature during heating is strictly controlled within 40 ℃ (default) to prevent over oxidation caused by dry burning and prolong the service life.The rain and snow sensor is lightweight, weighing approximately 153 grams/5.40 ounces, with dimensions of 89x64x38mm/3.50x2.52x1.50in, making it easy to carry and store
Color : Black
CompatibleDevices : Widely compatible
CompatiblePhoneModels : Phone
ConnectivityTechnology : Powerline
ConnectorType : Plug
ExteriorFinish : Stainless Steel
ExternallyAssignedProductIdentifier : 4993373174682
ExternallyAssignedProductIdentifier1 : 746178858547
ExternallyAssignedProductIdentifier2 : 0746178858547
FinishType : Finish
IncludedComponents : inc
InputVoltage : 110 volts_of_alternating_current
ItemDisplayWeight : 4 pounds
ItemName : Rain and Snow Sensor Module, Plastic Snow Raindrops Detection Sensor, AC Measurement Technology 485 Mode Automatic Heating 10‑30V,Outdoor Sensor
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 2 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : automatic-lawn-irrigation-controllers
Manufacturer : OUKENS
Material : Plastic
Material1 : Metal
Material2 : Plastic
ModelNumber : SLKFL2934290SLKF2511
MountingType : Wall Mount
NumberOfItems : 1
NumberOfPorts : 2
OutputVoltage : 110 volts
PartNumber : OUKENSq5v40i6u1x
PowerSourceType : PowerSource
ProductDescription : Specification:

Item Type: Rain and Snow Sensor
Material: Plastic
Weight: Approx. 153g/5.40oz
Size: 89x64x38mm/3.50x2.52x1.50in
Power Supply: 10-30V DC
Normal Working Power：0.4W
Storage Environment：-40℃-80℃
Output Signal: 485
Parameter Configuration: Software setting
Default Address: 01
Support Function Code: 03, 06
Maximum Heating Temperature: 40℃
Output Relay With Load Capacity: 250VAC 1A, 30VDC 1A
Product Model: RS YUX N01 H
Product Type: 485 mode, automatic heating
Wire Sequence: VCC(brown) GND(black) A(yellow) B(blue)
Ambient Temperature For Heating Start: <15°C (default)
Maximum Heating Temperature: 40℃(default)
Working Power When Heating：2.4W
Application: It can be widely used in the qualitative measurement of the presence or absence of rain and snow in the environment, greenhouses, breeding, buildings, buildings, etc.
Wiring Instructions: Voltage power input can be 10~30V. When wiring the 485 signal line, pay attention to the two lines A B not to be reversed, and the addresses of multiple devices on the bus must not conflict.
Power: Positive power supply (10-30V DC) (brown), Power negative (black)
Output:485 A(yellow), 485 B(blue)

Using RTU communication protocol, the format is as follows:
Initial structure ≥ 4 bytes of time
Address code = 1 byte
Function code = 1 byte
Data area = N bytes
Error check = 16-bit CRC code
Time to end structure ≥ 4 bytes

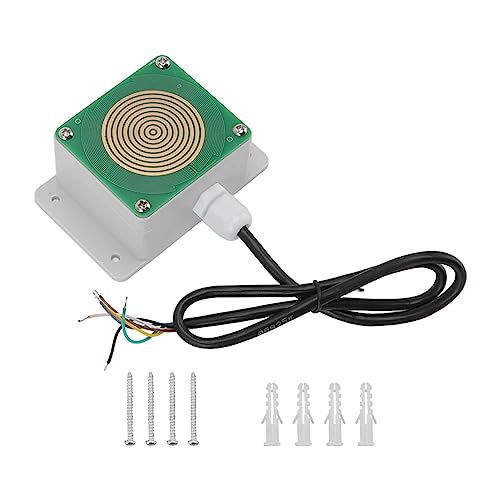

Package List:
4 x Expansion Plug
4 x Self Tapping Screw
1 x Sensor
1 x Instruction


ProductSiteLaunchDate : 2023-09-08T08:18:15.322Z
Size : 4 Zone
SpecificationMet : ASSE 1013, NSF/ANSI 372
SpecificationMet1 : CE
SpecificationMet2 : FCC
Style : Rotary
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 46171600
ValveType : globe
WarrantyDescription : 3 years
Wattage : 120 watts
