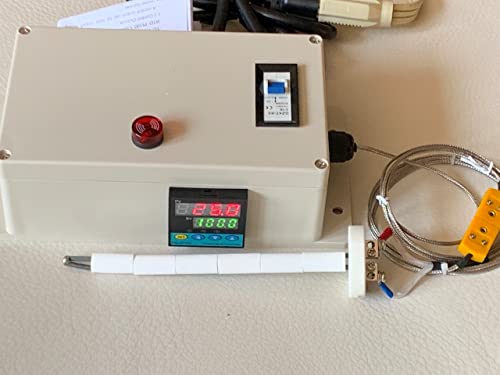

Plug & Play PID Temperature Controller Box Kiln Probe Pottery Glass Annealing 120V/20Amp

Customer rating 4.3 stars

Imported from USA | Ships in 10 working days

5% additional discount on UPI | Cash On Delivery available

1

₹85610 -34% ₹56500/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart.
EMI and GST Invoice available.

Product Information


Specification
Brand : Thermomart
BulletPoint1 : Its heavy-duty kiln thermocouple can measure very high temperatures up to 1300C (equal to 2372 °F ). · Equipped with male and female connectors, so you can easily change your thermocouple. · To operate, you only need to plug the heater into the socket wire of the controller at the back, drop the sensor into the Kiln, turn on the power of the controller, and adjust it to your requirements.
BulletPoint2 : Plug and Play PID one set point Temperature controller box with 20 Amp Maximum current. Equipped with a circuit breaker switch 120V/20 Amp (instead of short life fuse). High Measuring accuracy, ±0.2% or ±1 unit of the full input range. Celsius or Fahrenheit display is selected at the user’s discretion. Calibration function for sensor temperature correction
BulletPoint3 : This plug-and-play temperature controller with Ceramic thermocouple has a wide range of applications in controlling the temperature of Kilns, Ovens, Furnaces & …. (for loading current up to 20Amp) . This is an inexpensive and heavy duty plug and play controller box. Please consider that if you need to change your sensor to specific one, I can change it for you too. It is One set point temperature controller and if you need ramp and soak please see my other products.
BulletPoint4 : Equipped with buzzer and flasher alarm for passing high and low temperature or thermocouple failure. Temperature control range -50 to 1300 °C (-58 to 2372 °F)
BulletPoint5 : Made in USA
Color : black
Coverage : 2 square_feet
ExternallyAssignedProductIdentifier : 7431100475413
ExternallyAssignedProductIdentifier1 : 0769675372750
ExternallyAssignedProductIdentifier2 : 769675372750
ExternallyAssignedProductIdentifier3 : 00039672288973
FinishType : Textured
FormFactor : Rectangle (4" X 2")
IncludedComponents : ABS box+ temperature controller+ssr+heatsink+connector
IsExpirationDatedProduct : 1
ItemName : Plug & Play PID Temperature Controller Box Kiln Probe Pottery Glass Annealing 120V/20Amp
ItemPackageDimensions_Height : 30.3 centimeters
ItemPackageDimensions_Length : 8.6 centimeters
ItemPackageDimensions_Width : 20.7 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangular
ItemTypeKeyword : kilns
Manufacturer : Thermomart
Material : SMD
ModelNumber : CKP-DTX-P&P20
NumberOfBoxes : 1
NumberOfItems : 1
OperatingTemperature : 1300 degrees_celsius
PackageLevel : unit
PaperSize : 3" x 3"
PartNumber : DTH101-PP
Pattern : Floral
ProductDescription : Specifications: Input voltage 90 to 260 VAC - 50 /60 Hz; No transformer or adapter is required. Output voltage Same as the input. with one set point temperature controller Maximum Current 20A Controller Mode 1) :P, PID,PI, PD, ON/OFF(P=0) 2) Auto setting control Output switching device Solid State Relay (40A - 24/240V AC) with zero voltage crossing switching. Sensor Type Type K 6pc Ceramic Kiln Thermocouple Temperature control range -50 to 1300 °C (-58 to 2372 °F) Thermocouple Thread material Cr-Ni, Si-Ni Thermocouple Thread dimensions 3.2mm (diameter ɸ) x 190 mm (long) / (0.13" x 7.5") Sensor cable length 3.3 ft (1m) Ceramic tube shape 6 x (1-inch Pcs, two-hole insulator) Ceramic Tube diameter Oval shape: L=12.3 mm & W=10mm (L~ 0.5” & W~ 0.4”) Ceramic tube length ~150 mm (~ 6.0 inch) Box material & Dimension ABS 200x120x75mm ( 7 3/4 x 4 3/4 x 3" ) Temperature resolution Dual 4-digit LED display, 0.1 for K type and 0.001 for analog input Temperature display unit Fahrenheit (°F) Celsius (°C) Temperature accuracy Measurement: ±0.2%FS Control Accuracy:+/- 1 Celsius Input K (-200~+1300ºC). But the controller can connect to following input too, S (-50~+1600ºC), Wu3-Re25 (0~2000ºC ), R (-50~+1700ºC), T (0~400ºC), E (0~900ºC), J (0~800ºC), B (200~1800ºC), Pt100 (-200~800.0ºC) or (-200~+600ºC), mV, mA, VDC (-1999~+9999)
ProductSiteLaunchDate : 2016-04-26T07:00:00.000Z
RecommendedUsesForProduct : fireplace, wood stove baffle, pellet stove, kilns, chimney, furnace, boiler, pizza ovens, forge, and more
SafetyDataSheetUrl : http://www.dick-blick.com/msds/DBH_SDS_329661004.pdf
Size : 6"X7 5/8"
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : People
UnitCount : 4
UnspscCode : 26000000
Voltage : 120 volts
WaterResistanceLevel : not_water_resistant
