Specification
Brand : Arkidyn Plus
BulletPoint1 : 【Dual Monitor KVM Switch HDMI & DisplayPort for 2 Computers】This 2 IN 2 OUT KVM switch dual monitor KVM switch allows you to control 2 computers or laptops with one set of wired or wireless keyboard, mouse, and 2 extended or mirrored monitors at the same time. Note: This dual monitor KVM support HDMI & DisplayPort dual-screen display (It requires every computer support 2 screen or above display functions and must support extended display).
BulletPoint2 : 【EDID Emulators】 HDMI dual monitor KVM switch is ideal for configurations with multiple displays that don’t share the same native resolution or aspect ratio. With two computers using two monitors, everything is where you left it on your screen when you switch to another machine and come back. Without EDID, your windows may move around when switching. No longer have to sit and wait for the windows to adjust.
BulletPoint3 : 【Ultra HD 4K@60Hz KVM Switch Dual Monitor】Confirms to HDMI 2.0 & DP 1.2 protocol, supports a maximum resolution of 3840x2160@60Hz and is compatible downwards. The dual monitor requires HDMI & DisplayPort connections from each computer to the KVM switch. When both the display and the signal source support 4K@60Hz, the device can provide a 4K experience. Automatically adapt to EDID, which can adapt to a variety of complex application environments.
BulletPoint4 : 【With 3 USB 2.0 Ports, Audio and Microphone Output】The dual monitor switch plug and play with no driver needed, with extra 3x USB 2.0 ports for sharing USB printers, scanners and jump drives, wireless and gaming keyboard mouse. The upgraded design hides the messy cables at the back, leaving a USB 2.0 port on the front for inserting a USB flash drive. Unique design makes the desktop tidy, Say goodbye to cluttered cables. Also supports separate audio and microphone output.
BulletPoint5 : 【Convenient Switching Modes and Wide Compatibility】 1. Toggle selection on the front panel; 2. Wired remote switch. Compatible with a variety of computer systems, such as Windows, Linux, Mac, Unix, Ubuntu, Raspberry, and most other major OS; You will get 1* HDMI DP Dual Monitor KVM Switch, 2* USB A-B PC connection cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. ♥Note: HDMI and DP Cables are not included. We provide 12 months warranty and lifetime technical support.
BulletPoint6 : 【Package List】1*Dual Monitor USB3.0 KVM Switch+2*USB3.0 Cables(1.5m/4.9ft)+1*Wired remote controller(1.52m/5ft)+1*User manual.
BulletPoint7 : Note 1: When connecting two monitors, both HDMI and DP inputs need to be connected to the ports of the independent graphics card so that both monitors can work. If one of the monitors does not work, you can consider replacing the HDMI cable or DP cable to solve the problem.
BulletPoint8 : Note 2: If the input or output requires signal conversion, for example, USB C to DP or HDMI, DP to HDMI, etc., you need to use a suitable adapter, otherwise it will cause compatibility and cause the monitor to not work. If you are not sure which adapter to use, you can contact us and we will recommend a suitable adapter for you.
CircuitType : 2-way
Color : Black
CompatibleDevices : Laptop, Personal Computer, Monitor, AV Receiver, KVM Switch, Extender
ConnectivityProtocol : Hdmi
ConnectorType : Hdmi, Displayport
ControllerType : Push Button, Wired Remote
ControlMethod : touch
CurrentRating : 0.01 amps
CustomerPackageType : Standard Packaging
DataTransferRate : 5 gigabits_per_second
ExternallyAssignedProductIdentifier1 : 785034669651
ExternallyAssignedProductIdentifier2 : 0785034669651
ExternallyAssignedProductIdentifier3 : 04002888423403
ExternallyAssignedProductIdentifier4 : 0745883552740
ExternallyAssignedProductIdentifier5 : 0745883554690
ExternallyAssignedProductIdentifier6 : 0635145509455
HardwareInterface : usb
Hazmat1 : LITHIUM METAL BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : DE_SmallLithiumMetalBatteryInEquipment
Hazmat11 : EG_SmallLithiumMetalBatteryInEquipment
Hazmat12 : ES_SmallLithiumMetalBatteryInEquipment
Hazmat13 : FR_SmallLithiumMetalBatteryInEquipment
Hazmat14 : GB_SmallLithiumMetalBatteryInEquipment
Hazmat15 : IN_SmallLithiumMetalBatteryInEquipment
Hazmat16 : IT_SmallLithiumMetalBatteryInEquipment
Hazmat17 : JP_SmallLithiumMetalBatteryInEquipment
Hazmat18 : MX_SmallLithiumMetalBatteryInEquipment
Hazmat19 : NL_SmallLithiumMetalBatteryInEquipment
Hazmat2 : UN3091
Hazmat20 : PL_SmallLithiumMetalBatteryInEquipment
Hazmat21 : SA_SmallLithiumMetalBatteryInEquipment
Hazmat22 : SE_SmallLithiumMetalBatteryInEquipment
Hazmat23 : SG_SmallLithiumMetalBatteryInEquipment
Hazmat24 : TR_SmallLithiumMetalBatteryInEquipment
Hazmat25 : US_SmallLithiumMetalBatteryInEquipment
Hazmat26 : ZA_SmallLithiumMetalBatteryInEquipment
Hazmat27 : 9
Hazmat3 : II
Hazmat4 : AE_SmallLithiumMetalBatteryInEquipment
Hazmat5 : AU_SmallLithiumMetalBatteryInEquipment
Hazmat6 : BE_SmallLithiumMetalBatteryInEquipment
Hazmat7 : BR_SmallLithiumMetalBatteryInEquipment
Hazmat8 : CA_SmallLithiumMetalBatteryInEquipment
Hazmat9 : CN_SmallLithiumMetalBatteryInEquipment
IncludedComponents : 1 Switch
InternationalProtectionRating : IP54
ItemDisplayWeight : 0.34 kilograms
ItemName : Dual Monitor KVM Switch HDMI + DisplayPort 2 Port, Supports EDID, 4K@60Hz Extended Display KVM Switch 2 Monitors 2 Computers with Audio Microphone Output and 3 USB Ports, PC Monitor KVM Switcher
ItemPackageDimensions_Height : 23.1 centimeters
ItemPackageDimensions_Length : 5.7 centimeters
ItemPackageDimensions_Width : 17.3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-data-switches
LightType : LED
LowerTemperatureRating : -5 degrees_celsius
Manufacturer : Arkidyn Plus
Material : Polycarbonate
Material1 : Metal
Material2 : Plastic
ModelName : 42340
ModelNumber : DP402A-B-H
MountingType : Plug In Mount
NumberOfItems : 1
NumberOfPorts : 2
NumberOfPositions : 2
OperatingSystem1 : Windows 8.1
OperatingSystem2 : Windows Vista
OperatingSystem3 : Linux
OperatingSystem4 : Chrome OS
OperatingVoltage : 5 volts
OperationMode : Automatically
PackageLevel : unit
PartNumber : DKM202C-UK-H
PowerPlugType : no_plug
ProductDescription :

Dual Monitor HDMI & DisplayPort KVM Switch for 2 Computers



* With this HDMI & DisplayPort 2 port dual monitor KVM switch, you can easily control 2 signal sources at the same time, share the same keyboard and mouse, and share 2 monitors.



Product Features:



1. 2 computers/laptops share one set of keyboard, mouse, dual monitors, and 3 USB 2.0 peripherals.

2. With EDID emulators in the extended display mode, keep PCs always have the correct information, prevent display setting change while switching inputs;

3. Dual monitors output support up to 4K@60Hz; for extended or mirrored display;

4. With extra 3 USB 2.0 Ports and Audio Microphone output.

5. Compatibility with all computers and other devices with HDMI & DisplayPort ports.

6. The ports that need to plug in HDMI/DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

7. Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems.

8. Switching modes: Buttons on the front panel and wired remote;

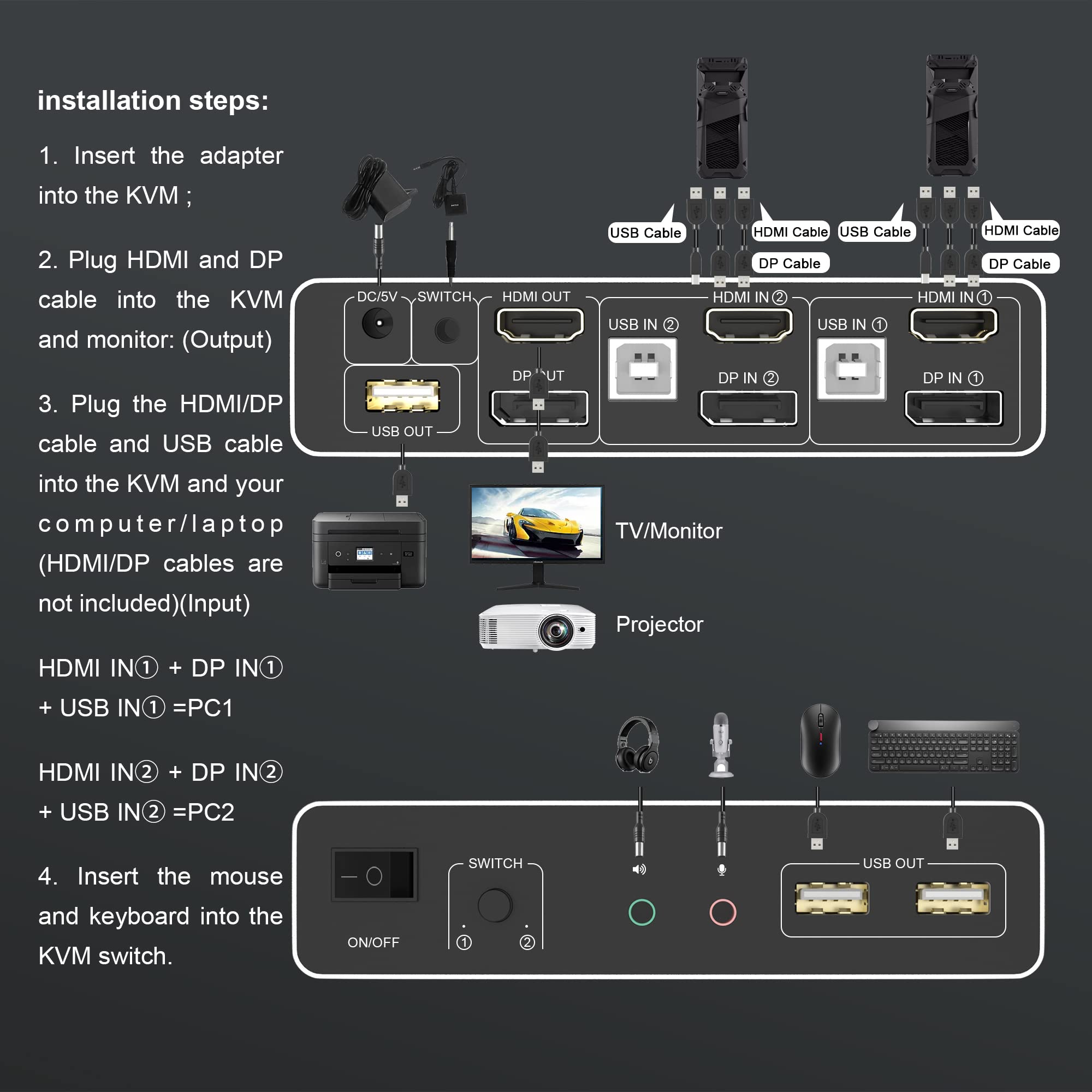

Installation steps:



1. Insert the adapter into the KVM ;



2. Plug the DP cable and HDMI cable into the KVM switch and monitor;(Output)



3. Plug the DP cable, HDMI cable, and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input)



Please check whether HDMI IN1, DP IN1, and USB IN1 are corresponding and whether HDMI IN2, DP IN2, and USB IN2 are corresponding. Mixed insertion is not supported.



HDMI IN1 + DP IN1 + USB IN1=PC1



HDMI IN2 + DP IN2 + USB IN2=PC2



4. Insert the mouse and keyboard into the KVM switch;



5. If necessary, plug the headset or microphone into the KVM switch;

&
ProductSiteLaunchDate : 2023-03-07T08:00:00.000Z
Size : HDMI KVM Switch Compact USB 2.0 Audio 2 Port
SpecificationMet : No
SpecificUsesForProduct : PC, Gaming
StreetDate : 2012-09-17T00:00:01Z
Style : USB 2.0 2 PC share 2 monitors（HDMI+DP)
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Toggle
TerminalType : Through Hole
TotalUsbPorts : 4
UnitCount : 1
UnspscCode : 43211600
UpperTemperatureRating : 45 degrees_celsius
WarrantyDescription : Manufacturer warranty for 18 month from date of purchase
Wattage : 30 watts
