Specification
Brand : GOWENIC

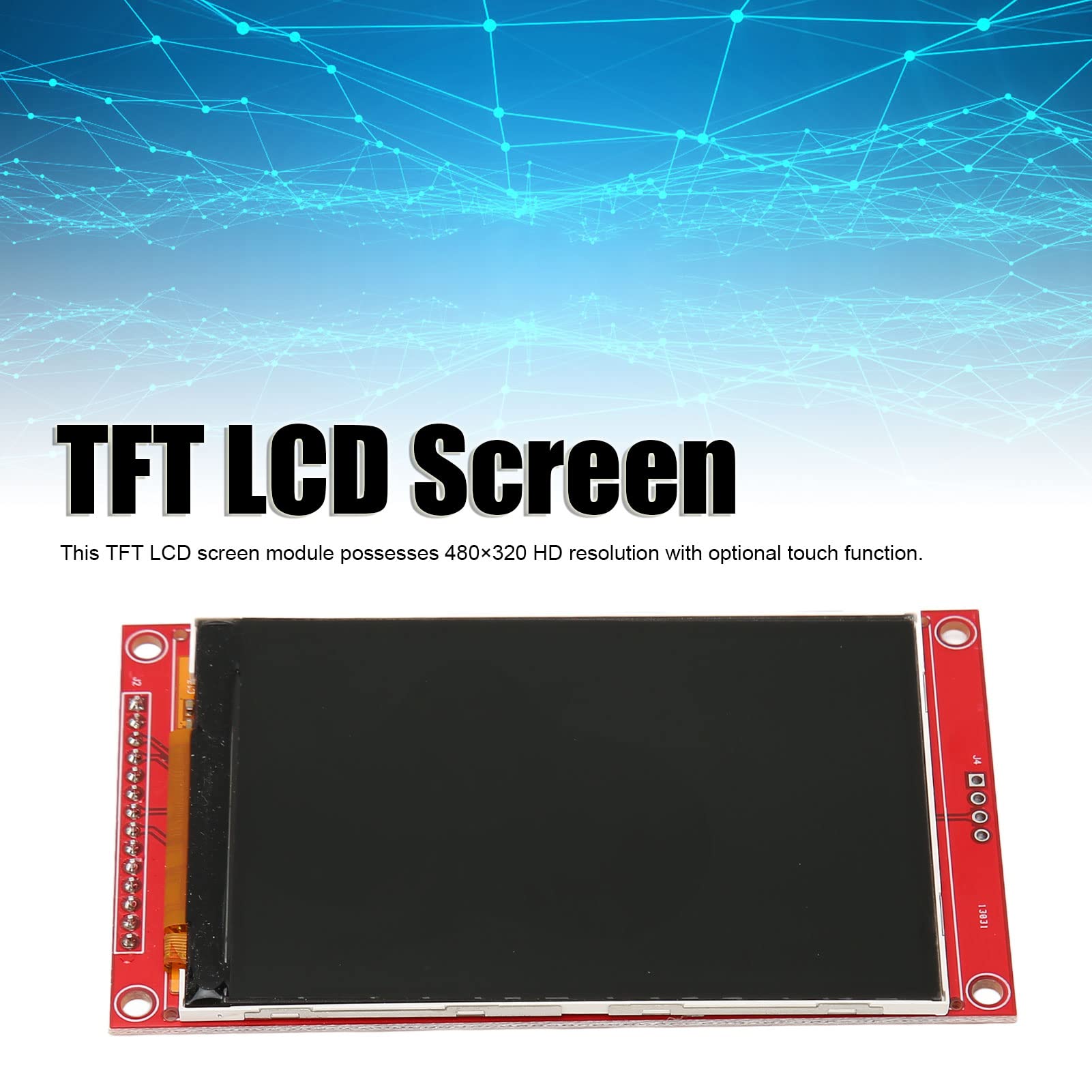

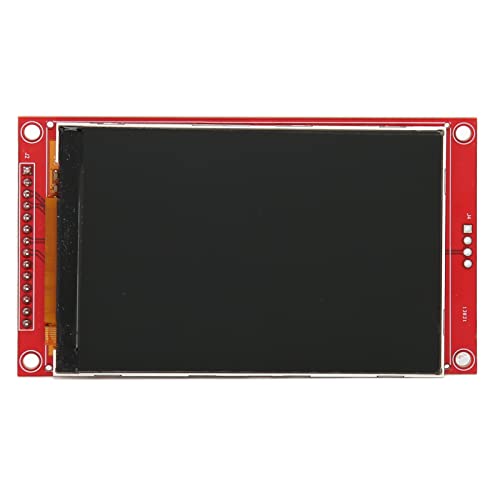

BulletPoint1 : 3.5inch LCD Module: This TFT LCD screen module possesses 480×320 HD resolution.
BulletPoint2 : Serial Peripheral Interface: This TFT LCD display uses serial peripheral interface bus, only need a few IO to light up the screen display.
BulletPoint3 : Memory Card Slot: This 3.5in TFT LCD screen module is equipped with for memory card slot for easy expansion of experiments.
BulletPoint4 : High Practicality: This TFT LCD screen with multifunction can be used for other display functions through the signal line.
BulletPoint5 : Power Saving: This TFT screen display is compatible with 3.3V to 5V working voltage, low energy consumption and power saving.
ConnectorType : Pin
ExternallyAssignedProductIdentifier : 7842514134085
IncludedComponents : No
ItemName : GOWENIC 3.5 inch TFT LCD Display, 480x320 Screen Module, SPI Serial Port Memory Slot Electronic Screen Compatible with 3.3V to 5V for Control Replacement
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : lcd-character-modules
Manufacturer : GOWENIC
Material : copper
MaximumVoltage : 3.3 volts
ModelNumber : PenRuxcb4edqwvyi-12
NumberOfItems : 1
PartNumber : PenRuxcb4edqwvyi-12
ProductDescription : Specification:
Item Type: LCD Screen Module
Material:
Driver Chip: ILI9488
Resolution: 480x320 (PX)
VCC: Power Input (3.3V to 5V)
GND: Power Source
CS: LCD Chip Selection
RESET: The LCD Reset
D/C: LCD Bus /Data Selection
SDI(MOSI) : LCD SPI Display Bus Data Input
SCK: LCD SPI Display Bus Clock
LED: LCD Backlit Control (High On)
SDO(MISO): LCD SPI Display Bus Data Input And Output
T CLK: Touch Panel SPI Bus Clock
T CS: Touch Panel SPI Bus Chip Selection
T DIN: Touch Panel SPI Bus Data Input
T OUT: Touch Panel SPI Bus Data Output
T IRQ: The Touch Panel Interrupts IRQ

How to Use:
Install and use

Package List:
1 x

LCD Screen Module

ProductSiteLaunchDate : 2023-12-26T15:17:57.234Z
Size : 1.54inch OLED Module (B)
TerminalType : Pin Terminal
UnspscCode : 43200000
