Specification
AspectRatio : 16:9
Brand : Yunseity
BulletPoint1 : 3.2 inch color screen, support 65K color display, and the display is colorful
BulletPoint2 : 320X240 HD resolution, with touch function(optional)
BulletPoint3 : Using Serial Peripheral Interface serial bus, it only needs a few IO to lighten the display
BulletPoint4 : Memory card card cage for easy expansion of experiments
BulletPoint5 : Provides a rich sample program
Color : default
CompatibleDevices : 个人电脑
ConnectivityTechnology : HDMI
ConnectorType : Pin
ExternallyAssignedProductIdentifier1 : 887276346885
ExternallyAssignedProductIdentifier2 : 0887276346885
FinishType : Finish
HasColorScreen : 1
ImageAspectRatio : 16:9
ImageBrightness : 350 cd/m²
ImageContrastRatio : 1000:1
IncludedComponents : No
InputVoltage : 3.3 volts

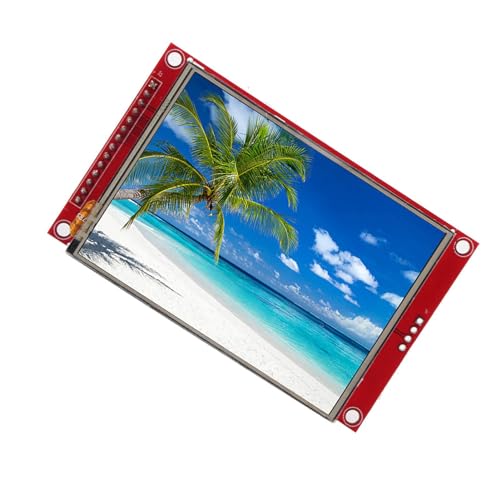

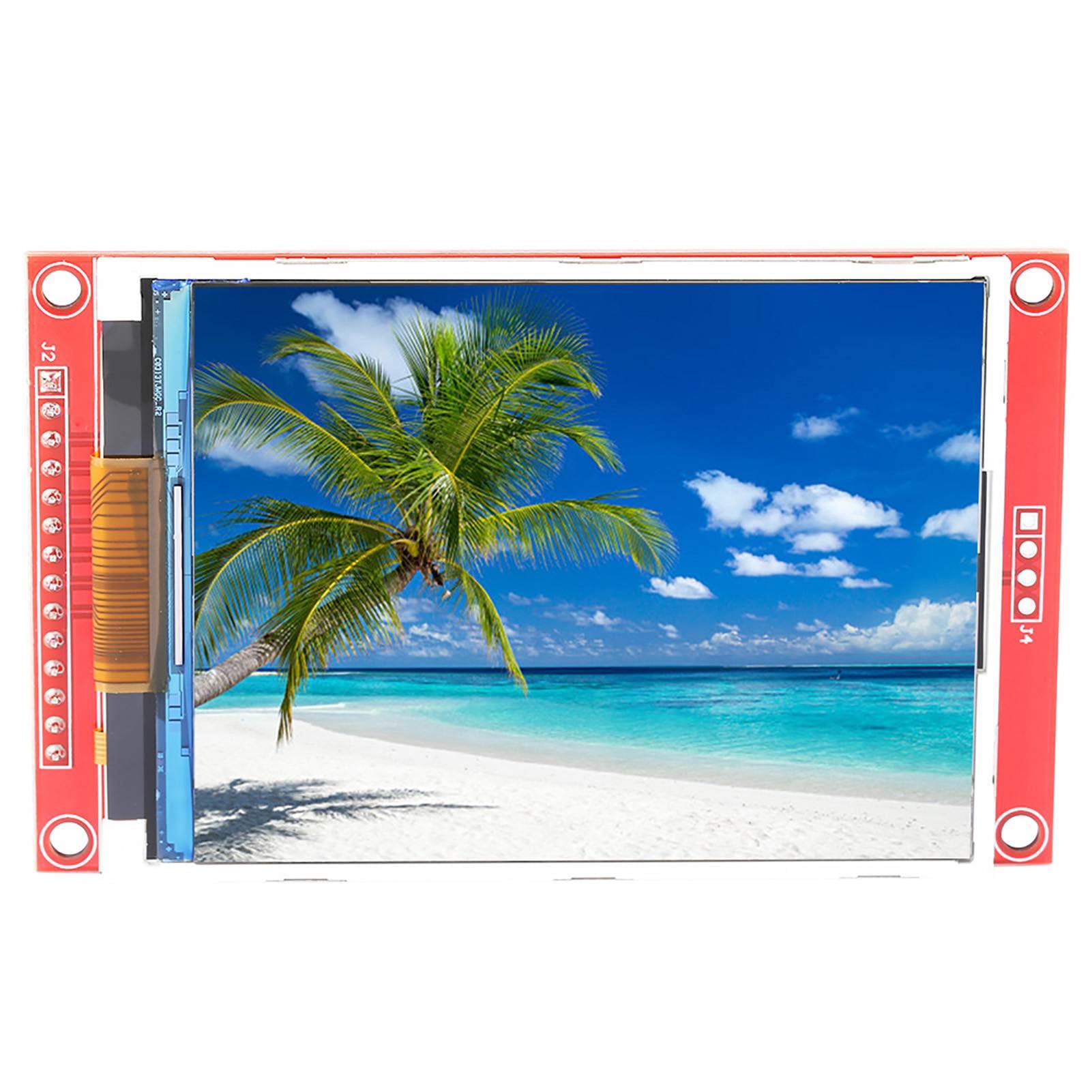

ItemName : LCD Controller Board Kit, Stable LCD Display Module, 3.2Inch 3.3V for 4-Wire SPI Interface 3.3V ~5V (with Touch)
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : lcd-character-modules
Manufacturer : Yunseity
Material : copper
MaxHorizontalResolution : 3840 megapixels
MaximumVoltage : 5 volts
MaxVerticalResolution : 2160 megapixels
ModelName : QB55R-N
ModelNumber : Yunseityb2da3tfxsi-01
MountingType : Wall Mount
NativeResolution : 3840x2160
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Yunseityb2da3tfxsi-01
Platform : linux
ProductDescription : 1. 3.2 inch color screen, support 65K color display, and the display is colorful
2. 320X240 HD resolution, with touch function(optional)
3. Using Serial Peripheral Interface serial bus, it only needs a few IO to lighten the display
4. Memory card card cage for easy expansion of experiments
5. Provides a rich sample program

Spec:
Features:
3.2 inch color screen, support 65K color display, and the display is colorful
320X240 HD resolution, with touch function(optional)
Using Serial Peripheral Interface serial bus, it only needs a few IO to lighten the display
Memory card cage for easy expansion of experiments
Provides a rich sample program
Military technology standard, long - term stable work
Provide underlying driver technical support
Specification:
Size: 3.2 inch
Type: with touch function, no touch function (optional)
Driver chip: ILI9341
Resolution: 320*240 ()
Module interface: 4-wire SPI interface
Effective display area: 48.6x64.8(mm)
Module PCB plate size: 55.04x89.3(mm)
VCC power supply voltage: 3.3v ~5V
Logical IO port voltage: 3.3v (TTL)
The power consumption: Approx. 90mA
Weight: Approx.42g/1.5oz
Interface definition:
serial number label Pin description
1 VCC power input(3.3V~5V)
2GNDPower Ground
3 CS LCD Chip Selection
4 RESET LCD reset
5 DC LCD Bus command/data selection
6 (MOSI) LCD SPI Displays bus data input
7 SCK LCD SPI Displays bus clock
8 LED LCD Backlight control (high level lighting)
9 SDO(MISO) LCD SPI Displays bus data output
10 T_CLK Touch panel SPI bus clock
11 T_CS Touch panel SPI busChip Selection
12 T_DIN Touch panel SPI bus data input
13 T_DO Touch panel SPI bus data output
14 T_IRQ Touch panel interrupts IRQ
Package list:
1 x LCD Display Module
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind
ProductSiteLaunchDate : 2024-03-20T18:27:45.260Z
RefreshRate : 60 hertz
Resolution : 4K UHD 2160p
ResponseTime : 2 milliseconds
ScreenSurfaceDescription : Glossy
Size : With Touch
StreetDate : 2020-03-31T00:00:01Z
Style : Classic
SupplierDeclaredDgHzRegulation : not_applicable
SystemBusStandardSupported : SATA 2
TerminalType : Pin Terminal
TotalHdmiPorts : 2
TotalUsb30Ports : 1
TotalVideoOutPorts : 1
UnitCount : 1
UnspscCode : 43211900
ViewingAngle : 178 degrees
WarrantyDescription : Manufacturer warranty for 90 day
