Specification
Brand : tooloflife
BulletPoint : 0.96 Inch SPI OLED Display Module 12864 6pins SPI interface 0.96" Blue LCD Display Module DIY Compatible For Arduino 51 SMT32
BulletPoint1 : LCD screen can display 2-lines x 16-characters.
BulletPoint2 : Wide viewing angle and high contrast.
BulletPoint3 : LCD display module with blue blacklight.
BulletPoint4 : Working voltage: 5V DC; Module dimension: 80mm x 35mm x 9mm.
BulletPoint5 : Commonly used in: Internet of things, DIY project, home animation, smartbuilding.
Color : Blue Screen - White Word
ExternallyAssignedProductIdentifier : 4862440115388
ExternallyAssignedProductIdentifier1 : 0794304728295
ExternallyAssignedProductIdentifier2 : 794304728295
ItemName : LCD Module Display Backlight Interface Adapter Compatible with Arduino(3.3V Blue Screen - White Word)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : lcd-character-modules
Manufacturer : tooloflife
Material : LCD Display Module
PartNumber : HA5339C
ProductDescription : Feature:

- LCD display module with blue blacklight.
- Wide viewing angle and high contrast.
- Built-in industry standard equivalent LCD controller.
- Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.

Specification:

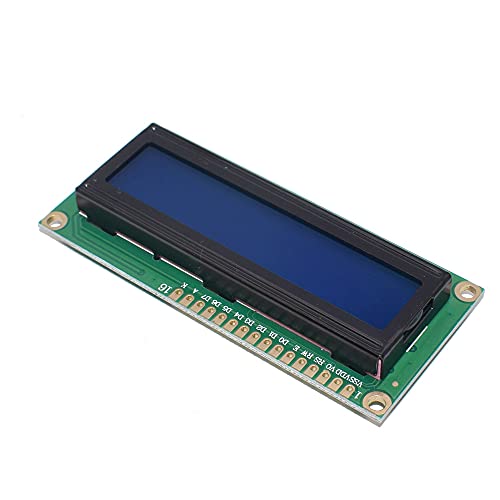

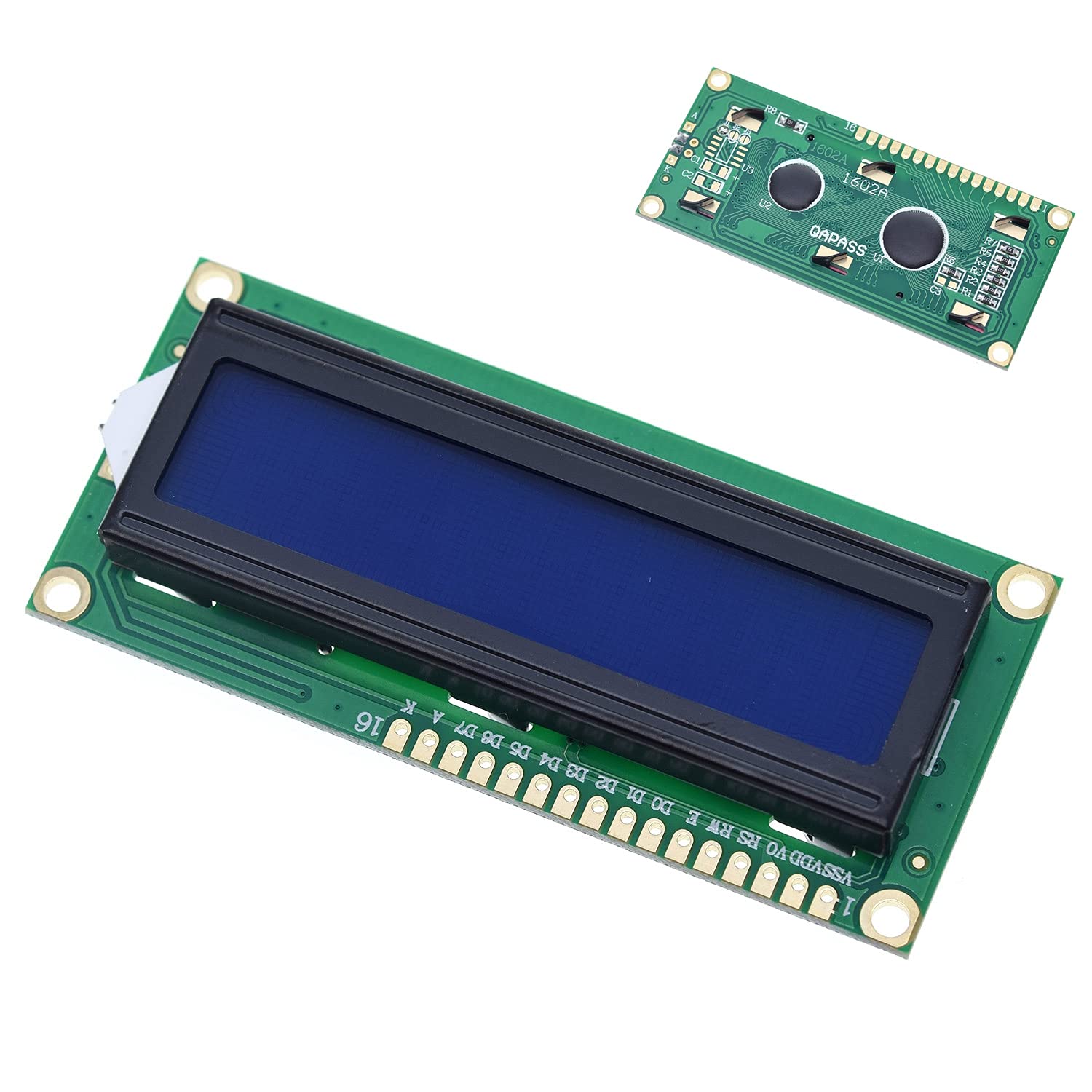

Standard 1602 LCD module
1602 use standard 16 pin ports:
1 pin: VVS is grounding power
2 pin: VDD connect 5V/3V positive-supply
3 pin: V0 is LCD contrast adjustment side,it is the the weakest contrast when connect positive-supply, it is the highest contrast contrast when connect grounding power
4 pin: RS is register choice, high levels choose data register , low levels choose Instruction register
5 pin: R/W is Read/write signal wire, high levels choose reading operation,low levels choose choose writing operation.when RS and RW both are low level you can write Instructions or show address.when RS is low level, RW is high level, you can read signal.On the contrary,you can write data.
6 pin: E side is power side.when E from high level to low level, LCD module execute the command.
7-14 pin: D0-D7 are 8 bit double data wire.
15 pin: backlight positive
16 pin: backlight negative
LCM type: Characters
Can display 2-lines X 16-characters.
- Dicsplay Colour :
Blue Screen - White Word
Yellow Green Screen - Black Word
- Voltage : 5V/3.3V
Module dimension: 80mm x 35mm x 9mm.
Viewing area size: 64.5mm x 16mm.

Package Content:

1 x LCD Display Module

ProductSiteLaunchDate : 2021-07-27T15:36:24.728Z
Size : 3.3V
UnspscCode : 43211900
