Specification
Brand : SASKATE
BulletPoint1 : No need backlight, the display unit can emit light.
BulletPoint2 : High resolution: 128 * 64 (same as the LCD12864, but this product's is more intensive).
BulletPoint3 : Support a large number of control chip: fully compatible for , 51 series, MSP430 series, STM32 /, CSR chip etc.
BulletPoint4 : Ultra low power consumption: the power is 0.08w when full-screen lighting, 0.06w when normal full-screen displays Chinese characters (far lower than TFT, LCD and other technologies).
BulletPoint5 : Wide voltage support: no need to modify, direct support 3V ~ 5V DC. Less occupancy of IO port: need 4 IO port (Max. ) to drive system when using SPI or IIC communication.
Color : as picture show
ExternallyAssignedProductIdentifier : 7671800318348
GpsrSafetyAttestation : 1
IncludedComponents : No

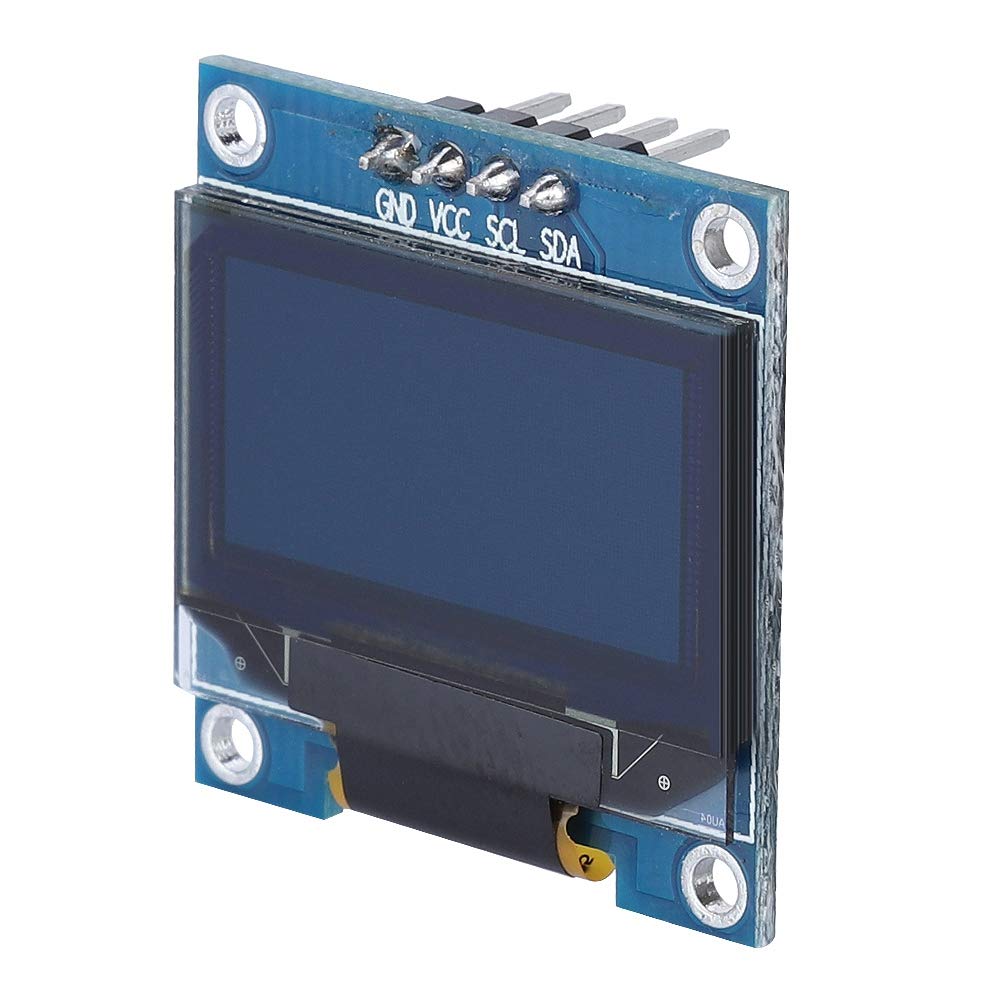

ItemName : OLED Display Module, 128 * 64, Fully Compatible for, No Need Backlight, Ultra Low Power Consumption, Wide Voltage Support, 4 IO Ports, High Resolution
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : lcd-character-modules
Manufacturer : SASKATE
Material : ABS
ModelName : Saskateytpguvak7d
ModelNumber : SASKATEytpguvak7d
NumberOfItems : 1
PartNumber : SASKATEytpguvak7d
ProductDescription : Specification:
Features:
No need backlight, the display unit can emit light.
High resolution: 128 * 64 (same as the LCD12864, but this product's is more intensive).
Support a large number of control chip: fully compatible for , 51 series, MSP430 series, STM32 / CSR chip etc.
Ultra low power consumption: the power is 0.08w when full-screen lighting, 0.06w when normal full-screen displays Chinese characters (far lower than TFT, LCD and other technologies).
Wide voltage support: no need to modify, direct support 3V ~ 5V DC.
Less occupancy of IO port: need 4 IO port (Max. ) to drive system when using SPI or IIC communication.
No character library: take word through model software.
Specifications:
Visual angle: > 160 ° (almost at a plane)
Wide voltage support: 3V ~ 5V DC
Operating temperature: -40 ℃ ~ 70 ℃
Module volume (length and width): 27.3MM * 27.8MM * 3.7MM (slightly larger than a )
Package Weight: 4g
Package List:
1 x LCD Module
ProductSiteLaunchDate : 2024-12-11T02:09:49.245Z
Size : MRC129B Yellow
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 43211900
