Specification
AspectRatio : unknown_aspect_ratio
Brand : Deeoee
BulletPoint : Yellow 2.42" 2.42 inch LCD Screen 128x64 OLED Display Module IIC I2C SPI Serial 12864 OLED Display for C51 STM32 SPD0301
BulletPoint1 : PART NO: LQ038Q5DR01
BulletPoint2 : Size: 3.8 inch
BulletPoint3 : Resolution: 320*240
BulletPoint4 : All the goods will be strictly tested before shipment.
BulletPoint5 : Please confirm your model number before purchase. If you are not sure if it is the correct product for your needs, please contact us immediately.
ConnectivityTechnology : flex
ExternallyAssignedProductIdentifier : 4862440109905
ItemName : Yellow 2.42" 2.42 inch LCD Screen 128x64 OLED Display Module IIC I2C SPI Serial 12864 OLED Display for C51 STM32 SPD0301
ItemPackageDimensions_Height : 8 centimeters
ItemPackageDimensions_Length : 24 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : lcd-character-modules
Manufacturer : Deeoee
Material : Copper
ModelName : LQ038Q5DR01
NativeResolution : 320×240
PartNumber : CXXMODULE-11648
ProductDescription :

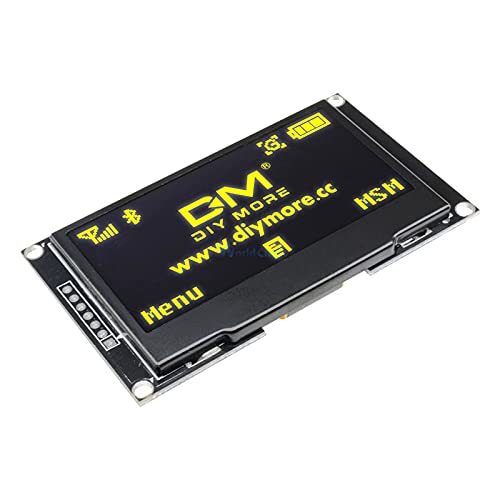

Features:
Diagonal Screen Size: 2.42"
Resolution: 128 * 64
Driver IC: SSD1309
SPI interface definition:
1.GND (power ground)
2.VCC (power supply positive)
3.SCL (clock line)
4.SDA (data line)
5.RES (reset line)
6.DC (data / command)
7.CS (chip select)
Convenience.

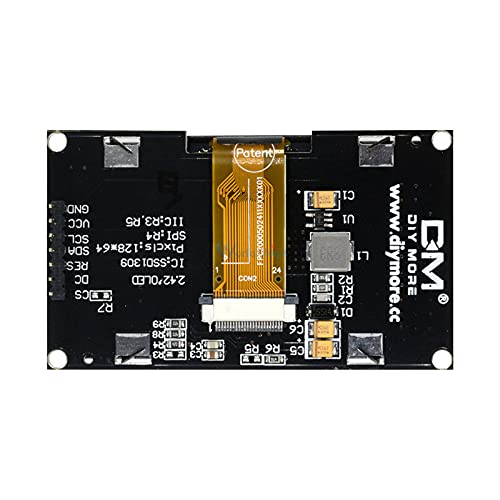

Interface Selection: to choose SPI or IIC interface through R3, R4, R5
For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor.
SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5
Package:
1PCS * 2.42" 12864 OLED Display Module IIC I2C SPI Serial Yellow LCD Screen for C51 STM32 SSD1309

ProductSiteLaunchDate : 2021-06-26T18:41:24.867Z
RefreshRate : 1 hertz
ScreenSurfaceDescription : 霧面
SpecificUsesForProduct : Multimedia
UnspscCode : 43211900
