Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : UNI-T
BulletPoint1 : UT612 LCR Meter with Certifications: CE, UKCA
BulletPoint2 : Key features * Auto power off * Data hold * Relative mode * USB interface
BulletPoint3 : * LCD backlight * Deviation ratio measurement * Comparison function * Calibration funtion
BulletPoint4 : * Output impedance: 120Ω * Auto LCR check and measurement * Low battery indication: ≤6.8V
BulletPoint5 : Instead of the usual black and white display, this detector shows the results in colour.
Color : Multicolored
ExternallyAssignedProductIdentifier : 4711605285759
Hazmat1 : UN1993
Hazmat10 : CA_SmallLithiumIonBatteryWithEquipment
Hazmat11 : CN_SmallLithiumIonBatteryWithEquipment
Hazmat12 : IT_SmallLithiumIonBatteryWithEquipment
Hazmat13 : ES_SmallLithiumIonBatteryWithEquipment
Hazmat14 : IN_SmallLithiumIonBatteryWithEquipment
Hazmat15 : MX_SmallLithiumIonBatteryWithEquipment
Hazmat16 : SG_SmallLithiumIonBatteryWithEquipment
Hazmat17 : AU_SmallLithiumIonBatteryWithEquipment
Hazmat18 : BR_SmallLithiumIonBatteryWithEquipment
Hazmat19 : TR_SmallLithiumIonBatteryWithEquipment
Hazmat2 : UN3481
Hazmat20 : AE_SmallLithiumIonBatteryWithEquipment
Hazmat21 : SA_SmallLithiumIonBatteryWithEquipment
Hazmat22 : EG_SmallLithiumIonBatteryWithEquipment
Hazmat23 : NL_SmallLithiumIonBatteryWithEquipment
Hazmat24 : SE_SmallLithiumIonBatteryWithEquipment
Hazmat25 : PL_SmallLithiumIonBatteryWithEquipment
Hazmat26 : BE_SmallLithiumIonBatteryWithEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryWithEquipment
Hazmat28 : IE_SmallLithiumIonBatteryWithEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : US_SmallLithiumIonBatteryWithEquipment
Hazmat6 : GB_SmallLithiumIonBatteryWithEquipment
Hazmat7 : DE_SmallLithiumIonBatteryWithEquipment
Hazmat8 : FR_SmallLithiumIonBatteryWithEquipment
Hazmat9 : JP_SmallLithiumIonBatteryWithEquipment
IncludedComponents : UT612
IncludedComponents1 : LCR-TC11
IncludedComponents2 : Battery
IncludedComponents3 : Manual
IncludedComponents4 : Type-C Charger
IncludedComponents5 : test lead
ItemName : Unit LCR Meter UT612 Capacitance Meter LCR Meter 20000 insolution Resistance Meter with LCD Backlight Display(UT612)
ItemPackageDimensions_Height : 130 millimeters
ItemPackageDimensions_Length : 200 millimeters
ItemPackageDimensions_Width : 120 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : lcr-meters
Manufacturer : UNI-Trend
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : +-0.1%
MeasurementType : LCR Meter
MinimumOperatingVoltage : 0.6 volts_of_alternating_current
ModelName : YQ-LCR-TC11
ModelNumber : HY-UT612
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : HY-UT612
Pattern : HY-UT612
PowerSourceType : Battery Powered

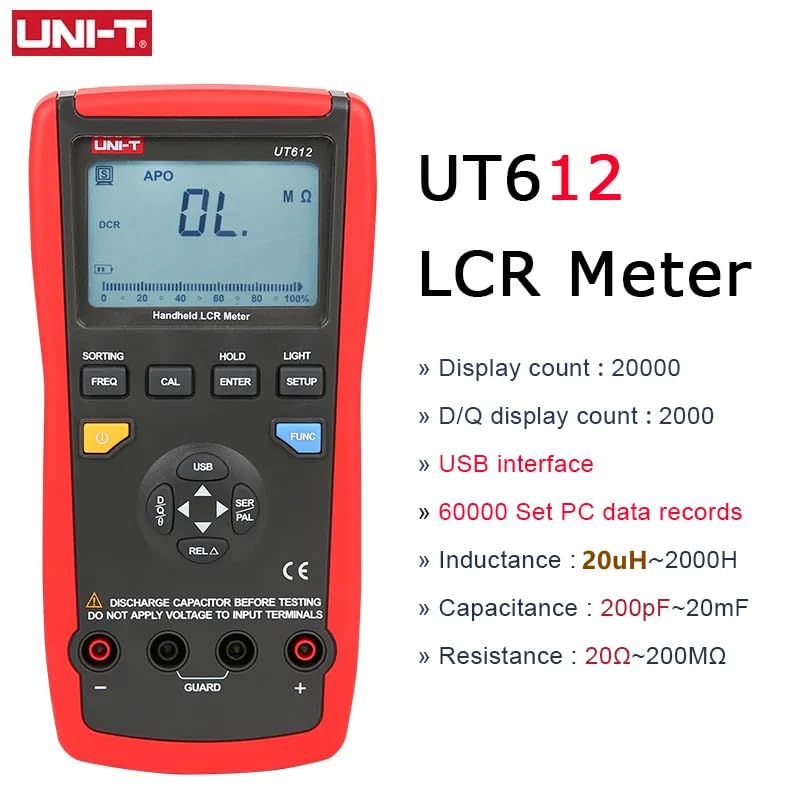

ProductDescription : UT612 LCR Meter

UT612 LCR meter is used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 selectable frequencies in AC mode.

UT612 can be used in production lines, component inspection and electronic maintenance.

Features of UT612 LCR Meter

Certifications: CE, UKCA

● Auto power off

● Data hold

● Relative mode

● USB interface

● LCD backlight

● Deviation ratio measurement

● Comparison function

● Calibration funtion

● Output impedance: 120Ω

● Auto LCR check and measurement

● Low battery indication: ≤6.8V

Specifications Range UT612

Inductance (H) 20uH~2000H ±(0.5%+5)

Capacitance (F) 200pF~20mF ±(0.5%+5)

Resistance (Ω) 20Ω~200MΩ ±(0.3%+5)

Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz/100kHz √

Operating voltage 0.6Vrms √

Test parameters L/C/R/DCR/Q/D/θ/ESR √

Features

Display count 20000

D/Q display count 2000

D/Q resolution 0.001 √

Auto range √

Test frequency real-time display √

Measurement mode Series/Parallel √

Auto power off √

Low battery indication ≤6.8V √

Data hold √

Relative mode √

USB interface √

USB interface/PC data records 60000

LCD backlight √

Analog bar graph 26

Deviation ratio measurement √

Comparison function √

Calibration function √

Output impedance 120Ω √

Auto LCR check and measurement √
ProductSiteLaunchDate : 2023-08-06T13:37:06.848Z
Size : UNI-T UT612
SpecificationMet1 : CE
SpecificationMet2 : UKCA
SpecificationMet3 : RoHS
SpecificationMet4 : ISO 9001
SpecificationMet5 : CSA
Style : Ground resistance meter
SupplierDeclaredDgHzRegulation : transportation
UnitCount : 1
UnspscCode : 41113600
Wattage : 5 watts
