Specification
Brand : HJCMOONB
BulletPoint1 : Bearings
BulletPoint2 : Model Number: LM25UU LM30UU LM35UU LM40UU
BulletPoint3 : Guide Width or Diameter: 25 30 35 40
BulletPoint4 : Tips: ABEC-1 is only suitable for simple sliding if you need high requirements of operation please buy ABEC-5.
BulletPoint5 : Linear Bushing model LM is a linear motion system used in combination with a cylindrical LM shaft to perform infinite straight motion. The balls in the loaded area of the nut are in point contact with the LM shaft. This allows straight motion with minimal friction resistance and achieves highly accurate and smooth motion despite the small permissible load.The nut uses high-carbon chromium bearing steel and its outer and inner surfaces are ground after being heat-treated.
Color : One Color
ExternallyAssignedProductIdentifier : 9029027226393

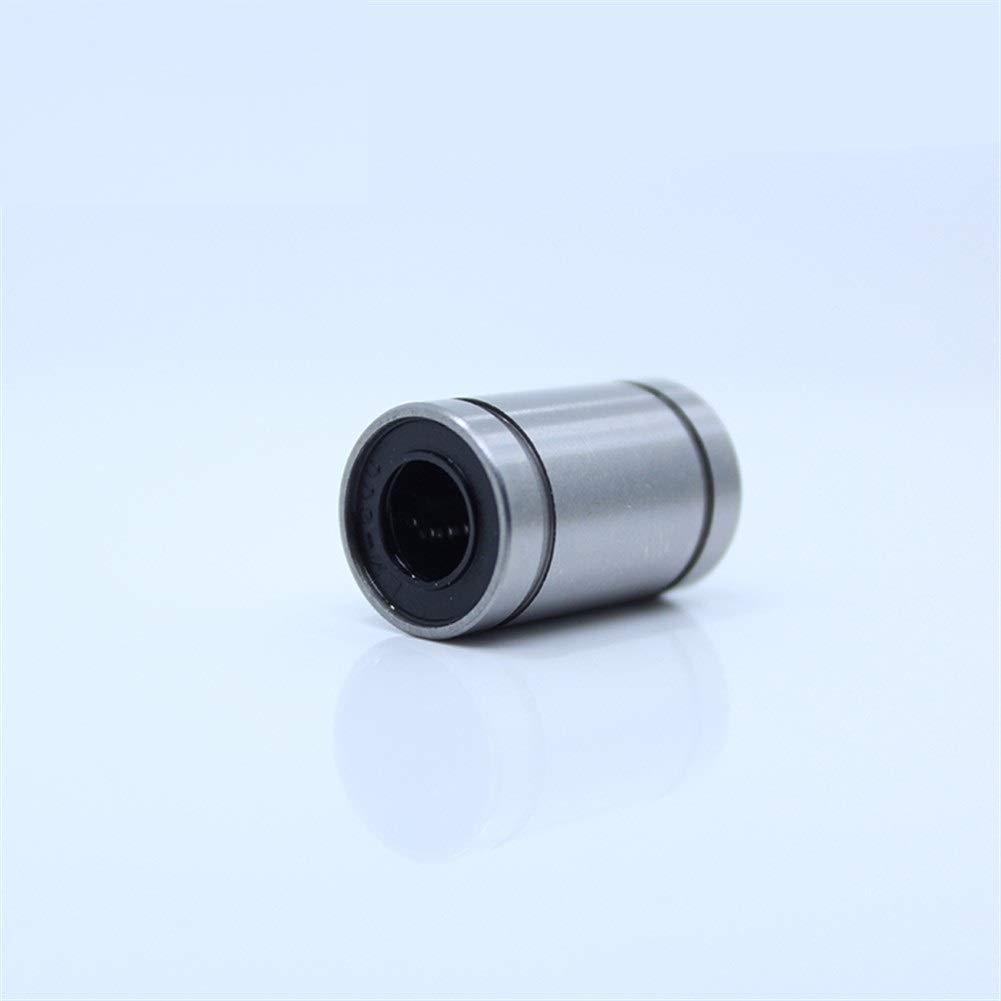

ItemName : HJCMOONB Linear Bearing LM25UU LM30UU LM35UU LM40UU Linear Motion Bushing ABEC-1 2PCS Standard Linear Bearing Linear Ball Bearings(LM40UU A1 2PCS)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-ball-bearings
Manufacturer : HJCMOONB
ModelNumber : HJCMOONB
NumberOfItems : 1
PartNumber : HJCMOONB
ProductDescription : Bearings
Interchangeability
Since the dimensional tolerances of the Linear Bush's components are standardized they
are in changeable. The LM shaft is machined through cylindrical grinding which can easily
be performed and it allows highly accurate fitting clearance to be achieved.
Highly Accurate Retainer Plate
Since the retainer which guides three to eight rows of balls is integrally molded it is capable
of ac-curately guiding the balls in the traveling direction and achieving stable running
accuracy.Small-diameter types use integrally molded retainers made of synthetic resin.It
reduces noise gen-erated during operation and allows for superb lubrication.
Application
The Linear Bushing is used in a broad array of applications such as slide units of precision
equipment including OA equipment and peripherals measuring instruments automatic
recorders and dital 3D measuring instruments industrial machines including multi-spindle
drilling machine punchingpress tool grinder automatic gas cutting apparatus printing
machine card selector and food packing machine.
Details
Model: LM25UU
Ball circuit: 6
Inscribed circle Diameter: 25 mm
Out Diameter: 40 mm
Length: 59 mm
Dynamic Cr: 100 kgf
Static Cor: 160 kgf
Weight: 206 g
Quantity: 1 Lot = 2 PCS
Grade: ABEC-1
Model: LM30UU
Ball circuit: 6
Inscribed circle Diameter: 30 mm
Out Diameter: 45 mm
Length: 64 mm
Dynamic Cr: 160 kgf
Static Cor: 280 kgf
Weight: 240 g
Quantity: 1 Lot = 2 PCS
Grade: ABEC-1
Model: LM35UU
Ball circuit: 6
Inscribed circle Diameter: 35 mm
Out Diameter: 52 mm
Length: 70 mm
Dynamic Cr: 170 kgf
Static Cor: 320 kgf
Weight: 370 g
Quantity: 1 Lot = 2 PCS
Grade: ABEC-1
Model: LM40UU
Ball circuit: 6
Inscribed circle Diameter: 40 mm
Out Diameter: 60 mm
Length: 80 mm
Dyn
ProductSiteLaunchDate : 2025-05-10T09:55:42.907Z
Size : LM40UU A1 2PCS
UnitCount : 1
