Specification
Brand : Erfo
BulletPoint1 : 【Specification】: 12 Volt Electric Micro Stroke Linear Actuator Stroke length = 75mm(3"); Retracted length =104.5mm(4"); Extended Length= 154.5mm(6"); Travel speed =0.6 inches/sec (15 mm/s);Maximum current draw = 2.5Amps; Maximum Load = 27lbs(120N).
BulletPoint2 : 【Durable and Sturdy】 Made of high quality aluminum alloy material and equipped with high-performance motor; Built in limit switch, stop at any position, automatically stop at the top, with IP54 protection, short circuit protection, and reliable.
BulletPoint3 : 【Low Noise Design】The Linear Actuator adopt low noise motor, the noise level below 50 dB, This makes it suitable for use in hospitals, massage centers, and other noise-sensitive environments.
BulletPoint4 : 【Wide Application】Widely used in electric lifting systems, Intelligent Range Hood, Fan Blades, Cabinets, Window Opener, Robotics, and Home Automation. electric recliners, Ideal for medical chairs, electric equipment, camera racks, electric sofas, cameras, etc.

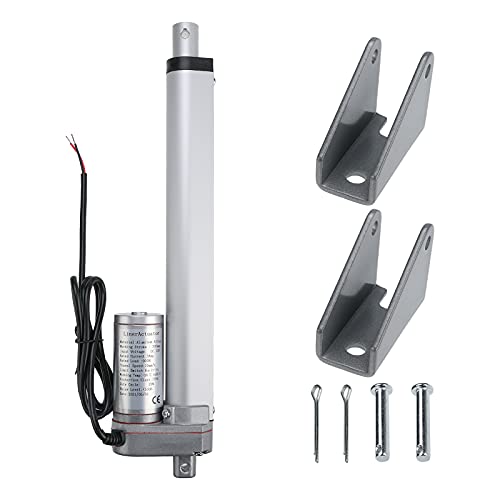

BulletPoint5 : 【Easy Install & Safe】Quick mounted by using brackets, and easy connect the actuator to your 12-volt safe power supply. Package contains 1 mini linear actuator and 2 bracket sets.
Color : Silver
ExternallyAssignedProductIdentifier : 7598662997705
ExternallyAssignedProductIdentifier1 : 0617256119266
ExternallyAssignedProductIdentifier2 : 617256119266
ItemName : Erfo DC 12V 8inch Stroke Linear Actuator with Mounting Bracket,Heavy Duty Linear Electric Actuator,Stroke Electric Actuators for Recliner TV Table Lift
ItemPackageDimensions_Height : 36.2 centimeters
ItemPackageDimensions_Length : 5.6 centimeters
ItemPackageDimensions_Width : 9.8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-actuators
LoadCapacity : 225 pound
Manufacturer : Erfo
Material : Aluminum
ModelNumber : ZOUY005
NumberOfItems : 1
PartNumber : ZOUY005

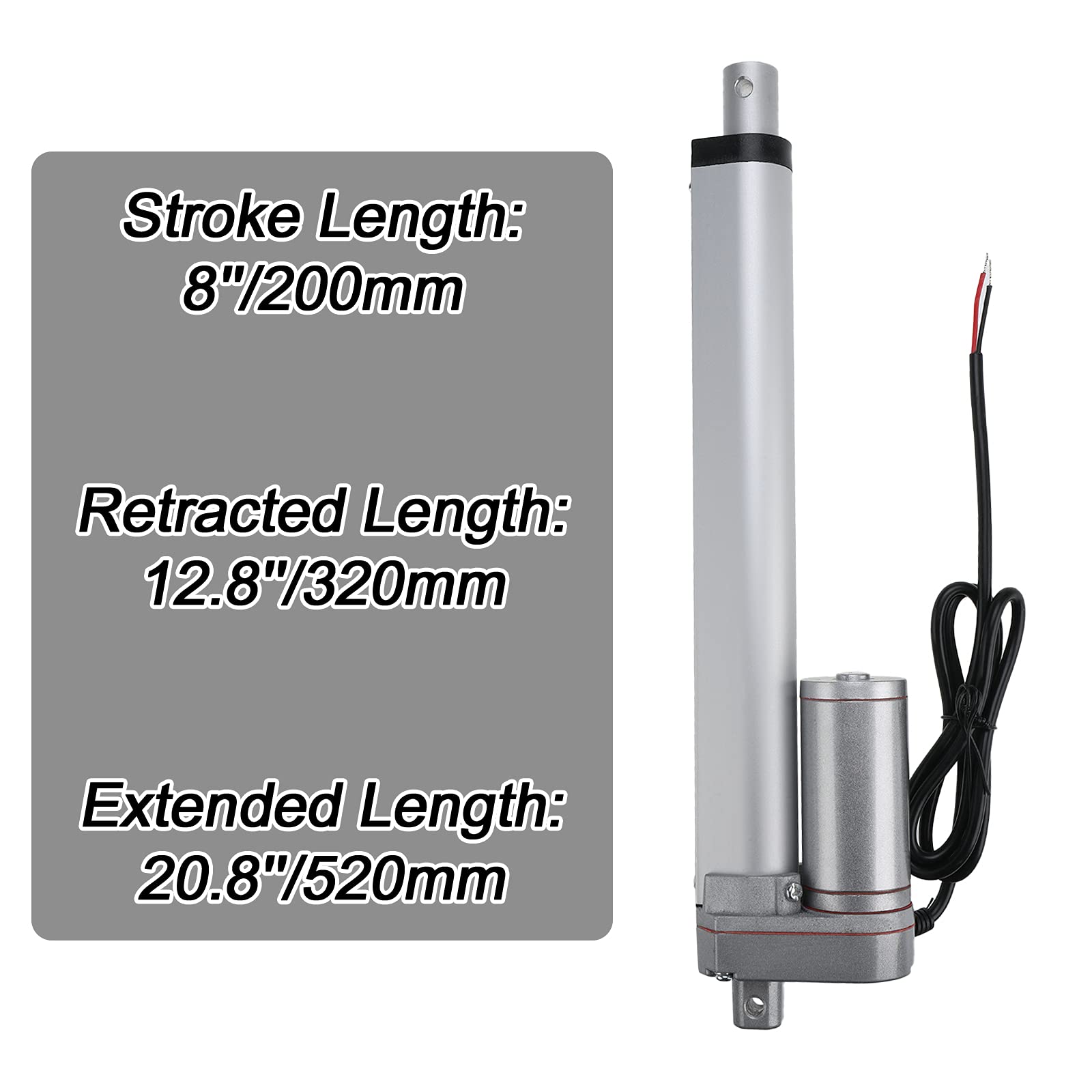

ProductDescription : Features: There is a protection switch at both ends of the product. When the telescopic rod moves to the bottom of either end, it will automatically protect and disconnect the power supply. The expansion and contraction of the product is controlled by the positive and negative poles of the motor (that is, the positive pole is extended or the negative pole is retracted), and the direction of expansion and contraction can be changed when the positive and negative connections are switched. The product is linearly extended and retracted by a motor, and the rod handle will only extend and not rotate. The inside of the product is designed by high precision metal gears, with low noise and long service life. The product has a wide range of applications such as: TV lifting tables, lifting frames, massage chairs, medical beds or chairs, automobiles, automation equipment, electric sofas, smart homes, etc. Specifications: Color: Silver Material: Aluminum Alloy Input Voltage: DC 12V Stroke length: 200mm(8) Retracted length: 320mm(12.8) Extended Length: 520mm(20.8) Rated Load: 900N Travel Speed:10mm/s IP Rating: IP54 Noise Level: Current: 3Amp Limit Switch: Built in Working Temperature: 20C to 65C How To Install: 1. Prepare to connect the two wires of the actuator to the 12 volt battery. 2.Connect the blue wire to the positive pole and the gray wire to the negative pole to extend the actuator. To retract it, simply reverse the terminal connection. 3. Or you can prepare a reverse polarity relay or switch for the actuator (not included). When you want the actuator to extend and retract, just press the switch. 4. When the power is turned off, your actuator will maintain its position. It will stop automatically when it reaches the end point. 5. The limit switch is pre installed in the actuator and cannot be adjusted.
ProductSiteLaunchDate : 2021-07-07T22:11:09.948Z
Size : 3inch (75mm)
Style : 120N
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 31251500
