Specification
Brand : MAOPINER

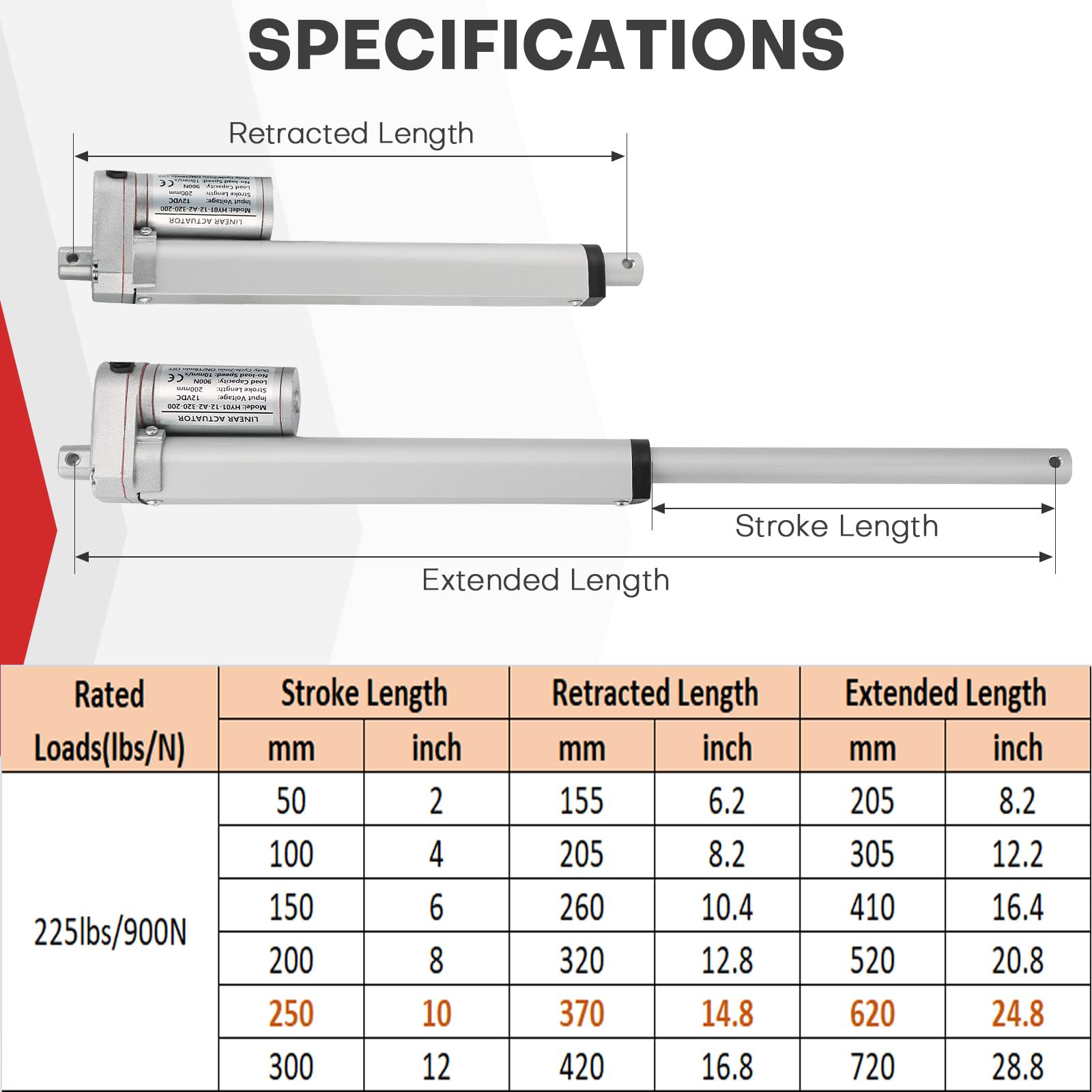

BulletPoint1 : 12 Volt 10 Inch Stroke Linear Actuator Specification: Stroke length = 250mm(10"); Retracted length = 370mm(14.8"); Extended Length= 620mm(24.8“); Travel speed = 0.39 inches/sec (10 mm/s);Maximum current draw = 3Amps; Maximum Load = 202lbs(900N).
BulletPoint2 : Material: The Linear Actuator is made of high quality aluminum alloy material, sturdy enough and with fashion look, High performance motor ,Built-in high quality limit switch.
BulletPoint3 : Low noise: The Linear Actuator Motor is with low noise design, noise level below 50 dB
BulletPoint4 : IP54 rated: (suitable for outdoor use). The linear actuator is Commonly used in automotive, medical devices and engineering industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.
BulletPoint5 : Package Included: 1pc 12V 10 Inch Linear Actuator with 2pcs mounting brackets.
BulletPoint6 : Specification: stroke length: 18 inch(450mm); travel speed: 0.55in/sec(14mm/sec); retracted length: 590mm(23"); extended length: 1040mm(41"); current draw: 4 amps.
Color : Silver
CompatibleDevices1 : Adapter
CompatibleDevices2 : Remote
ExternallyAssignedProductIdentifier : 5438077638416
ExternallyAssignedProductIdentifier1 : 712324161526
ExternallyAssignedProductIdentifier2 : 0712324161526
ExternallyAssignedProductIdentifier3 : 00712324161526
Hazmat1 : LITHIUM METAL BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : CN_SmallLithiumMetalBatteryInEquipment
Hazmat11 : DE_SmallLithiumMetalBatteryInEquipment
Hazmat12 : EG_SmallLithiumMetalBatteryInEquipment
Hazmat13 : ES_SmallLithiumMetalBatteryInEquipment
Hazmat14 : FR_SmallLithiumMetalBatteryInEquipment
Hazmat15 : GB_SmallLithiumMetalBatteryInEquipment
Hazmat16 : IN_SmallLithiumMetalBatteryInEquipment
Hazmat17 : IT_SmallLithiumMetalBatteryInEquipment
Hazmat18 : JP_SmallLithiumMetalBatteryInEquipment
Hazmat19 : MX_SmallLithiumMetalBatteryInEquipment
Hazmat2 : UN3091
Hazmat20 : NL_SmallLithiumMetalBatteryInEquipment
Hazmat21 : PL_SmallLithiumMetalBatteryInEquipment
Hazmat22 : SA_SmallLithiumMetalBatteryInEquipment
Hazmat23 : SE_SmallLithiumMetalBatteryInEquipment
Hazmat24 : SG_SmallLithiumMetalBatteryInEquipment
Hazmat25 : TR_SmallLithiumMetalBatteryInEquipment
Hazmat26 : US_SmallLithiumMetalBatteryInEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumMetalBatteryInEquipment
Hazmat6 : AU_SmallLithiumMetalBatteryInEquipment
Hazmat7 : BE_SmallLithiumMetalBatteryInEquipment
Hazmat8 : BR_SmallLithiumMetalBatteryInEquipment
Hazmat9 : CA_SmallLithiumMetalBatteryInEquipment
IncludedComponents : Linear Actuator
ItemName : MAOPINER DC12V 10inch Stroke Linear Actuator with Mounting Bracket 900N(202lbs) Maximum Lift 10mm/s for Recliner TV Table Lift Massage Bed Electric Sofa Linear Actuator
ItemPackageDimensions_Height : 41.0972 centimeters
ItemPackageDimensions_Length : 5.207 centimeters
ItemPackageDimensions_Width : 10.1092 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-actuators
LoadCapacity : 225 pound
Manufacturer : MAOPINER
Material : Aluminum
ModelNumber : CC-21-38
NumberOfItems : 1
PackageLevel : unit
PartNumber : CC-21-38
ProductDescription : Specification:



Color: Silver
Material: Aluminum Alloy
Input Voltage: DC 12V
Rated Current: 3Amp
Stroke length = 250mm(10")
Retracted length = 370mm(14.8");
Extended Length= 620mm(24.8")
Rated Load: 900N
Travel Speed: 10mm/s
Limit Switch: Built-in
Working Temperature: -20ºC to 65ºC
Protection Class: IP54
Duty Circle: 25%
Noise Level: <50dB

How To Install :



1. Prepare to connect the two wires of the actuator to a 12 volt battery
2.Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch
4. Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5.The actuator has pre-installed inner limit switch, it cannot be adjustable.
6. It comes with mounting brackets.


How to protect your actuator:


1. Please use the 12V DC power adapter
2. Please do not exceed the rated load
3. All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.
4. Please be careful, the actuator not completely waterproof

Widly Use:


Furniture and home application
Hospitals and healthcare
Industrial and construction application
Agricultural machinery

Package Included:



1 X 10" Linear Actuator
2 X Mounting Bracket
1 X Screw Set
ProductDescription1 : 1000N/220lbs Heavy Duty 450mm: Our actuator 12v is equipped with a maximum push-pull load of 220lbs (1000N). The high-quality aluminum alloy construction of this linear actuator 12v 18 inch stroke offers exceptional durability for long-term use
ProductDescription2 : Powerful & Speedy Performance: This 12v actuator boasts a travel speed of 14mm/s, which make our high speed linear actuator tackles demanding tasks with ease
ProductDescription3 : Quiet & Secure Operation: Upgraded low-noise design (under 50dB) ensures our 12v linear actuator's smooth operation. Built-in limit reverse polarity switches 12v and safety locks prevent overruns and guarantee users' safety
ProductDescription4 : Waterproof & Versatile: IP54-rated waterproof linear actuator allows use in various environments, from homes to farms. Our electric actuator is ideal for furniture, medical equipment, automation projects, and more
ProductDescription5 : Easy Installation: The 12 volt linear actuator includes a mounting brackets and a polarity reversing switch for simple installation. This makes it easy and convenient to connect and set up your linear motion actuator
ProductSiteLaunchDate : 2021-03-30T08:14:15.888Z
Reusability : Single Use
SafetyDataSheetUrl : https://cdn.shopify.com/s/files/1/0061/7735/7891/files/Medium_Mini_Actuator_PA-09.pdf?13874
Size : 250mm Stroke
StreetDate : 2018-01-08T00:00:01Z
Style : 330
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 31251500
Voltage : 12 volts
