Specification
Brand : Kaibrite
BulletPoint1 : Effective stroke: 300mm
BulletPoint2 : Accuracy: 0.03mm; Speed: 40-100mm/s
BulletPoint3 : Ballscrew diameter: 12mm; Lead: 4mm
BulletPoint4 : Horizontal load: 30kg-max 50kg (66-110lb); Vertical load: 15kg (33lb)
BulletPoint5 : Nema 23 stepper motor: Voltage: 24V; Current: 3A; Torque: 0.9NM
ExternallyAssignedProductIdentifier1 : 0712004701103
ExternallyAssignedProductIdentifier2 : 712004701103
FitType : Vehicle Specific

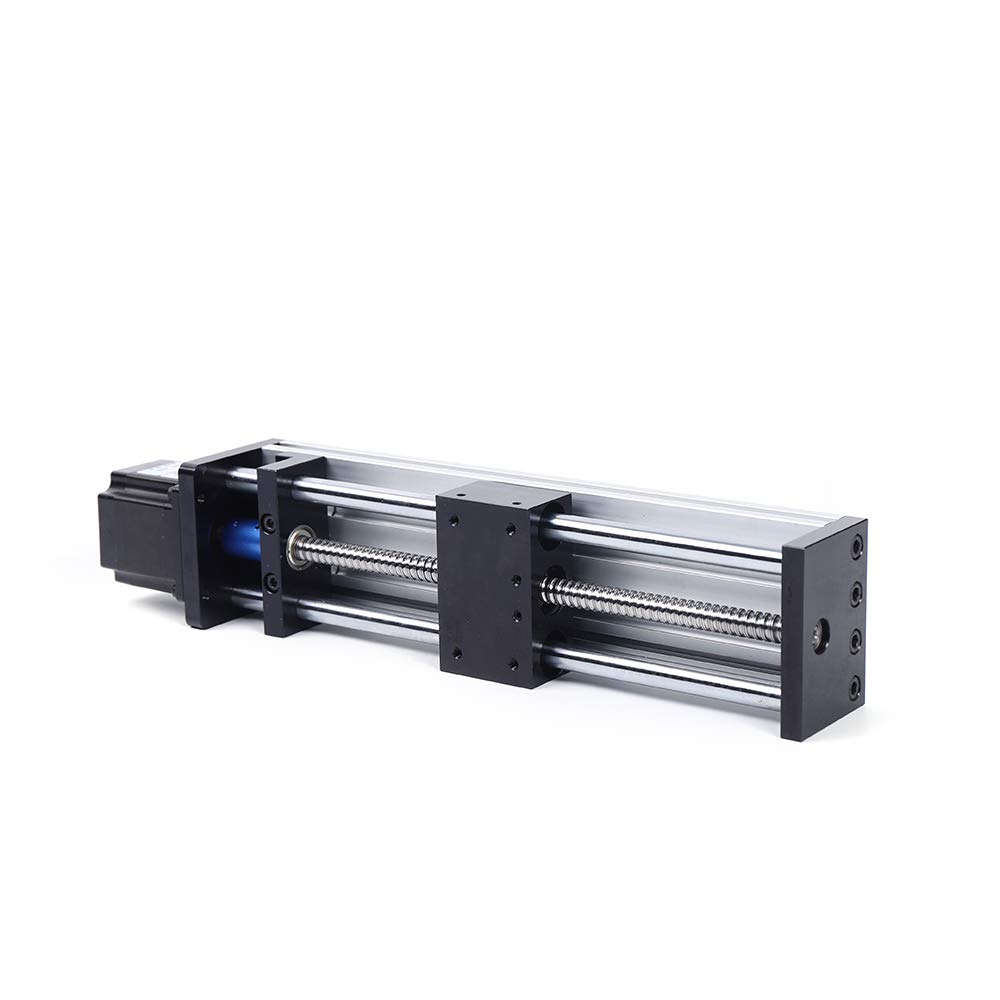

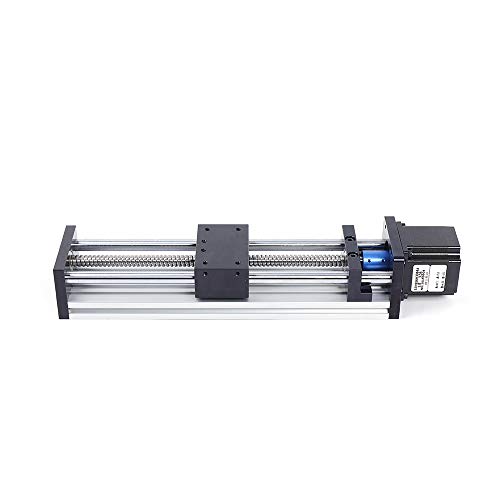

ItemName : 100/200/300mm GGP Ball Screw Linear with Nema 23 Stepper Motor, Linear Guide Slide Table Ball Screw Motion Rail CNC Linear Guide Stage Actuator (300mm)
ItemPackageDimensions_Height : 1.18 inches
ItemPackageDimensions_Length : 11.42 inches
ItemPackageDimensions_Width : 8.66 inches
ItemPackageQuantity : 1
ItemTypeKeyword : linear-motion-guides
Manufacturer : BEVOGIE
Material : Plastic
ModelNumber : JT-S6-10M
NumberOfItems : 2
PartNumber : JT-S6-10M
ProductDescription :

Effective Stroke (The distance the slider can move excluding the length of the slider): 300mm/11.81in

Total Product Length (Including Motor): 476mm/18.74in

Specifications:

Model: GGP

Material: Aerospace Aluminium

Effective stroke: 300mm

Accuracy: 0.03mm

Ballscrew diameter: 12mm;  Lead: 4mm

Speed: 40-100mm/s

Horizontal load: 30kg-max 50kg (66-110lb)

Vertical load: 15kg (33lb)

Lead: 4mm (one turn of the screw rod)

Product clearance: 1-2MM

Nema 23 stepper motor:

Diameter 57x56mm (2.2x2.2in)

Voltage: 24V

Current: 3A

Motor Speed: 600 rpm

Torque: 0.9NM

Package Included:

1pc Ball Screw Guide Sliding Table

1pc 57 Stepper Motor

ProductSiteLaunchDate : 2021-05-14T14:59:00.032Z
Size : 300mm
SupplierDeclaredDgHzRegulation : not_applicable
