Specification
Brand : LIKARVA
BulletPoint1 : ➤【Durablity】High-quality aerospace aluminum and anodic oxidation treatment make this Linear Guide Slide Table resistant to wear and tear and impact, ensuring long-lasting use.
BulletPoint2 : ➤【Strong Load Capacity】The sturdy base with stable bearings makes the load larger, the maximum horizontal load is 44.09 lbs, vertical load is 22.05 lbs, so you can use it with confidence. Ball screw accuracy is as high as ±0.03mm for accurate positioning and stable operation.
BulletPoint3 : ➤【Flexible Installation】M6 movable nut at the bottom and side mounting slots for easy fixing make it easy to install. The linear slide can also be combined with a multi-axis, horizontal cross, gantry, three-axis, four-axis, and so on.
BulletPoint4 : ➤【High Efficiency】A smooth linear track allows the slider to slide steadily, and the special 57 stepper motor (72W) can reach a maximum speed of 600 rpm, which can effectively improve the working efficiency.
BulletPoint5 : ➤【Compact Structure】The base is built with high-quality profiles and carries a solid tail-end bearing assembly, while the head end is carefully equipped with a 57-stepper motor and articulated by flanges. In addition, the unit is equipped with a slide, a screw, and a coupling, thus building a mechanical transmission system that combines rigidity, precision, and efficiency.
ExternallyAssignedProductIdentifier1 : 0749767474814
ExternallyAssignedProductIdentifier2 : 749767474814
GradeRating : Industrial
IncludedComponents : 1*Ball Screw Guide Sliding Table 1*57 Stepper Motor
ItemForm : Rod
ItemName : Linear Guide Actuator Table 300mm 12'' Stroke CNC Linear Guide Rail Slide Stage Ball Screw Guide Actuator Table Motorized 57 Stepper Motor for DIY CNC Router Milling Machine
ItemPackageDimensions_Height : 37.7 centimeters
ItemPackageDimensions_Length : 1.9 centimeters
ItemPackageDimensions_Width : 9.1 centimeters
ItemPackageQuantity : 1
ItemShape : Cylindrical
ItemTypeKeyword : linear-motion-guides
Manufacturer : LIKARVA
Material : Aerospace Aluminium
ModelNumber : 300mm 12'' Stroke
NumberOfItems : 1
PartNumber : Linear Guide Slide Table
ProductDescription :

300mm 12'' Stroke Electric CNC Linear Guide Stage Actuator Motorized 23Nema Stepper Motor

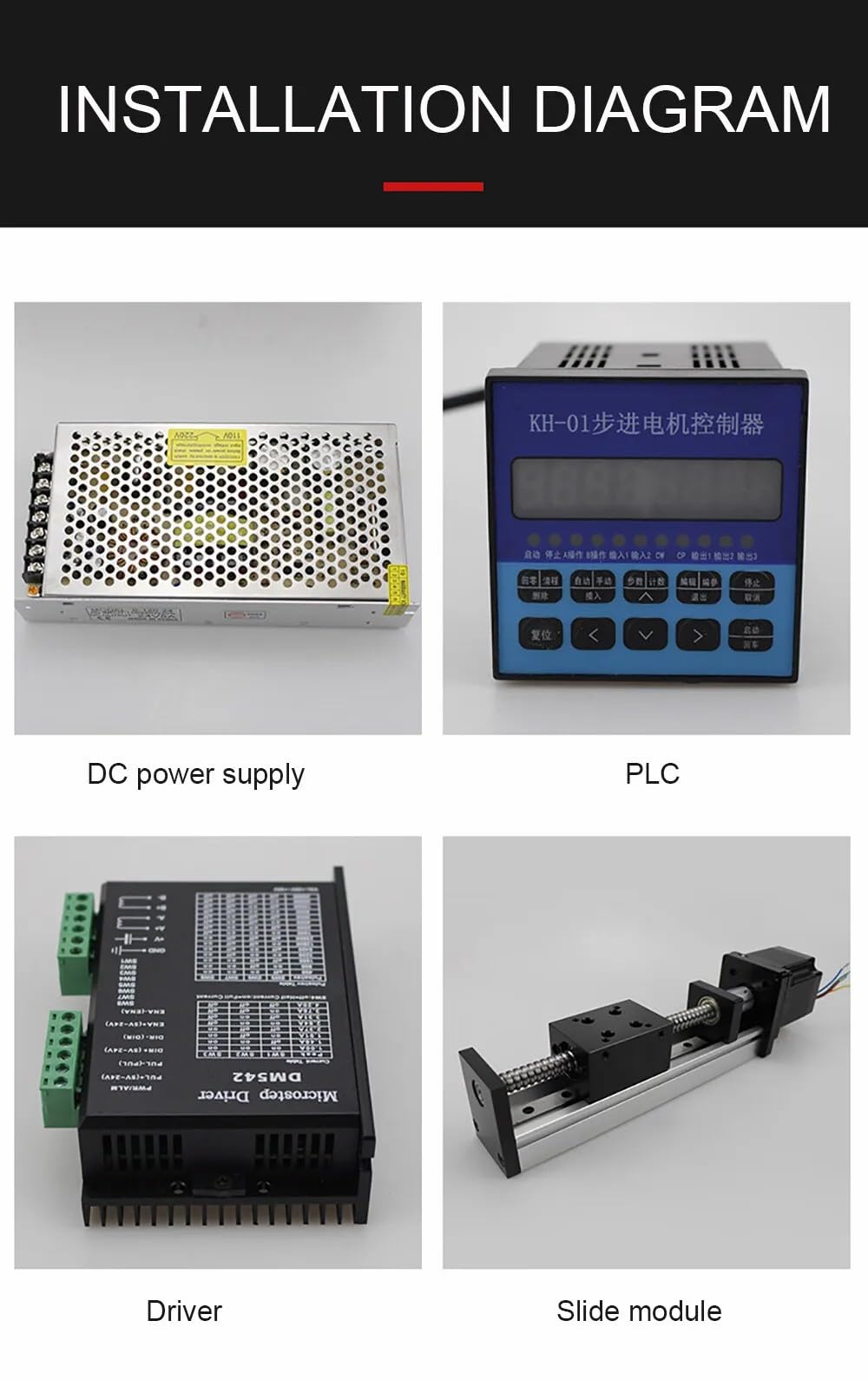

[Please note that drivers and controllers are not included in this product, so please purchase them yourself.]

Details

Slider: It is fixed by screws, which can increase stability and improve accuracy.

Cover: It protects against dust and helps keep the internal components clean.

Application

Linear Guide Slide Table can be used in engraving machines, cutting machines, welding machines, 3D printers, and dispensing machines, it is suitable for lathes, CNC machine tools, machining, mechanical equipment, automation equipment, and other industrial fields.

Specification

Material: Aerospace Aluminium

Process: Anodic Oxidation

Model: GGP

Assembly Required: No

Color: Black

Accuracy: 0.03mm/0.001in

Ballscrew Diameter: 12mm/0.47in

Lead: 4 mm/0.16in

Speed: 40-100 mm/1.57-3.94in/s

Horizontal Load: Max.20kg/44.09lbs

Vertical Load: 10kg/22.05lbs

Motor Power: 72W

Motor Speed: 600 rpm

Voltage: 24V

Current: 3A

Torque:1NM

Standard Motor: 57 Stepper Motor

Effective Stroke (The distance the slider can move excluding the length of the slider): 300mm/11.81in

Total Product Length (Including Motor): 476mm/18.74in

Package Included

1*Ball Screw Guide Sliding Table

1*57 Stepper Motor

Notes

1. Please note that drivers and controllers are not included in this product, so please purchase them yourself.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.

ProductSiteLaunchDate : 2024-05-16T07:23:46.408Z
Size : 12'' Stroke
Style : Linear Guide Slide Table with 57 Stepper Motor
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 2
UnspscCode : 31161500
