Specification
Brand : DONSU
BulletPoint : Rollers, bearings, belts and much more - (2 Each) 6006-ZZ, 6006-2Z, 9106KDD Shielded Radial Ball Bearing 30X55X13 For SpinCo - CNZV156A173
BulletPoint1 : ★High-precision electric rotating platform, new construction, new technology; key indicators have passed strict inspection. This series of products are used for laser precision machining, 3D scanning measurement system, etc., using worm gear, friction resistant material, high precision of rotation precision, outer ring With scale, interface, convenient signal output.
BulletPoint2 : ★ Worm gear transmission mode, using special process, high wear resistance, reliable and reliable, high precision shafting makes high rotation precision, large bearing capacity and stable movement
BulletPoint3 : ★ Widely used in industrial automation and scientific experiments, the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading. The electronically controlled rotary table can be used flat, vertically, and inverted.
BulletPoint4 : ★ Fine grinding worm drive, comfortable movement, backwards can be neglected, the motor is connected with the worm through a high-quality elastic coupling, synchronous drive without noise. Dash the outside of the platform to easily read the scale.
BulletPoint5 : ★The limit function and zero function can be added. The stage can be used vertically or assembled with other stages. The prototype stepper motor 42 stepping motor (1.8°). The servo motor can be replaced according to requirements. The steel cup has high precision, large carrying capacity and long service life.
ExternallyAssignedProductIdentifier1 : 0734830786116
ExternallyAssignedProductIdentifier2 : 734830786116
ExternallyAssignedProductIdentifier3 : 00697950817910
IncludedComponents : no

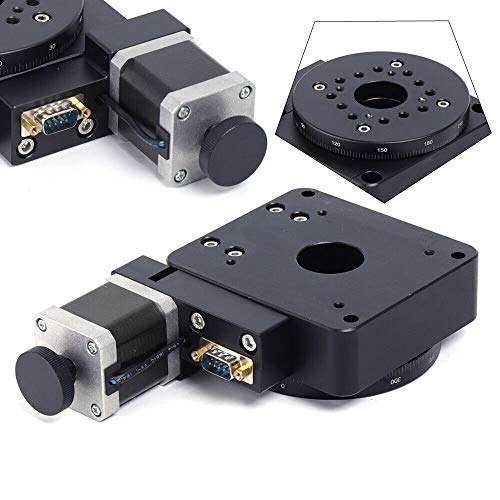

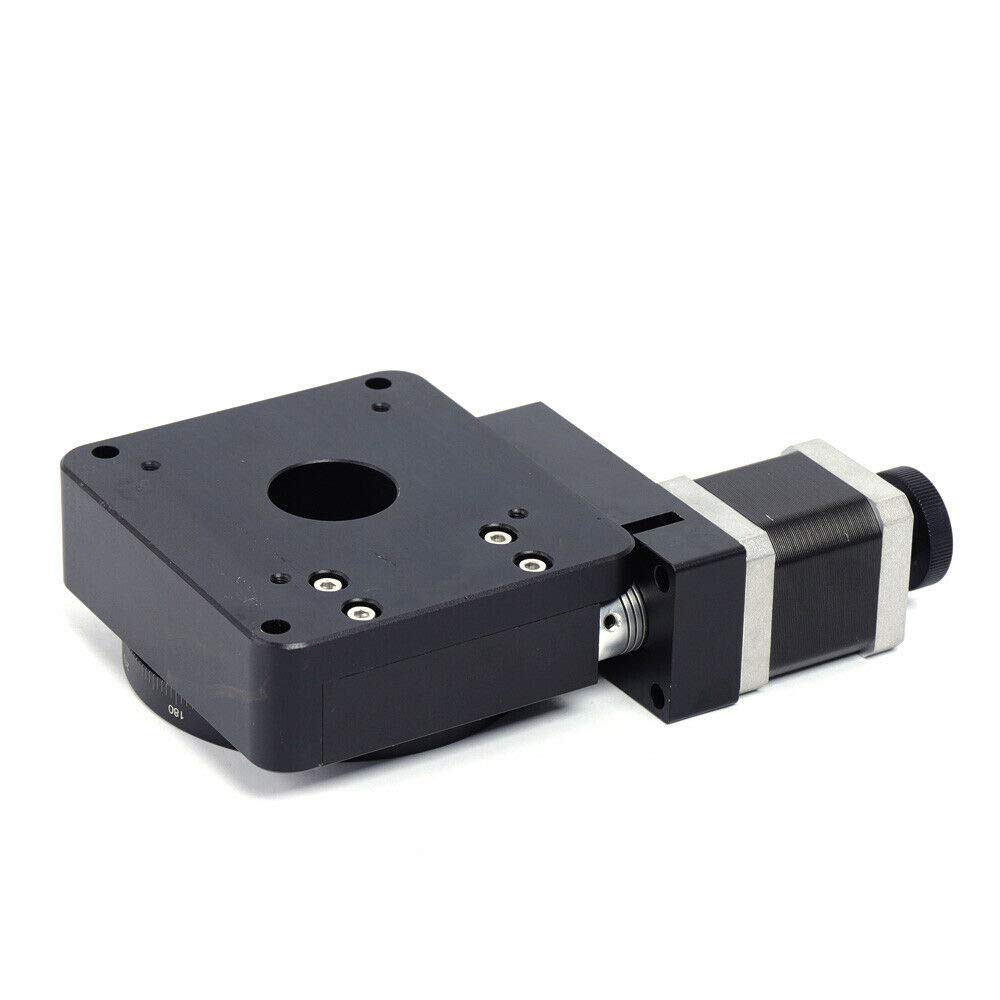

ItemName : HT03RA100 Rotating Platform Electric Rotating Machine,Industrial Automation 360° Precision Electric Optical Rotating Platform 100mm
ItemPackageDimensions_Height : 7.12 inches
ItemPackageDimensions_Length : 6 inches
ItemPackageDimensions_Width : 6 inches
ItemPackageQuantity : 1
ItemTypeKeyword : linear-roller-bearings
Manufacturer : DONSU
Material : Aluminum-black anodized
NumberOfItems : 1
PartNumber : DONSU
ProductDescription :

Product description:

★High-precision electric rotating platform, new construction, new technology; key indicators have passed strict inspection. This series of products are used for laser precision machining, 3D scanning measurement system, etc., using worm gear, friction resistant material, high precision of rotation precision, outer ring With scale, interface, convenient signal output.

★ Standard stepper motor and DB9 interface, choose controller flexibility, so we can provide a fully customized motion system. A timing platform with stepper motor and RS232 interface for easy connection to motion controllers.



Structural specifications:

Product model: HT03RA100

Itinerary : 360°

Table size: Φ100mm

Transmission mode: worm gear (reduction ratio 1/180)

Guide rail: bearing

Material: Aluminum-black anodized

Weight: 1.7kg

Resolution / Pulse: 0.01 ° (no subdivision)

                             0.0005° (20 subdivisions)

Design resolution: 0.01°, non-MS drive;

0.0005° = 1.8", 20MS drive

Rotation speed (maximum): 25° / sec

Repeatability: 0.005° = 18"

Absolute on-axis accuracy: 0.01° = 36"

Top board beat: 15μm

Recoil: 0.005° = 18"

Eccentricity: 10μm

Lost movement: 0.005° = 18"

Parallelization: 80μm

Load: 45kg

Packing size: 23*13*16cm

Gross weight: 2kg



Package Included:

1X HT03RA100 rotating platform

ProductSiteLaunchDate : 2019-11-24T08:00:00.000Z
