Specification
AgeRangeDescription : adult
Brand : CALT
BulletPoint1 : 400cm distance measurement range
BulletPoint2 : 1 meter shield cable out
BulletPoint3 : Max moving speed is 6 m/s, max force 16kg
BulletPoint4 : Wide range 5v 12v 24v dc supply
BulletPoint5 : Resolution 0.1mm per pulse
Color : 24V 4-20mA
ExternallyAssignedProductIdentifier : 6459018079692
ExternallyAssignedProductIdentifier1 : 0716852221240
ExternallyAssignedProductIdentifier2 : 716852221240

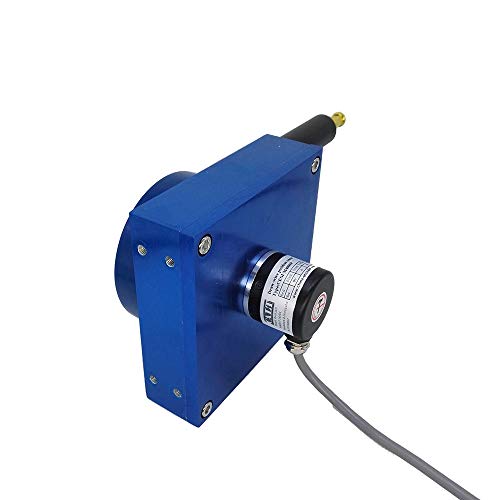

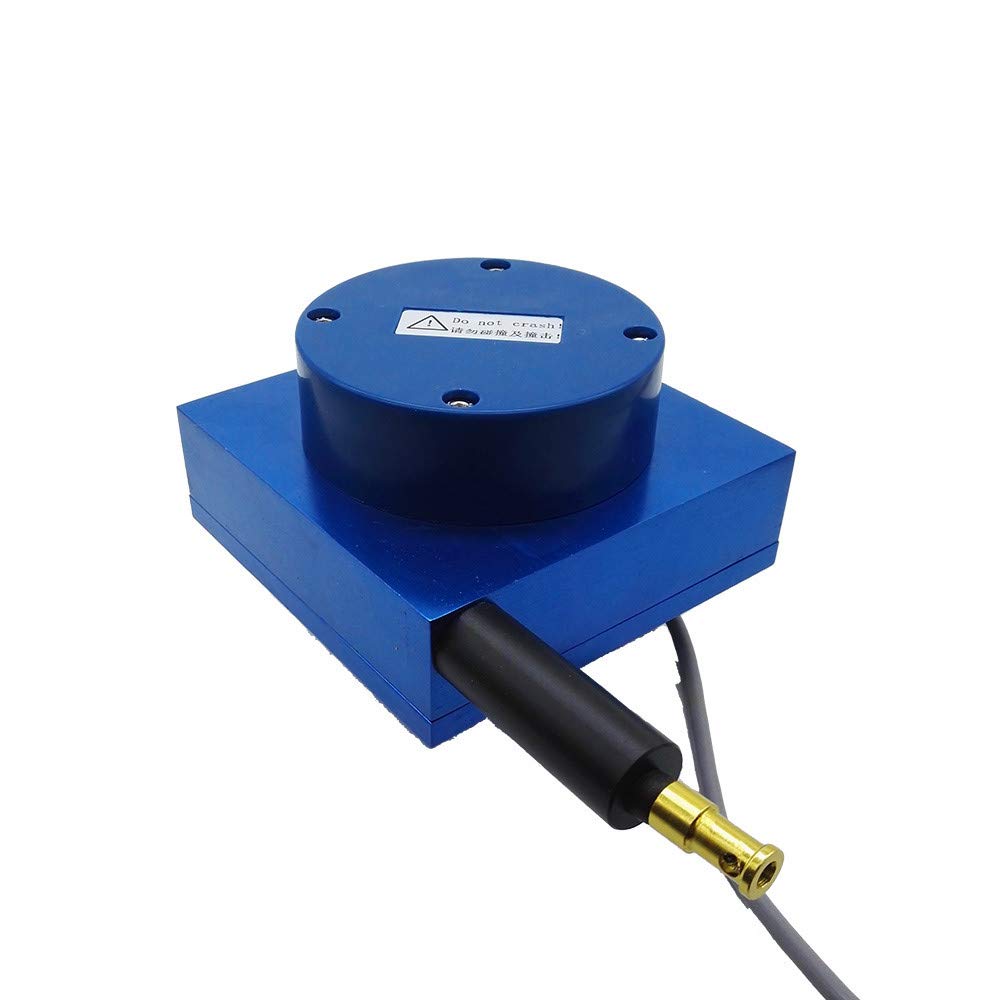

ItemName : 4000 mm Stroke Draw Wire Linear Displacement Sensor Transducer 24V Supply 4-20mA Output CWP-M4000A
ItemPackageDimensions_Height : 12 centimeters
ItemPackageDimensions_Length : 24 centimeters
ItemPackageDimensions_Width : 22 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-linear-sensors
Manufacturer : CALT
Material : Plastic
ModelName : GDBGJPKM
ModelNumber : GDBGJPKM
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DRAW-WIRE
ProductDescription :

Description

The color of the real product may be different ,each batch is not same ,have color yellow ,blue,green. Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.

Application areas

Linear guide system, the direct determination of the guide element, such as: the length limit, gantry cranes, level measurement
Hydraulic system, with the piston-oriented systems or hydraulic cylinder, the displacement sensor deflection of these devices to collect data
Scalable systems, such as presses, lifts, bending machine, bending machine
Chains, cranes and cable winch to adjust, such as forklifts, stage equipment, lifts and cranes device.

Measuring Range :0~4000mm
Detection method : Incremental encoder/Potentiometer
Revolution:0.1mm/pulse Rope :wire rope 0.8mm dia, Plastic coated wire rope ,rope maximum load: 16KG
Supply Voltage :as indicated
Signals output : Pushpull with A B Z 3 channels

Wiring (as indicated on photos)

you can order optical encoder seperately at this link:
https://www.amazon.com/dp/B01EWK9374?th=1

you can order indicator together at this link:
https://www.amazon.com/dp/B01LXKPOIA
ProductSiteLaunchDate : 2017-04-07T07:00:00.000Z
Size : One Size
UnitCount : 1
UnspscCode : 40000000
