Specification
Brand : MeitrciL
BulletPoint : Sensors
BulletPoint1 : Displacement Sensor: Machine electronic ruler can reduce transmission loss, support high-definition sound quality, and are highly compatible with various devices.
BulletPoint2 : Plug-Type Design: Pull pod displacement sensor adopts a plug in design, which is convenient and practical, with no noise output, and has an IP67 protection level.
BulletPoint3 : Compatibility: Adopting the principle of potentiometers, it changes with displacement at a given input voltage of 0-100%, with fast response, resolution: infinite uninterrupted analysis, repeatability: 0.01mm.
BulletPoint4 : Antioxidant Material: The Linear sensors is made of stainless steel material, with an antioxidant plug that is not easy to rust. The maximum load of the rod can reach 50KG.
BulletPoint5 : Scope of Application: Linear position sensor is widely used in fields such as automobiles, plastic machinery, transmission equipment, measurement systems, and cabinets.
Color : One Color
ExternallyAssignedProductIdentifier : 9495578579996
ExternallyAssignedProductIdentifier1 : 0760212167587
ExternallyAssignedProductIdentifier2 : 760212167587
IncludedComponents : Plug
ItemName : Injection Molding Electronic Ruler Pull Rod Linear Displacement Sensor, IP67 Level Machine Electronic Ruler Stainless Steel Linear Position Sensors Transducer (KTC-450)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 38 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-linear-sensors
Manufacturer : MeitrciL
ModelName : KSLLXMYF
ModelNumber : KSLLXMYF
NumberOfItems : 1
PartNumber : HC4NA1F
ProductDescription : Specification:

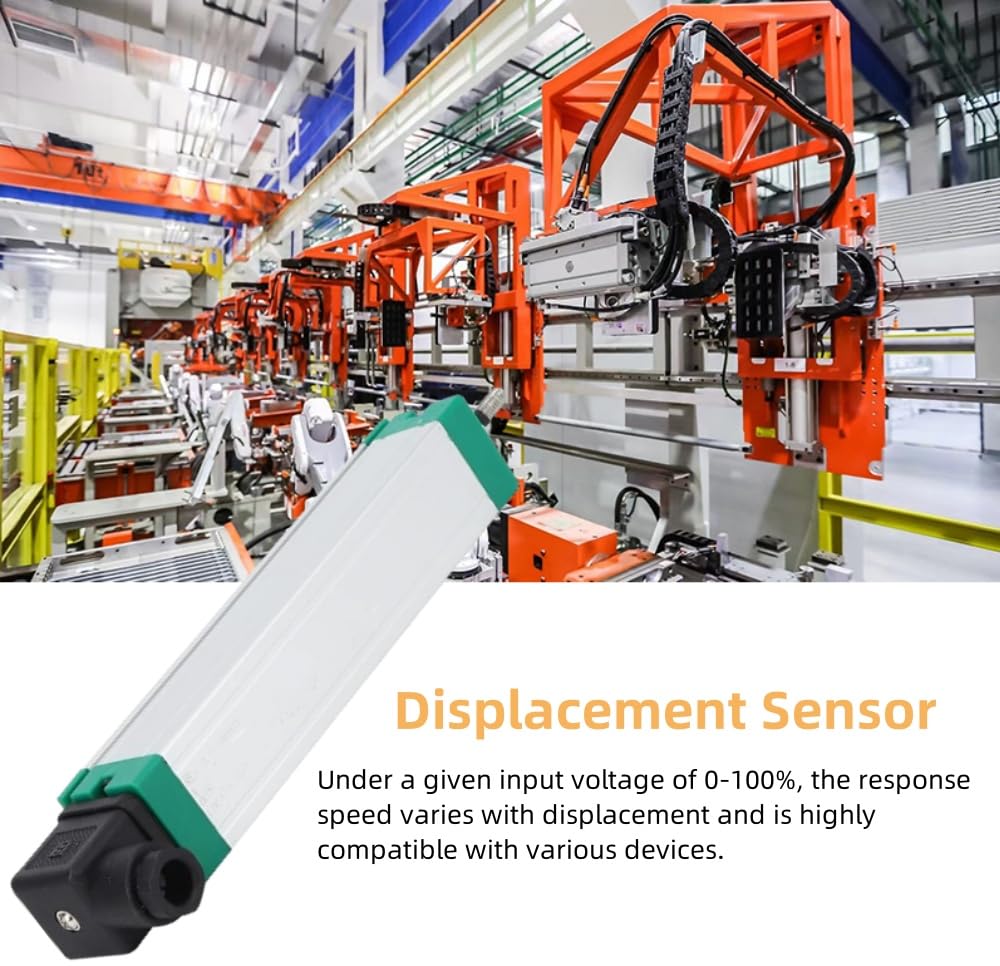

Item Type: Displacement Sensor
Product Material: Stainless steel
Optional : KTC-450/KTC-650
Electrical Stroke: Range + 3mm
Resolution: Infinite uninterrupted analysis
Repeatability: 0.01mm
Normal Working Current of Sliding Brush: ≤10μA
The Maximum Current of Sliding Brush When Causing Fault: 10mA
Maximum Allowable Working Voltage: 42V
Effective Temperature Coefficient Ratio of Output Voltage to Input Voltage: Usually 5ppm / K
Insulation Resistance (500VDC, 50Hz): ≥10MΩ
Insulation Strength (500VAC, 50Hz): ≤100μA
Shell Length (A): Range + 78.5mm
Mechanical Stroke (B): Range + 8mm
Maximum Load of Pull Rod: 50KG
Work Force:
Horizontal Direction: <10N
Vertical Direction: ≤10N
Vibration Resistance Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g
Damper Resistance Standard: 50g, 11ms
Operating Temperature Range: -60 ... + 150 ℃
Life:> 100 × 10 ^ 6 times
Maximum Operating Rate: 10m / S, maximum operating acceleration 10m / s²
Level: The highest IP67 (DIN40500 / IEC529)

Package List:
1 x Displacement Sensor
1 x Plug
3 x Accessory
4 x Screw
ProductSiteLaunchDate : 2024-07-06T09:40:50.001Z
Size : KTC-450
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
