Specification
Brand : BORDSTRACT
BulletPoint1 : High Sensitivity: The contacts inside the Float Switch are made of reed switches, which are extremely sensitive and transmit information to the processor more accurately
BulletPoint2 : Control Range: The action range of the two floats of the double float switch is 10mm. If the demand control range is large, a combination of two float switches can be used, so that there is a large stroke to ensure that the pump will not start frequently
BulletPoint3 : Working Method: The normal water intake process is started by the lower float switch, and the upper float switch stops working. Drainage is activated by the upper float switch and the lower float switch stops working
BulletPoint4 : Wide Range of Applications: Float Switch can be used to control the liquid level of water tanks, pools, troughs, fish tanks, etc. (drainage or water), or as an alarm switch for liquid level up and down
BulletPoint5 : Note: The float switch cannot directly control the solenoid valve or high-power relay, AC contactor, etc., and needs a small relay (such as HH54P) for conversion
ExternallyAssignedProductIdentifier : 9159766532087
IncludedComponents : No

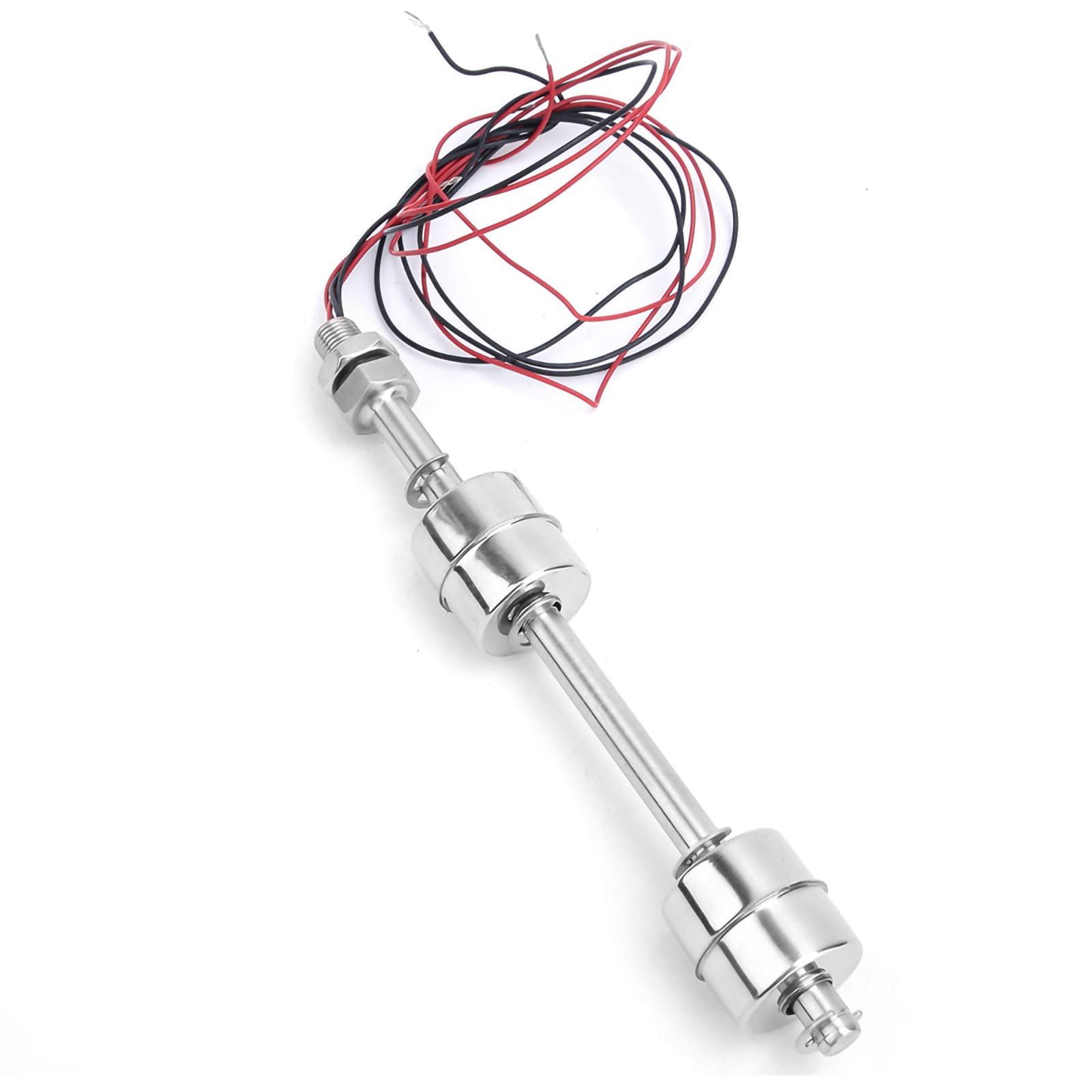

ItemName : BORDSTRACT Float Switch Stainless Steel Double Ball Level Sensor Water Level Controller Sensor Switch for Controling The Liquid Level of The Water Tank, Pool, Sink, Fish Tank(150mm)
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-liquid-level-sensors
Manufacturer : BORDSTRACT
Material : Stainless Steel
ModelName : KIMISSc86efud153
ModelNumber : KIMISSc86efud153
MountingType : Flange Mount
NumberOfItems : 1
OutputType : Current Sinking, 9-32 VDC, 30 ma max
PartNumber : BORDSTRACTg3vpy4b2w1-02
ProductDescription : Features:
The float switch cannot directly control solenoid valves or high-power relays, AC contactors, etc.A small relay(like HH54P) is needed for transition. The double float switch can be used to control the liquid level of the water tank, pool, sink, fish tank, etc. (drain or water), or to make the upper and lower alarm switch of the liquid level. The contacts inside are made of a reed switch with very high sensitivity. The action range of the two floats of the double float switch is 10 mm. If the demand control range is large, two float switch combinations can be used, so that there is a large stroke to ensure that the pump does not start frequently. Normal water intake process activated by the float switch below, and the float switch above stops working. The drain is activated by the float switch above and the lower float switch stops working.
Specification:
Voltage:DC 0~110V
Material:304 Stainless Steel
Size(Floating Body Length):(Optional)
100mm / 3.94in
150mm / 5.91in
200mm / 7.87in
250mm / 9.84in

Package List:
1 x Double Ball Float Switch

ProductSiteLaunchDate : 2022-07-26T01:21:25.390Z
SafetyDataSheetUrl : http://www.gemssensors.com/en/Products/Level/Single-Point-Level-Switches/Capacitive/~/media/GemsNA/InstructionBulletins/Cap-300%20Instruction%20Bulletin.pdf
Size : 150mm
Style : Modern
UnitCount : 1
