Specification
Brand : LDHJBNAC
BulletPoint1 : The level gauge realizes a fully digital and humanized design concept, and Digital Level Meter has complete functions of material/liquid level measurement and control, data transmission and man-machine communication.
BulletPoint2 : The LED Level Meter adopts engineering plastic ABS waterproof shell, the Digital Level Meter shell is small and sturdy, which greatly guarantees the durability of the instrument.
BulletPoint3 : Modular circuit design of Liquid Level Sensor Transmitter, LCD Water Level Sensor strict hardware structure, reasonable layout, and accurate measurement.
BulletPoint4 : Integrated Level Meter is suitable for water and sewage treatment, electric power and LCD Water Level Sensor is mining and other occasions, providing powerful help.
Color : One Color
ExternallyAssignedProductIdentifier : 7302555704598

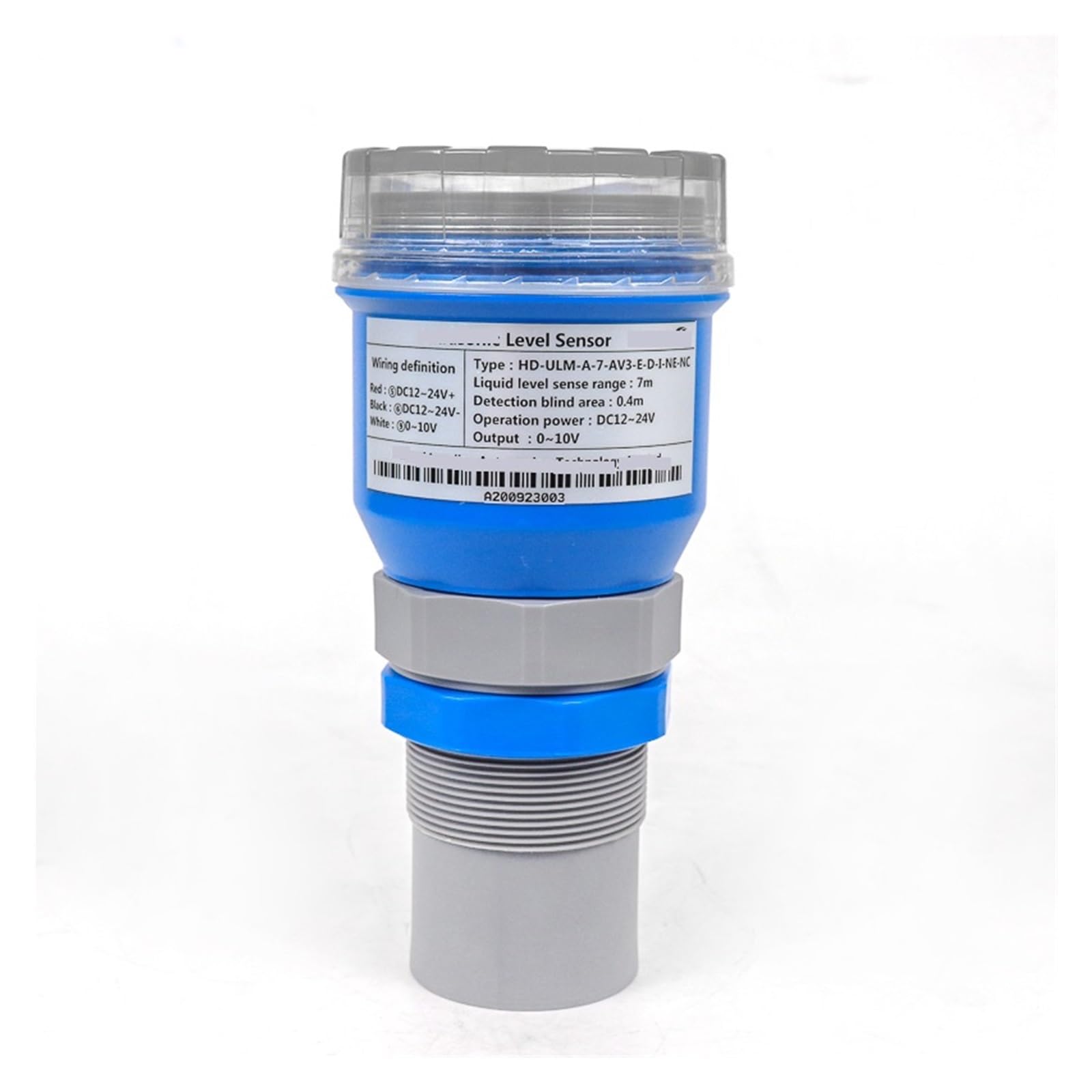

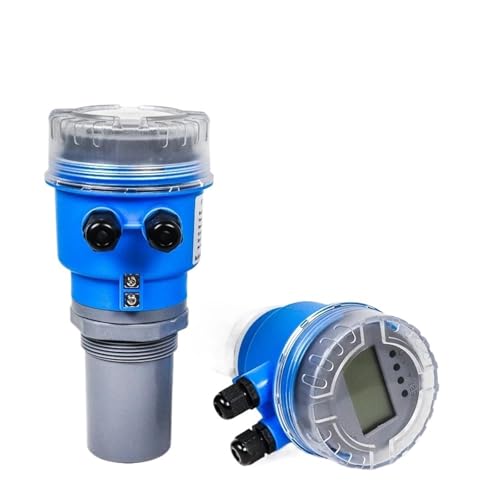

ItemName : LDHJBNAC Ultrasonic Level Meter Tank Level Gauge Liquid Level Meter Water Level Measurement 4-20mA Relay Output(10m Range 4-20mA)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-liquid-level-sensors
Manufacturer : LDHJBNAC
ModelName : LDHJBNAC
ModelNumber : LDHJBNAC
NumberOfItems : 1
PartNumber : LDHJBNAC
ProductDescription : Model
HDL700-B1
HDL700-C1
HDL700-D1
HDL700-B2/C2/D2
Type
Integrated type
Split type
Measuring range (meter)
1m, 2m
Small blind area
5m, 8m, 10m, 15m
Standard Type
20m, 25m, 30m, 40m Max
0.06-40m (Optional)
Blind area
<;0.06-0.15m (Different for ranges)
0.25~2m
(Different for ranges)
0.25~2m
(Different for ranges)
0.3-2m(Different for ranges)
Angle Beam
<;6°
<;10°
<;10°
<;12°
Accuracy
±0.3%F.S
±0.3%F.S
Display
1)No display
2)Display : LCD, LED, OLED(Optional)
LCD , TFT (Optional)
Power
DC12-28V,AC220V(Optional)
Electric connection
PG7
M20*1.5
M20*1.5
PG7,M20*1.5 (Optional)
Process connection
G 1 1/2 (1m,2m )
M60*2 (5m-15m )
DN 80 flange connection (20m-40m) (Optional)
Output
Analog output:0-20mA; 4-20mA; 0-5V; 0-10V
Digital output:RS485 (Mod_bus)
Switch output : PNP/Relay output
Housing material
ABS,nylon,Cast aluminum, SS304 (Optional)
Protection grade
IP65(Customized for IP67, IP68)
IP66(Customized for IP67,IP68)
Explosion-proof
N/A, Explosion-proof (Optional)
Corrosion-proof
N/A, Explosion-proof (Option

==========
Model Number : HDL700-C1

Level range : 0-20m
Output signal : 4-20mA, rs485, relay
Power supply : 24vdc, 220vac
ProductSiteLaunchDate : 2024-07-30T08:30:22.152Z
Size : 10m range 4-20mA
UnitCount : 1
