Specification
AgeRangeDescription : adult
Brand : Pedersean
BulletPoint : Liquid Level Sensors
BulletPoint1 : 【APPLICATION】 -Developed for monitoring the liquid level in basins, wells, water towers, containers, tanks, etc.
BulletPoint2 : 【FUNCTION】 - You can set the drainage mode and water supply mode.
BulletPoint3 : 【PARAMETER】 -Adjustable sensitivity by a button . Adjustable action time delay .
BulletPoint4 : 【WITH LED DISPLAY】 -The relay status is indicated by an LED.
BulletPoint5 : 【GUARANTEE】 -The quality of our products is guaranteed and can be used without hesitation. Questions are asked during use, do not hesitate to us.
Color : One Color
ExternallyAssignedProductIdentifier : 7500060868020
ExternallyAssignedProductIdentifier1 : 0013227088928
ExternallyAssignedProductIdentifier2 : 013227088928
ItemName : Level Control Relay, GRL8-02 AC/DC 24V-240V 10A Liquid Level Relay Water Level Controller for Monitoring Liquid Level in Pool, Well, Water Tower, Reservoirs, Tanks, etc
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-liquid-level-sensors
Manufacturer : Pedersean
Material : polyamide
ModelName : EAWZOUWUJ
ModelNumber : EAWZOUWUJ
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : EAWZOUWUJ
ProductDescription : Specification:
Model: GRL8-02
Function: 2 or 1 level control mode
Power terminal: A1-A2
Rated power supply voltage: AC/DC 24-240V
Power consumption: Max. 2VA
Sensitivity adjustment range: 5-100kΩ
Supply voltage tolerance: -15%; +10%
Voltage in electrodes: Max. AC 5V
Current in electrodes: Max. 0.1mA
Response time: Max. 400ms
Electrode cable allows distributed capacitance : 800nF-100nF
Electrode cable length: 100m
Action delay time: 0.1s-10s
Setting accuracy: 10%
Output parameters: 1 x SPDT, 10A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Power indicator: Green LED
Output indication: Red LED
Mechanical life: 1x107
Electrical life: 1x106
Reset time: Max 200ms
Working temperature: -20~55
Mounting method: 35mm DIN rail
Mounting altitude: 2000m
Wiring capability: 1x2.5mm2 or 2x1.5mm2

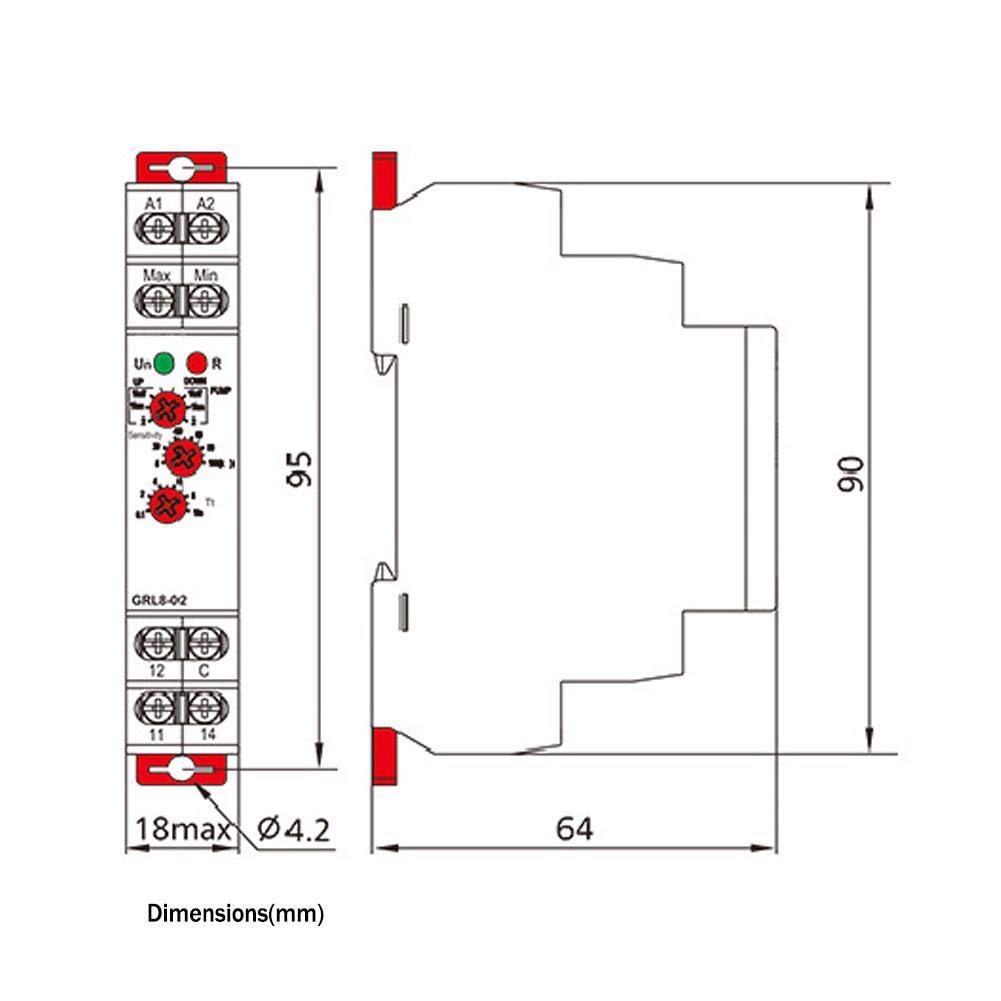

Dimensions: 90*18*64mm / 3.54*0.71*2.52in
Weight: Approx. 82g/2.9oz
Package List:
1 * Liquid Level Control Relay
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. allow slight error due to manual measurement. Thanks for your understanding.
ProductSiteLaunchDate : 2025-05-05T02:59:06.140Z
Size : One Size
UnitCount : 1
UnspscCode : 46171600
