Specification
Brand : ANGGREK
BulletPoint : AD637 RMS Detection Module Peak Voltage Detection Output DC Voltage With Low Pass Filter Function Demo Board Module
BulletPoint1 : POWERFUL FUNCTION: Logarithmic power meter can detect the power of ‑55dBm to 0dBm RF signal, thus converting the RF to DC voltage output.
BulletPoint2 : EASY INSTALLATION: The logarithmic detector is compact, simple and fast wiring, saving time and effort, and long service life.
BulletPoint3 : WIDE USES: Logarithmic detectors can be widely used in RF detection, power measurement, and environmental field strength detection.
BulletPoint4 : MAIN APPLICATIONS: Logarithmic power meter is made of AD8317 chip material for RF power detection.
BulletPoint5 : LARGE DETECTION RANGE: The larger the amplitude or power of the RF signal, the higher the output voltage, and the output voltage is proportional to the logarithm of the input amplitude, thus expanding the dynamic range of the detection
IncludedComponents : No

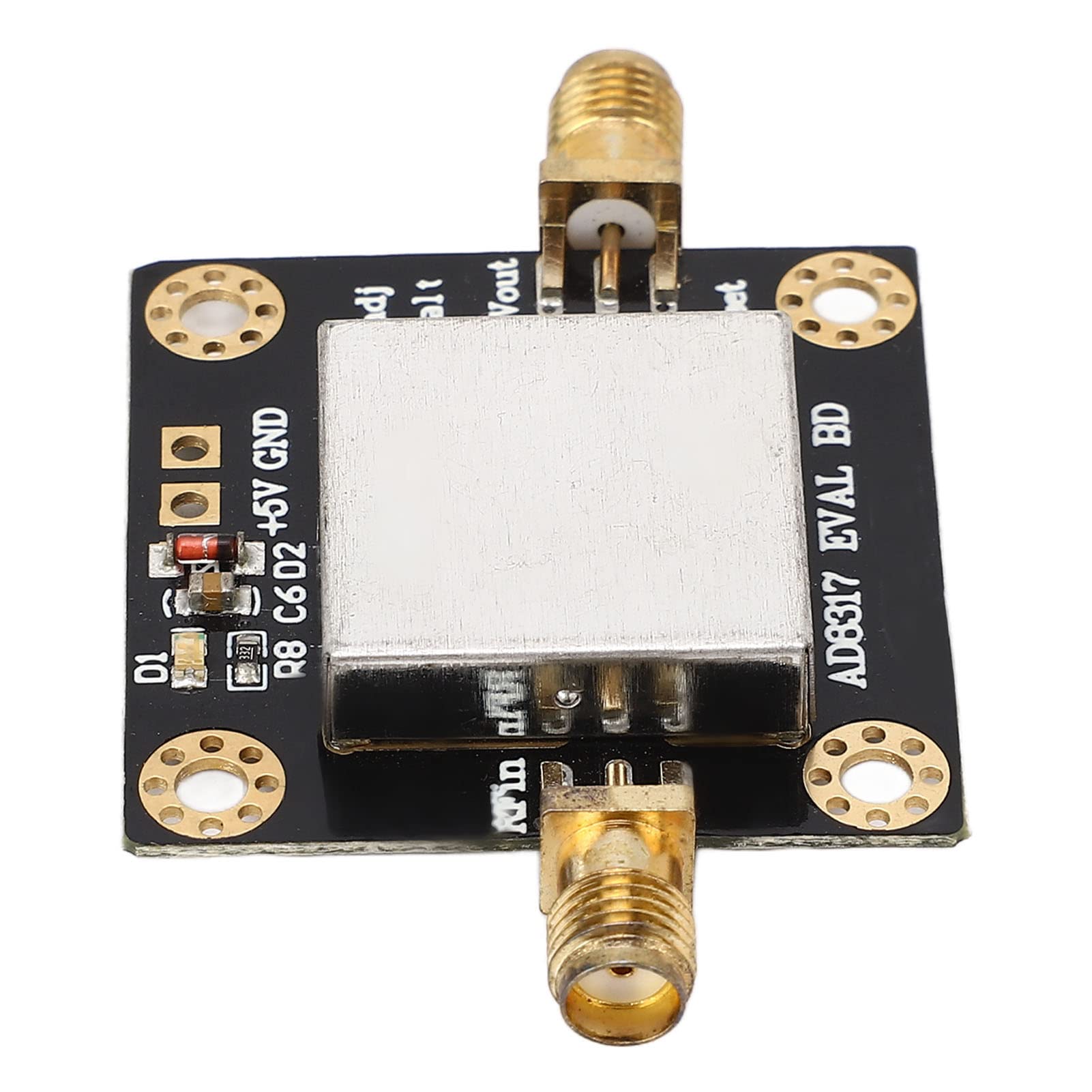

ItemName : Logarithmic Detector Module DC 3.3-5V Performance - 55-0dBm AD8317 Logarithmic Power Meter for Base Station
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 7 centimeters
ItemPackageDimensions_Width : 4 centimeters
ItemTypeKeyword : logarithmic-amplifiers
Manufacturer : ANGGREK
ModelName : Anggrek32r6en0xvd
ModelNumber : ANGGREK32r6en0xvd
NumberOfItems : 1
PartNumber : ANGGREK32r6en0xvd
ProductDescription : 1. LARGE DETECTION RANGE: The larger the amplitude or power of the RF signal, the higher the output voltage, and the output voltage is proportional to the logarithm of the input amplitude, thus expanding the dynamic range of the detection signal.
2. POWERFUL FUNCTION: Logarithmic power meter can detect the power of ‑55dBm to 0dBm RF signal, thus converting the RF to DC voltage output.
3. EASY INSTALLATION: The logarithmic detector is compact, simple and fast wiring, saving time and effort, and long service life.
4. WIDE USES: Logarithmic detectors can be widely used in RF detection, power measurement, and environmental field strength detection.
5. MAIN APPLICATIONS: Logarithmic power meter is made of AD8317 chip material for RF power detection.

Spec:
Item Type: Logarithmic Detector Module
Material: PCB
Input Impedance: 50 Ohms
Output Impedance: 50 Ohms (Video Impedance)
Operating Frequency Freq: 1MHz - 10GHz
Input to Output Ratio: -22mV/dBm
Input Dynamic Range: -60-5 dBm (High Linear Dynamic Range: -55-0 dBm)
Applications:
RF transmitter PA setpoint control and level monitoring
Power monitoring base stations in radio line transmitters
RSSI measurement in WLAN, WiMAX and

How to Use:
Install and use

Package List:
1 x Logarithmic Detector Module
ProductSiteLaunchDate : 2024-09-04T14:30:28.074Z
UnspscCode : 46171600
