Specification
AgeRangeDescription : adult
Brand : Walfront
BulletPoint1 : Display Format Of Decoded Data--Support binary, decimal, hexadecimal, ASCII and hexadecimal data, easy to observe and analyze
BulletPoint2 : Intuitive Interface--Intuitive and concise setting interface, conditions include transition , high and low , or a combination of the two, etc.
BulletPoint3 : Support Linkage--The waveform window and the analysis result window can be linked, which is convenient for finding waveforms and data in various ways
BulletPoint4 : Flexible And Easy To Use--The sampling data can be exported to .txt, .cSV, .bin and other format files, which can be opened, viewed or edited with other software, such as using Excel to open csv to find and organize data, and using Matlab to bin for further analysis, etc.
BulletPoint5 : Threshold Adjustable--Compatible with various standards, such as 5VTTL, 5 CMOS, 3.3 V CMOS, 3.0V CMOS, 2.5VCM0S, 1.8 V CMOS, 1.5 V CMOS, 1.2 V CMOS, 0.9V CMOS, etc.
Color : One Color
CompatibleDevices : Laptop
ConnectorType1 : Mini USB
ConnectorType2 : DB 9
ExternallyAssignedProductIdentifier : 3002985876479

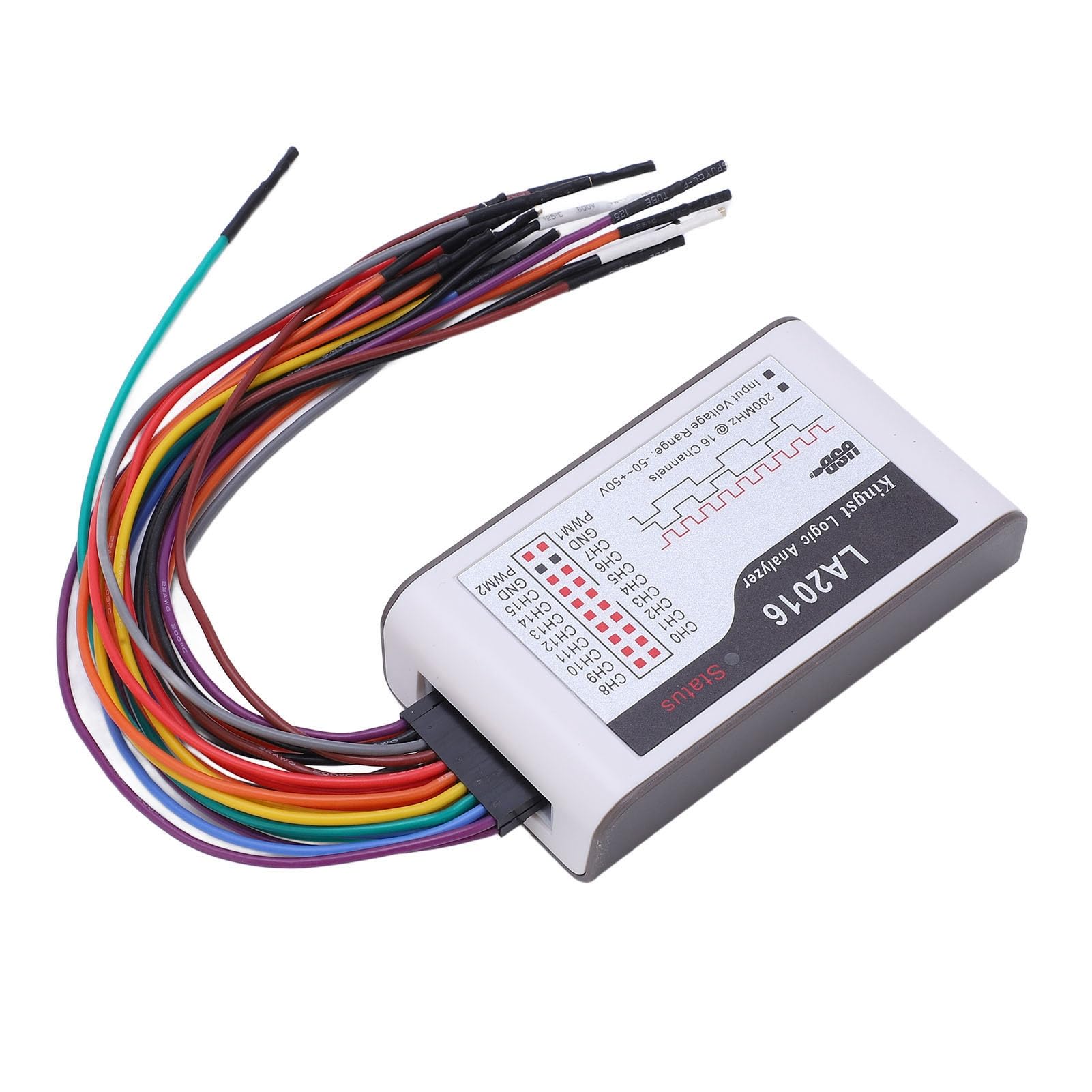

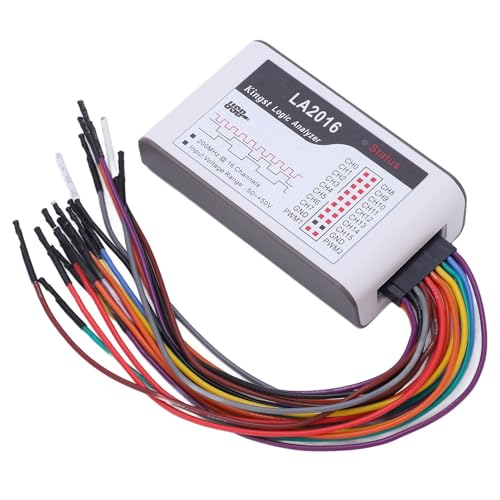

ItemName : 16 Channels Logic Analyzer Logic Analyzer Logic Analyzer USB Logic Analyzer with USB Cable Oscilloscope Analyzer with 200M Sampling Rate Adjustable Threshold ‑50V to 50V LA2016
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 26 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : logic-analyzers
Manufacturer : WALFRONT
ModelName : Walfront91qznr2au6
ModelNumber : WALFRONT91qznr2au6
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : WALFRONT91qznr2au6
ProductDescription : 1. SUPPORT LINKAGE: The waveform window and the analysis result window can be linked, which is convenient for finding waveforms and data in various ways
2. FLEXIBLE AND EASY TO USE: The sampling data can be exported to .txt, .cSV, .bin and other format files, which can be opened, viewed or edited with other software, such as using Excel to open csv to find and organize data, and using Matlab to bin for further analysis, etc.
3. DISPLAY FORMAT OF DECODED DATA: Support binary, decimal, hexadecimal, ASCII and hexadecimal data, easy to observe and analyze
4. SIMPLE INTERFACE: Intuitive and concise setting interface, conditions include transition , high and low level, or a combination of the two, etc.
5. THRESHOLD ADJUSTABLE: Compatible with various level standards, such as 5VTTL, 5 CMOS, 3.3 V CMOS, 3.0V CMOS, 2.5VCM0S, 1.8 V CMOS, 1.5 V CMOS, 1.2 V CMOS, 0.9V CMOS, etc.

Spec:
Item Type: Logic Analyzer
Model Number: LA2016
Number of Channels: 16
Supported Modes: Normal mode (the data is collected and then transferred to the computer, the sampling rate is higher); Streaming mode (the collected data is transmitted to the computer at the same time, the sampling time is longer)
Maximum Sampling Rate: Normal Mode: 200M (16 channels); Streaming Mode: 100M (3 channels), 50M (6 channels), 20M (16 channels)
Highest Frequency Can Be Collected: 40MHz
Minimum Captureable Pulse Width: 12.5ns
Built in Hardware Memory Capacity: 1Gbits
Maximum Hardware Storage Depth (ensure the achievable sampling depth): 50M
Maximum Compression Sampling Depth(not guaranteed to reach the sampling depth): 10G (lossless compression sampling mode, effectively improve the depth when collecting lower frequency s)
Maximum Sampling Depth In Streaming Mode: 100G (the actual depth may be limited by the memory capacity of the computer, each level transition of each channel needs to occupy 5Bytes of
ProductSiteLaunchDate : 2023-11-24T17:03:00.339Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43201400
WarrantyDescription : 1 Year Manufacturer
