Brand : Ruitutedianzi
BulletPoint1 : For DTL, TTL and CMOS
BulletPoint2 : Instant Indication
BulletPoint3 : High Frequescy Response
BulletPoint4 : Handy, Quick and Easy
BulletPoint5 : Pulse Memory Function
Color : Grey
ExternallyAssignedProductIdentifier : 4712027086641

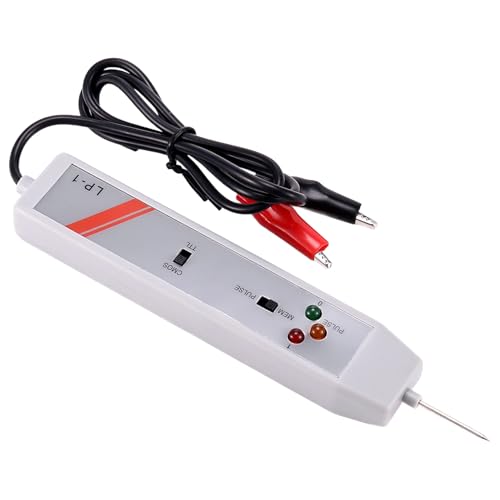

ItemName : Ruitutedianzi Logic Probe High Frequency Response DTL TTL CMOS Pulse Memory Logic Tester LP-1
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 26 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : logic-analyzers
Manufacturer : Ruitutedianzi
NumberOfItems : 1
PartNumber : 427287
ProductDescription : Ruitutedianzi How to use:
1. Connect RED clip to + terminal and BLACK clip to - terminal of the power source of the circuit under . The supply voltage should not exceed 18V DC

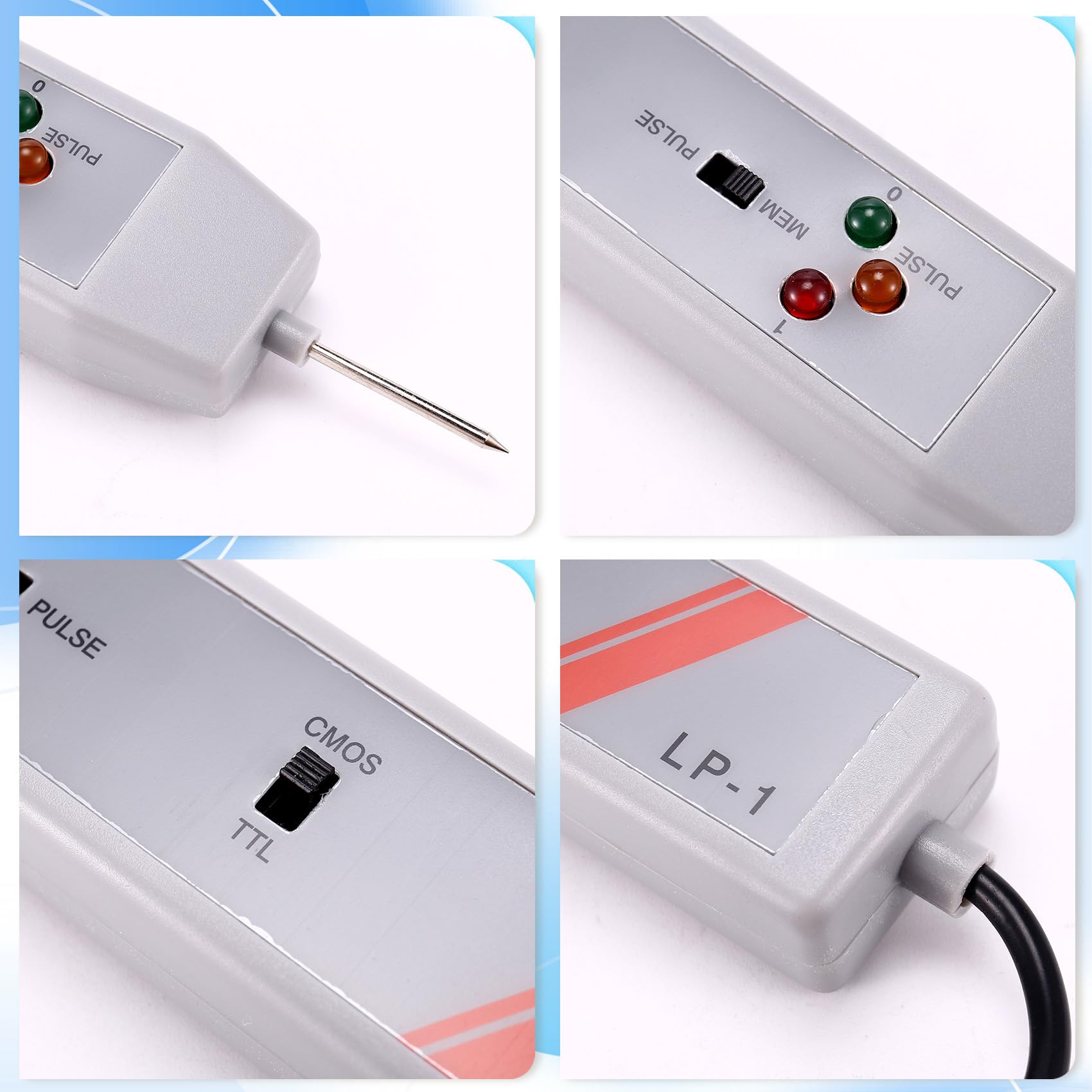

2. For TTL and DTL, set the upper select switch to the side marked "TIL"
For CMOS, set the upper select switch to the side marked "CMOS", contact the probe pin to the point to be tested. The LEDs indicate its logic states:
A. ALL LEDs OFF -High impedance
B. RED LED ON - High State (1)
C. Green LED ON - low State (0)
D. Orange LED ON - Pulse
3. For deteching and storing pulse or level transition, set lower select switch to side marked "PULSE" first. Contact the probe pin to the poin to be tested. The LEDs indicate is basic state. Then set the lower select switch to side marked "", The orange LED light when any pulse or level transition is detected. The pulse direction, in comparison with the original basic, state, cabe determined. After use, reset logic probe by setting the lower select switch back to side marked "PULSE"
Colour: grey
Material: plastic
Size: 14 x 3cm

Package Contents:
1 x Logic Probe
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
