Specification
Brand : Walfront
BulletPoint : Equipped with automatically selectable reference resistances Compatible with the Analog Discovery 3, Analog Discovery 2, Analog Discovery (Legacy) Allows auto-scaling
BulletPoint1 : USB INTERFACE-- Using USB interface, the installation and use method is simple, the is convenient, and it can meet a variety of usage needs.

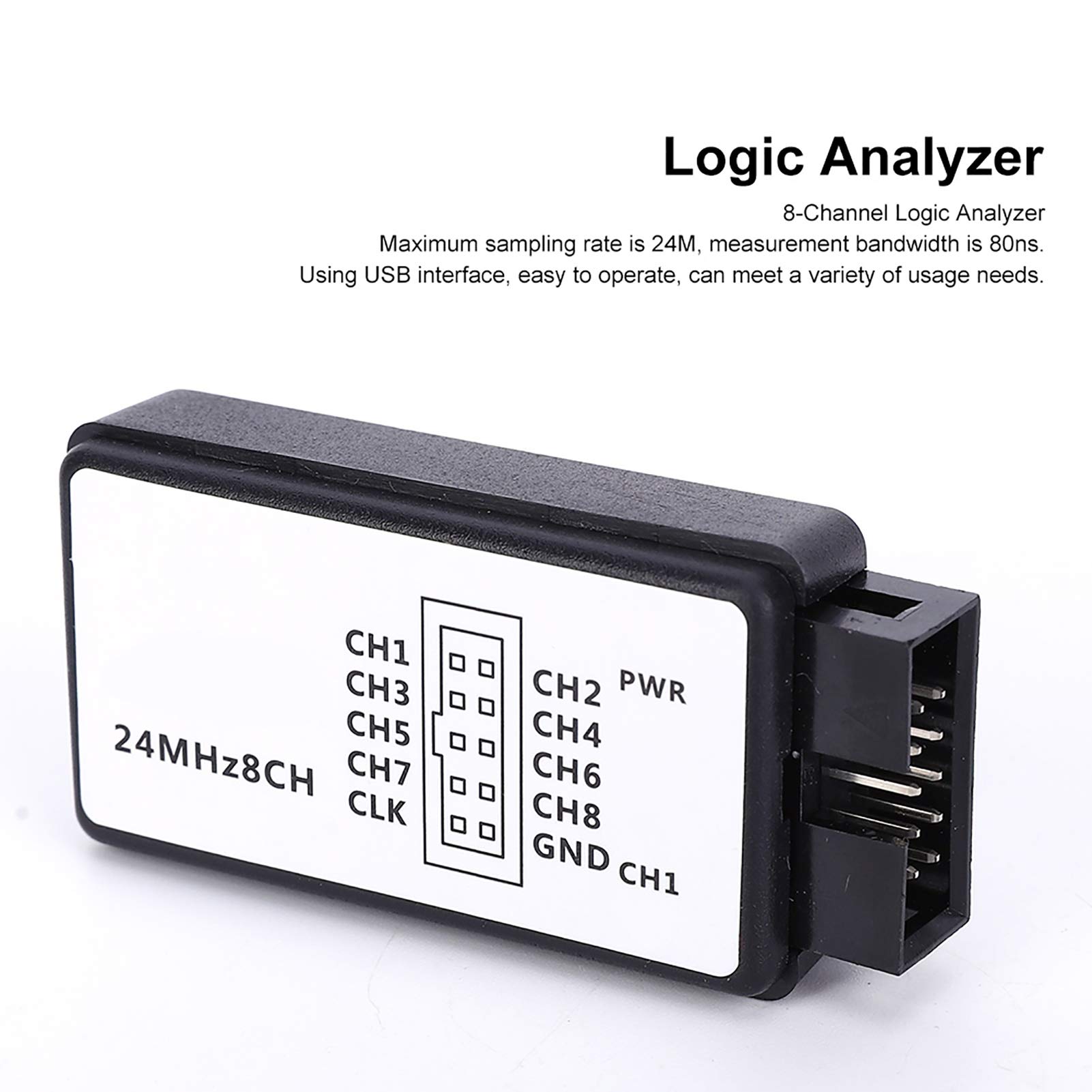

BulletPoint2 : 8 CHANNEL LOGIC ANALYZER-- 8-channel logic analyzer with a maximum sampling rate of 24M and a measurement bandwidth of 80ns.
BulletPoint3 : GOOD PERFORMANCE-- Professional manufacturing, stable performance, can provide convenient, intuitive and powerful analysis functions.
BulletPoint4 : Mini logic analyzer, made of materials for long lifesspan, with good durability and stability.
BulletPoint5 : WIDE APPLICATION-- Small size, widely used in automotive electronics, communications, power, computers and other industries.
IncludedComponents : 1
ItemName : USB Logic Analyzer Device Portable Logic Analyzer 5MHz LA1002 8CH 8 Channel Logic Analyzer Device with USB Cable and Jumper Wire for Automotive Electronics
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 16 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : logic-analyzers
Manufacturer : WALFRONT
ModelName : Walfront7e0obihrqg
ModelNumber : WALFRONT7e0obihrqg
NumberOfItems : 1
PartNumber : WALFRONT7e0obihrqg
ProductDescription : Spec:
Item Type: Logic Analyzer
Material: ABS
Weight: Approx. 43g / 1.5oz
Product Number LA1002
Measurement Input Parameters Number of Channels 8
Maximum Sampling Rate 24M at 8CH
Measurement Bandwidth 5MHz
Minimum Captureable Pulse Width 80ns
Maximum Sampling Depth 10G/Channel
Input Voltage Range 0V - +5V
Equivalent Input Impedance 12kΩ, 12PF
Threshold Voltage ≤S1.0V Low Level, ≥22.0V High Level
PWM Output Parameters Number of Channels No
Output Frequency Range No
Cycle Adjustment Step No
Pulse Adjustment Step No
The Output Voltage No
Output Impedance No
Power Supply Parameters Power Supply Interface USB2.0/3.0
Stand-By Current 50mA
Maximum Working Current 80mA
Computer Software Supporting Agreement Support for UART/RS-232/485, for I2C, for SPI, for CAN, for DMX512, for HDMI CEC,for 12S/PCM, for JTAG, for LIN, for Manchester, for Midi, for Modbus, 1-Wirefor UNI/O, for SDIO, for SMBuS, for SWD, USB1.1, for PS/2 mouse and keyboard,for NEC infrared, parallel port
Support Operating System Support for Windows XP(32bit), for Window Vista/7 (32bit/64bit), for OS, for Linux
Product Size Approx. 56x27x14mm / 2.2x1.1x0.6in

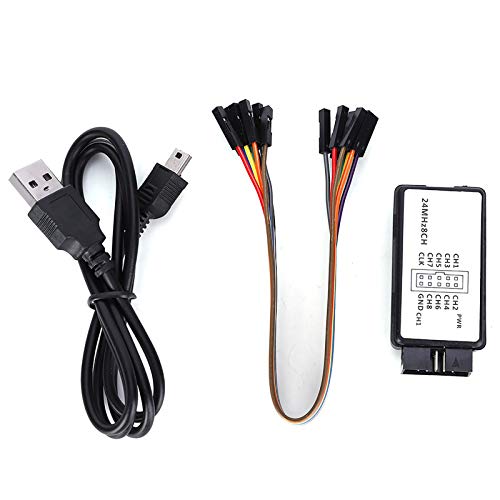

Package List:
1 x Logic Analyzer
1 x USB Cable
1 x Jumper Wire

Notice:
1.Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
