Specification
Brand : LYXC
BulletPoint1 : 【Magnetic Drill Press】Input Power: 1500W; Max. Cutting Diameter: 2-3/8''(60mm); Max. Cutting Depth: 3''(75mm); Shank Type: MT3; Stroke:170mm; Load Speed: 250/450rpm; Magnetic Force: 15000N.
BulletPoint2 : 【Magnetic Drill Press】The Mohs 3# Spindle improves the rigidity of spindle so that the drill bit or cutter works steadily. Sliding bidirectional guide rail makes motor height adjusted freely according to different needs.
BulletPoint3 : 【Magnetic Drill Press】Adjustable Speed: Multi-Speed Transmission with H7 Precision Transmission Gear and Lubrication System. 20000N Strong Magnetic Base: Stepper starting technology, longer magnetic seat life, do not affect the continous operation, inner insulation protective adhesive, external copper mold protection.
BulletPoint4 : 【Annular Cutter Set】Include 6pcs Annular Cutters: 9/16'', 5/8'', 11/16'', 13/16'', 15/16'', 1-1/16''+1pc Pilot Pin 6.354/5.3*102mm; Weldon Shank: 3/4''; Cutting Depth: 2''.
BulletPoint5 : 【Annular Cutter Set】Made of M2AL High Speed Steel with complete and advanced heat treatment technology to ensure product quality;Geometric Blade Design with good centering and chipping resistance.

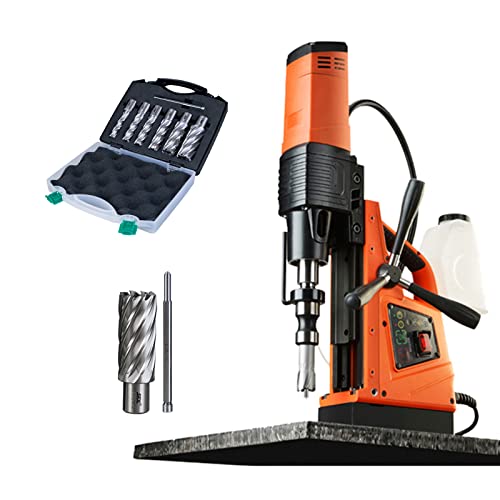

ItemName : LYXC 1500W Magnetic Drill Press & M2AL HSS Annular Cutter set 6pcs 2'' Cutting Depth with 1pc Pilot Pin
ItemPackageQuantity : 1
ItemTypeKeyword : power-magnetic-drill-presses
Manufacturer : Luoyang SFX Industrial Technology Co.,Ltd
Material : High Speed Steel
Material1 : High Speed Steel
Material2 : Alloy Steel
MaximumPower : 1500 watts
ModelNumber : 5434C
NumberOfItems : 1
PartNumber : 5434CKL
PowerSourceType : AC
ProductDescription :

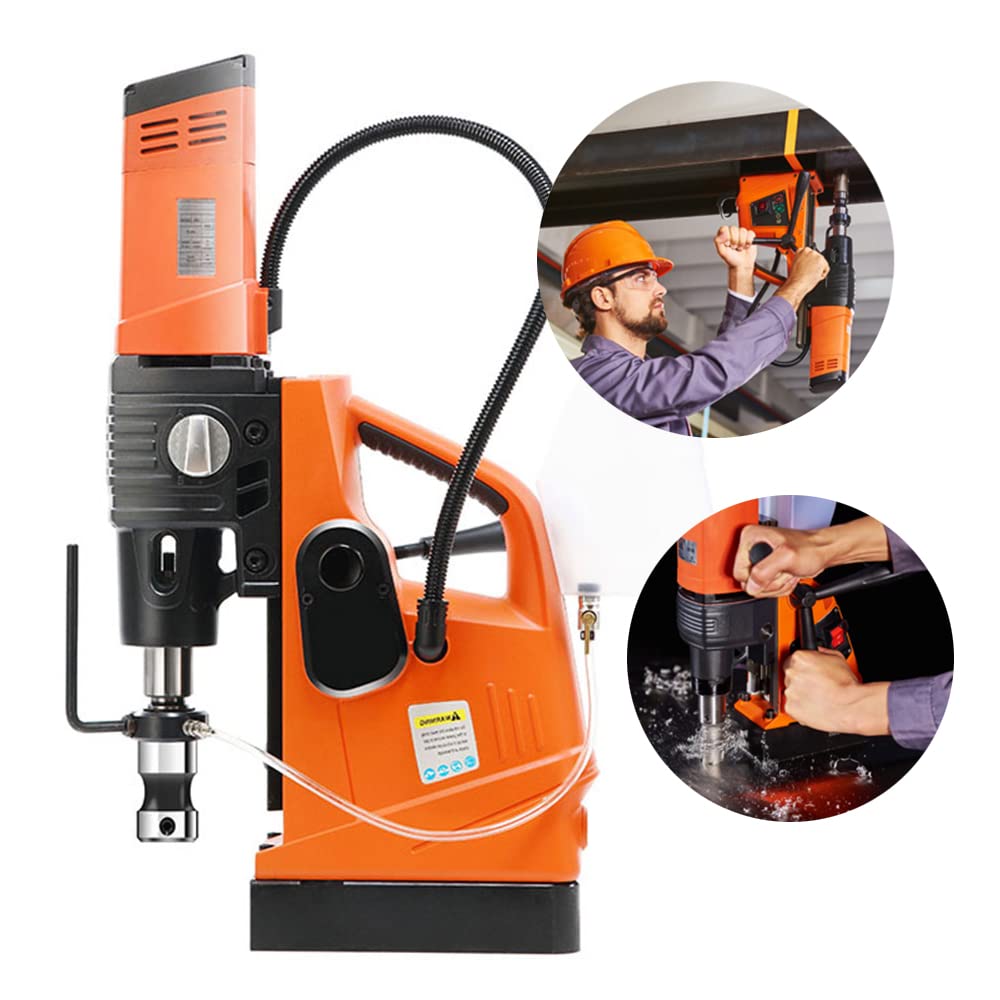

Magnetic Drill Press

Safety in Use: High current alarm lamp, insufficient suction alarm lamp. When facing ultra high current, the motor shuts down automatically. With human engineering handle and safety belt to prevent accidentsby sudden power outages in operation.

Widely Used in Steel structure, shipbuilding, equipment manufacturing, equipment installation, bridge engineering, wind power generation, drilling rig, electric power construction, railway manufacturing,etc.

Technical Parameters

Stroke: 170mm

Magnetic base size: 210mm*100mm*45mm

Input power: 1500W

The max cutting depth: 75mm (3”)

The max cutter capacity diameter: Φ60mm (2-3/8'')

The max diameter of twist drill: Φ31.5mm ( 1-1/4" )

The min cutter depth: 10mm

Magnetic adhesion: 15000N

Motor can adjust the height to: 130mm

The type of shank: MT3

Total weight: 19.0kg

Load speed: 250/450rpm

Countersunk drilling: 10-50mm

Annular Cutter Set 6pcs Features

Fully Automatic CNC Machine Tool Processing with advanced and precise testing equipment.

Applicable Materials: wood, various steel materials,steel plate, aluminum, brass, cast iron, structural steel, alloy steel, stainless steel of lower BHN.,etc.

High-speed Steel Plate Drill Bit, Suitable for Structural Steel, Alloy Steel, Stainless Steel, etc.

Selected Super-hard HSS Materials: It is made of Super-hard HSS, Which is Strong, Wear-resistant, Efficient, and Has a Long Service Life.

ProductSiteLaunchDate : 2022-03-10T01:44:16.600Z
Speed : 450 rpm
Style : MD60
UnitCount : 1
